Telescopic self levelling crane fork with internal springs
MBRA-ECrane fork with internal spring automatic balancing
The MBRA-E telescopic crane fork represents an advanced solution for the efficient lifting and handling of pallets of various sizes. Its distinctive features include an adjustable height telescopic system, automatic balancing, and adjustable tines for greater versatility. Main features:
Application sectors:
Finish Type:
Painted
Galvanized
Versions available

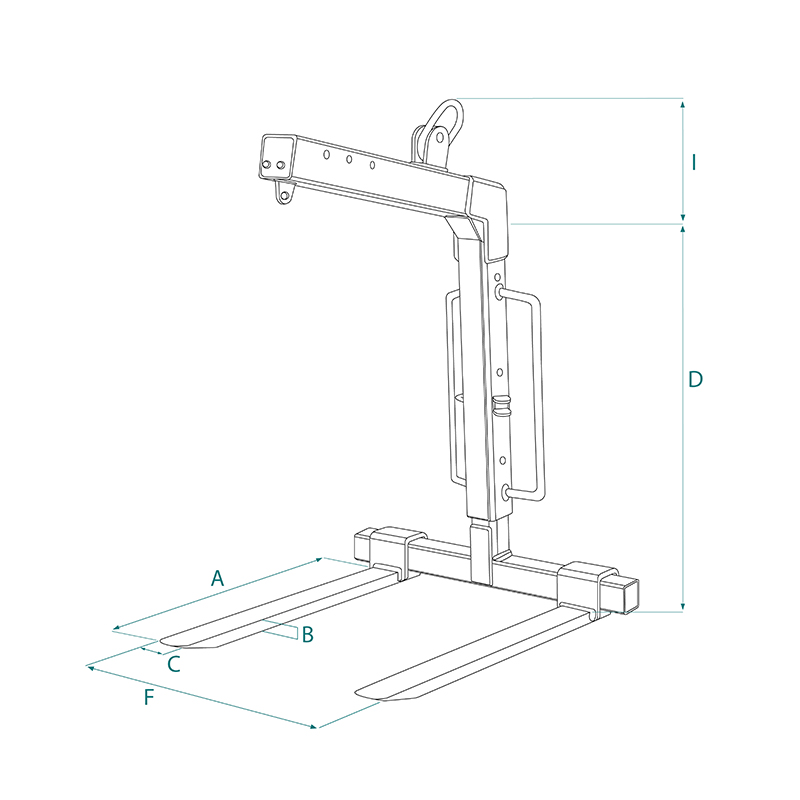

Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | N. bracci | N. persone | Pubblica nel sito web | Products | Custom price lists | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBRA-15E | 1500 | 155 | 1000 | 30 | 90 | 1155-1700 | 350-950 | 600 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
MBRA-20E | 2000 | 170 | 1000 | 35 | 100 | 1155-1700 | 370-965 | 600 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
MBRA-25E | 2500 | 220 | 1000 | 40 | 90 | 1280-1825 | 405-980 | 600 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
MBRA-30E | 3000 | 255 | 1000 | 35 | 120 | 1280-1825 | 365-980 | 600 | 1 |

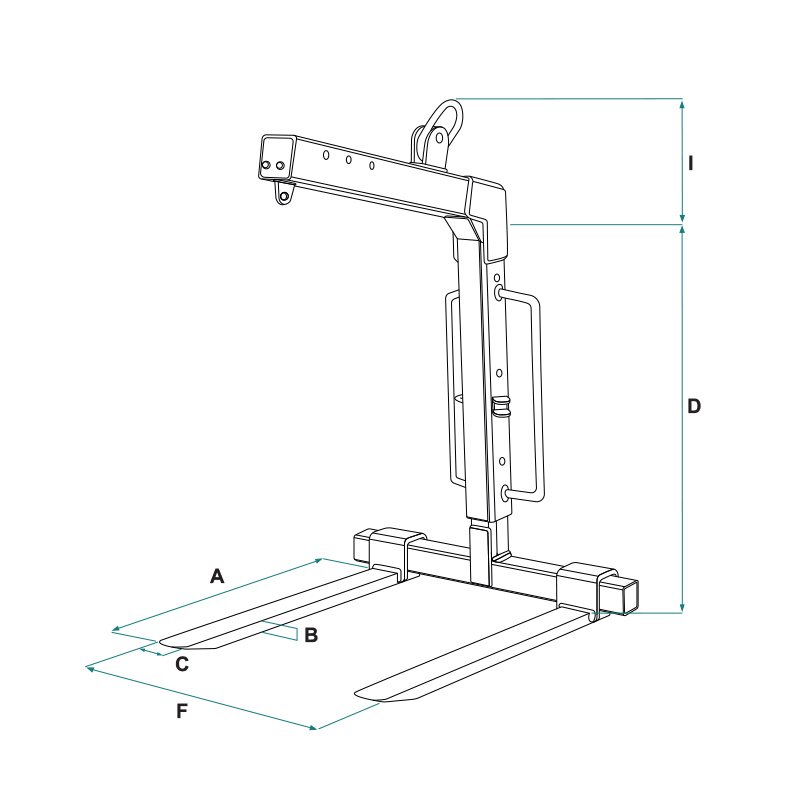

Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | N. bracci | N. persone | Pubblica nel sito web | Products | Custom price lists | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBRA-15E | MBRA-15E | 1500 | 155 | 1000 | 30 | 90 | 1155-1700 | 350-950 | 600 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
MBRA-20E | MBRA-20E | 2000 | 170 | 1000 | 35 | 100 | 1155-1700 | 370-965 | 600 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
MBRA-25E | MBRA-25E | 2500 | 220 | 1000 | 40 | 90 | 1280-1825 | 405-980 | 600 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
MBRA-30E | MBRA-30E | 3000 | 255 | 1000 | 35 | 120 | 1280-1825 | 365-980 | 600 | 1 |
