Crane forks
Lowered self balancing crane fork with adjustable tines
MBCrane fork with automatic spring balancing
The crane fork features a practical adjustment up to the desired opening and a functional and manageable closure using a special handwheel. The MB model is compact in size, always smaller than the load to be handled. The springs ensure automatic weight balancing and optimal stability during lifting operations.
Application sectors:
Finish Type:
Painted
Versions available

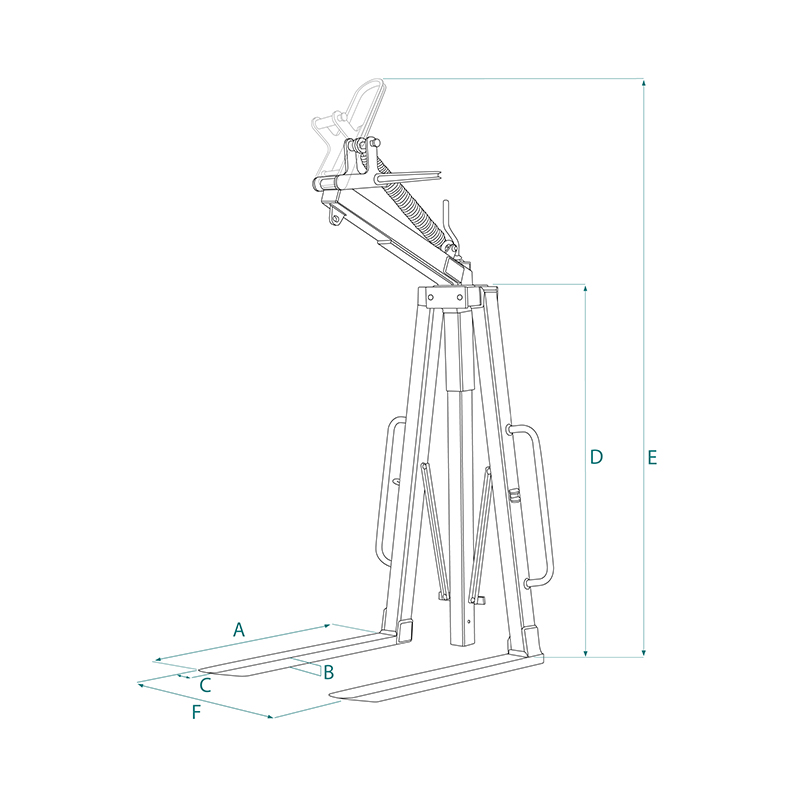

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MB-06 | 600 | 90 | 1000 | 25 | 80 | 1100 | 2400 | 400-1600 | ||||||||||||||||||||||||||||||||||||||||||
MB-10 | 1000 | 95 | 1000 | 25 | 90 | 1100 | 2400 | 400-1600 | ||||||||||||||||||||||||||||||||||||||||||
MB-15 | 1500 | 110 | 1000 | 30 | 90 | 1100 | 2400 | 400-1600 | ||||||||||||||||||||||||||||||||||||||||||
MB-20 | 2000 | 125 | 1000 | 35 | 100 | 1100 | 2400 | 400-1600 |

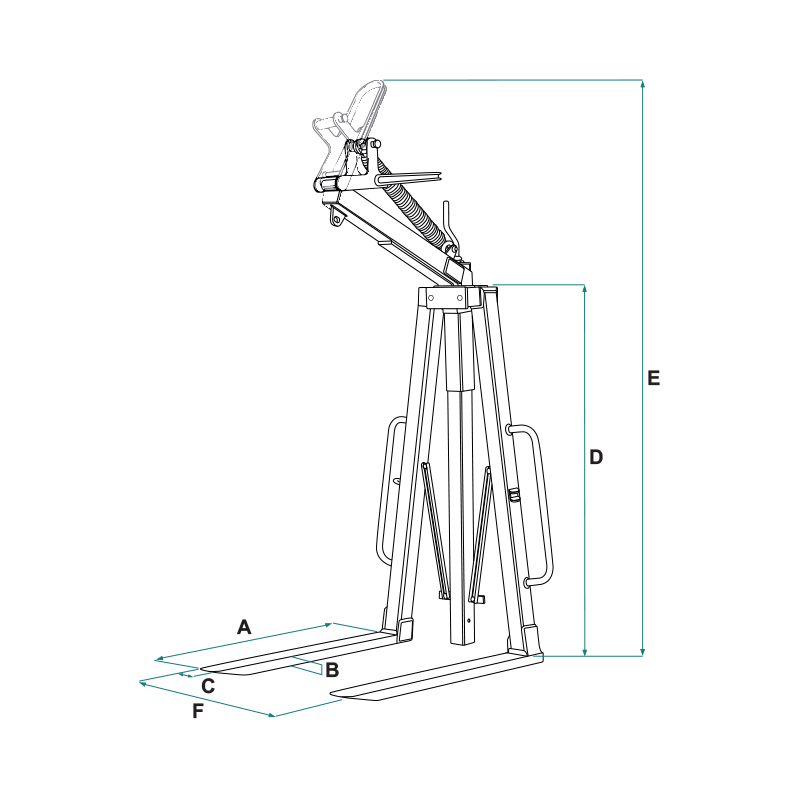

Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MB-06 | MB-06 | 600 | 90 | 1000 | 25 | 80 | 1100 | 2400 | 400-1600 | ||||||||||||||||||||||||||||||||||||||||||
MB-10 | MB-10 | 1000 | 95 | 1000 | 25 | 90 | 1100 | 2400 | 400-1600 | ||||||||||||||||||||||||||||||||||||||||||
MB-15 | MB-15 | 1500 | 110 | 1000 | 30 | 90 | 1100 | 2400 | 400-1600 | ||||||||||||||||||||||||||||||||||||||||||
MB-20 | MB-20 | 2000 | 125 | 1000 | 35 | 100 | 1100 | 2400 | 400-1600 |
