Crane forks
Galvanized manual balancing crane fork telescopic in height
MBR-ZNGalvanized adjustable height crane fork with manual balancing
The MBR-ZN telescopic crane fork with galvanized finish represents an advanced solution for the efficient lifting and handling of pallets of various sizes. The galvanization offers numerous advantages in terms of corrosion resistance and durability, making the crane fork suitable even for harsher environmental conditions. Key Features:
Application sectors:
Versions available

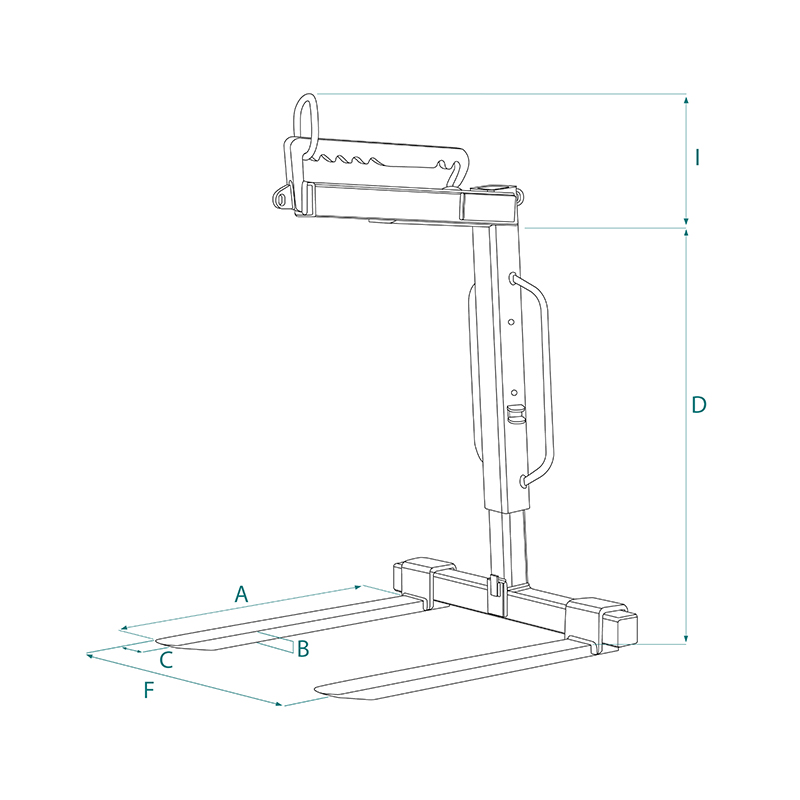

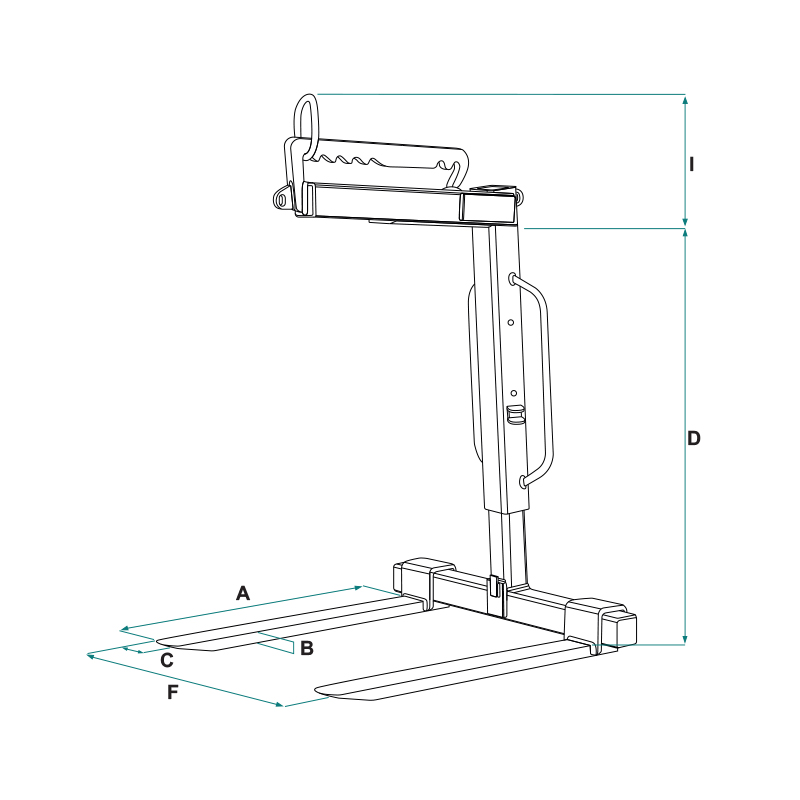

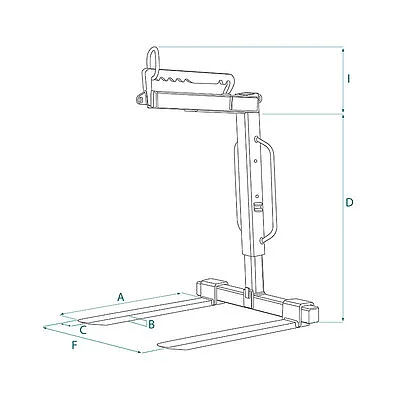

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBR-10ZN | 1000 | 115 | 1000 | 25 | 90 | 1000-1450 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-15ZN | 1500 | 150 | 1000 | 30 | 90 | 1000-1600 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-20ZN | 2000 | 165 | 1000 | 35 | 100 | 1200-1800 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-25ZN | 2500 | 220 | 1000 | 40 | 90 | 1200-1800 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-30ZN | 3000 | 230 | 1000 | 35 | 120 | 1200-1800 | 350-1000 | 350 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBR-10ZN | MBR-10ZN | 1000 | 115 | 1000 | 25 | 90 | 1000-1450 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-15ZN | MBR-15ZN | 1500 | 150 | 1000 | 30 | 90 | 1000-1600 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-20ZN | MBR-20ZN | 2000 | 165 | 1000 | 35 | 100 | 1200-1800 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-25ZN | MBR-25ZN | 2500 | 220 | 1000 | 40 | 90 | 1200-1800 | 350-1000 | 350 | ||||||||||||||||||||||||||||||||||||||||||
MBR-30ZN | MBR-30ZN | 3000 | 230 | 1000 | 35 | 120 | 1200-1800 | 350-1000 | 350 |
