Crane forks
Aluminum pallet fork with manual balancing
MBR-ALUAluminum crane fork with manual balancing
The aluminum crane fork with adjustable tines and manual balancing represents a lightweight and versatile solution for lifting and handling loads. The main features of this model include:
Application sectors:
Versions available

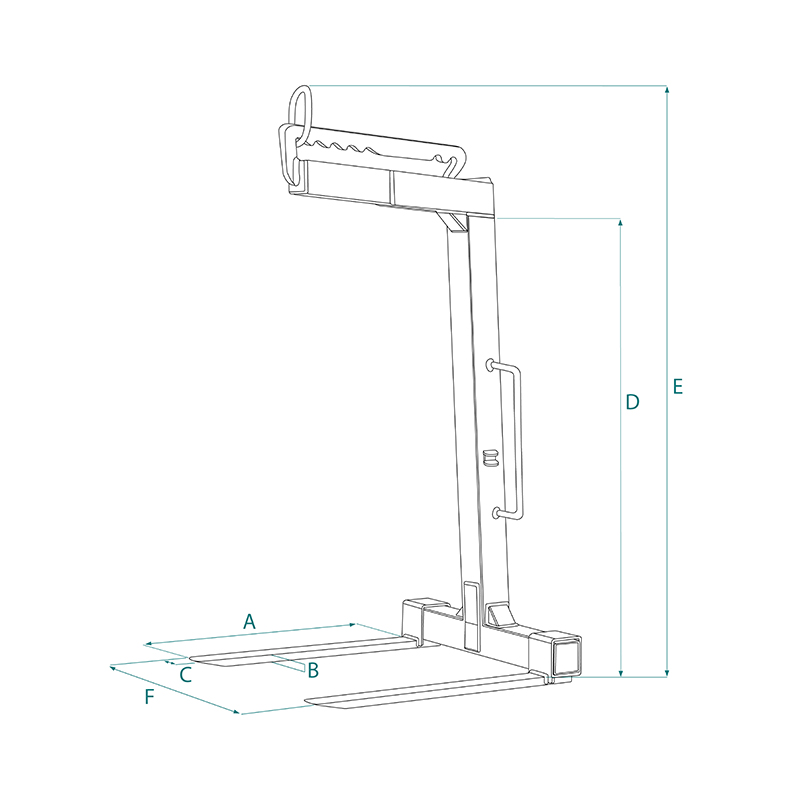

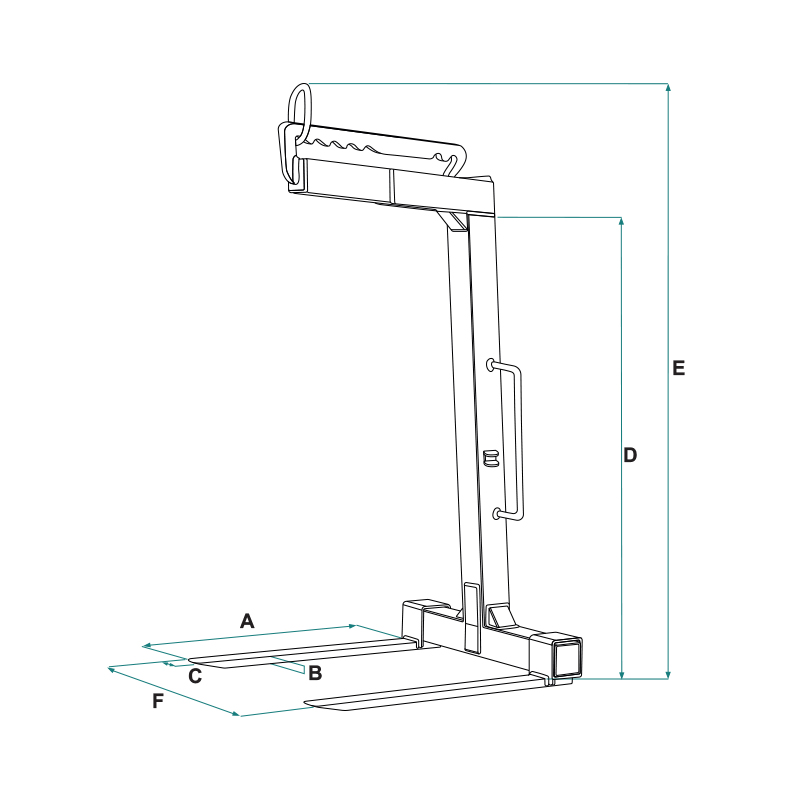

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBR-06ALU | 600 | 60 | 1000 | 35 | 100 | 1630 | 2150 | 400-900 | ||||||||||||||||||||||||||||||||||||||||||
MBR-10ALU | 1000 | 80 | 1000 | 35 | 100 | 1630 | 2150 | 400-900 | ||||||||||||||||||||||||||||||||||||||||||
MBR-15ALU | 1500 | 105 | 1000 | 30 | 90 | 1630 | 2150 | 400-900 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBR-06ALU | MBR-06ALU | 600 | 60 | 1000 | 35 | 100 | 1630 | 2150 | 400-900 | ||||||||||||||||||||||||||||||||||||||||||
MBR-10ALU | MBR-10ALU | 1000 | 80 | 1000 | 35 | 100 | 1630 | 2150 | 400-900 | ||||||||||||||||||||||||||||||||||||||||||
MBR-15ALU | MBR-15ALU | 1500 | 105 | 1000 | 30 | 90 | 1630 | 2150 | 400-900 |
