Storage and handling equipment
Drop bottom opening skips 2 door
CL-FASheet metal container with double hinged bottom and central lever
The sheet metal container with double hinged bottom represents a versatile and reliable solution for the collection and disposal of waste and scrap. Its meticulous construction makes it the ideal product for professional use in a wide range of industrial sectors. Handling is carried out using a forklift or a four-arm chain.
Application sectors:
Industry
Finish Type:
Painted
Versions available

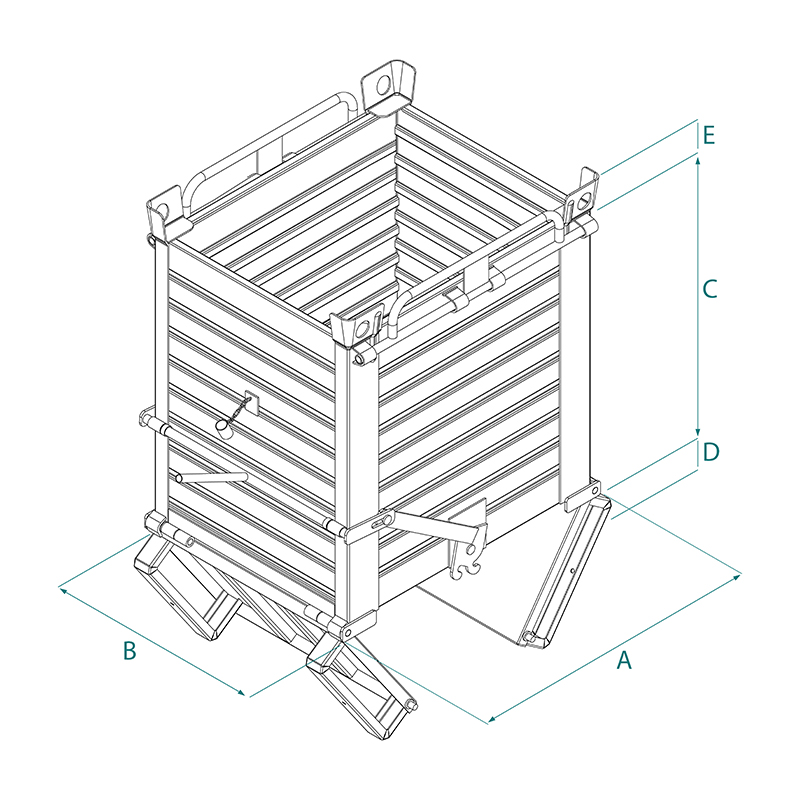

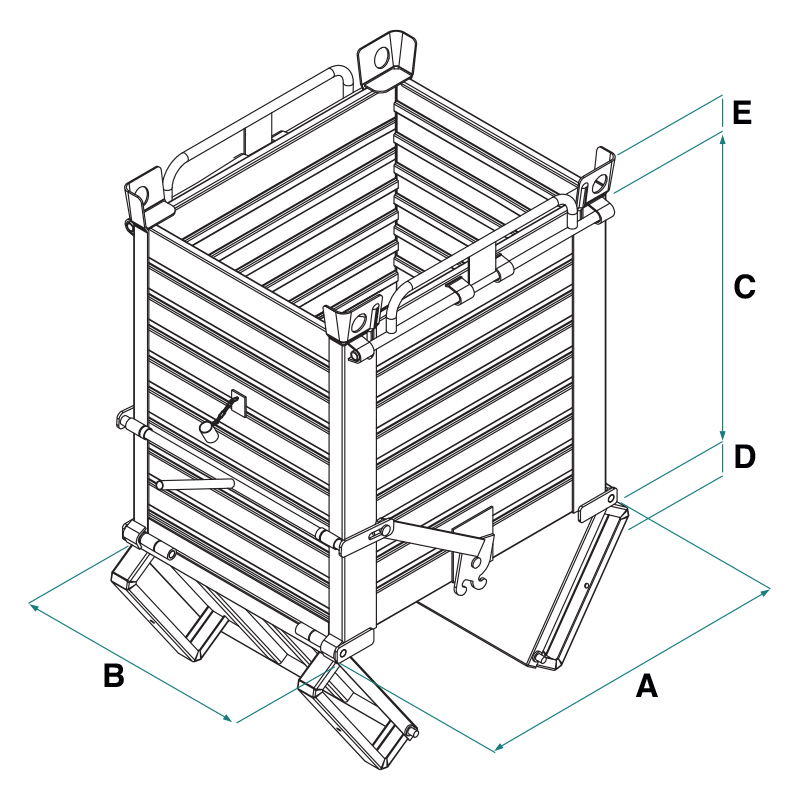

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-FA50 | 2000 | 500 | 125 | 1000 | 800 | 650 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA80 | 2000 | 800 | 145 | 1000 | 800 | 1000 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA99 | 2000 | 1000 | 160 | 1000 | 800 | 1250 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA100 | 2000 | 1000 | 210 | 1500 | 1000 | 650 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA150 | 2000 | 1500 | 250 | 1500 | 1000 | 1000 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA200 | 2000 | 2000 | 350 | 2000 | 1000 | 1000 | 150 | 110 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-FA50 | CL-FA50 | 2000 | 500 | 125 | 1000 | 800 | 650 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA80 | CL-FA80 | 2000 | 800 | 145 | 1000 | 800 | 1000 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA99 | CL-FA99 | 2000 | 1000 | 160 | 1000 | 800 | 1250 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA100 | CL-FA100 | 2000 | 1000 | 210 | 1500 | 1000 | 650 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA150 | CL-FA150 | 2000 | 1500 | 250 | 1500 | 1000 | 1000 | 150 | 110 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| CL-FA200 | CL-FA200 | 2000 | 2000 | 350 | 2000 | 1000 | 1000 | 150 | 110 | 1 |
