Concrete buckets
Remote controlled concrete bucket with rubber hose
BCE-ROctagonal concrete bucket with rubber hose and remote-controlled opening
Explore the BCE-R model, an octagonal concrete bucket equipped with a central discharge and a guillotine valve controlled via radio remote. This model is commonly used in large construction sites and in the prefabrication sector.
Application sectors:
Finish Type:
Painted
Versions available

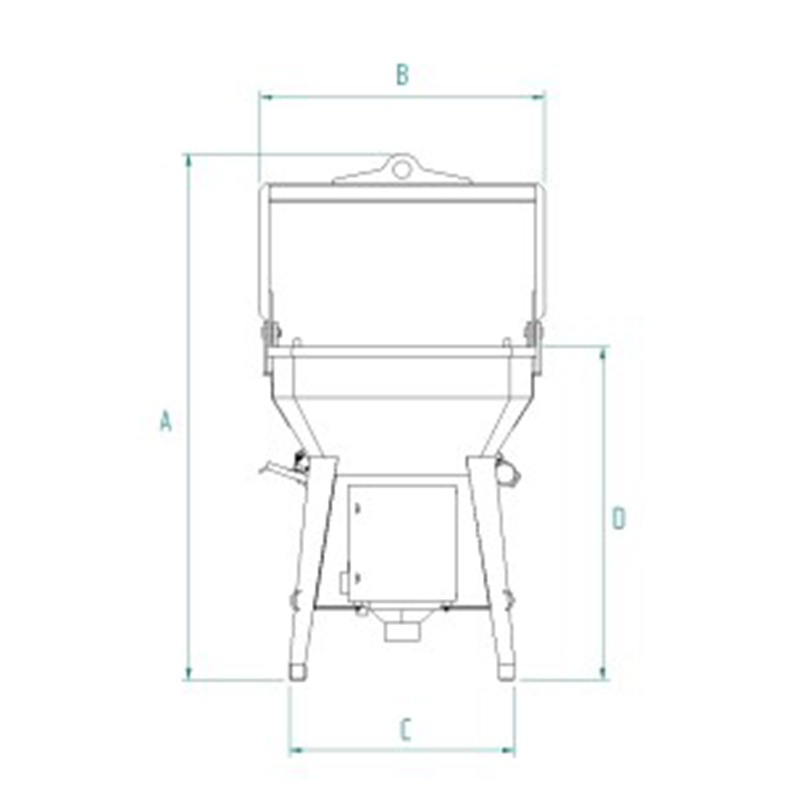

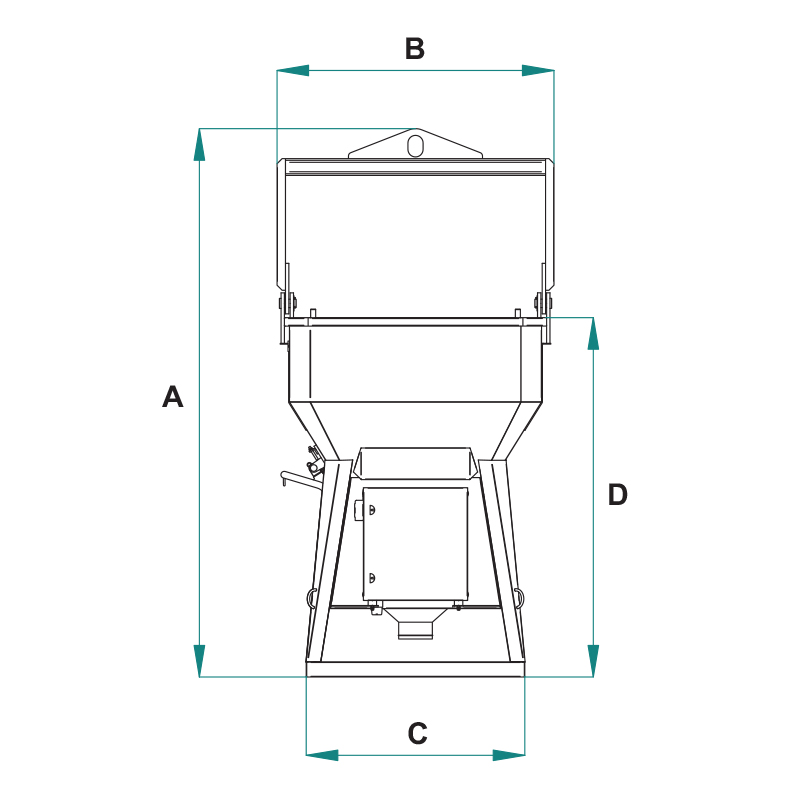

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCE-80R | 2080 | 800 | 495 | 2710 | 1360 | 1200 | 1615 | |||||||||||||||||||||||||||||||||||||||||||
BCE-99R | 2600 | 1000 | 595 | 2807 | 1360 | 1200 | 1712 | |||||||||||||||||||||||||||||||||||||||||||
BCE-125R | 3250 | 1250 | 640 | 2908 | 1360 | 1200 | 1885 | |||||||||||||||||||||||||||||||||||||||||||
BCE-150R | 3900 | 1500 | 725 | 3048 | 1560 | 1300 | 1925 | |||||||||||||||||||||||||||||||||||||||||||
BCE-175R | 4550 | 1750 | ||||||||||||||||||||||||||||||||||||||||||||||||
BCE-200R | 5200 | 2000 | 750 | 3258 | 1560 | 1300 | 2135 | |||||||||||||||||||||||||||||||||||||||||||
BCE-250R | 6500 | 2500 | 880 | 2008 | 1695 | 1700 | 1927 | |||||||||||||||||||||||||||||||||||||||||||
BCE-300R | 7800 | 3000 | 930 | 2183 | 1695 | 1700 | 2102 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCE-80R | BCE-80R | 2080 | 800 | 495 | 2710 | 1360 | 1200 | 1615 | |||||||||||||||||||||||||||||||||||||||||||
BCE-99R | BCE-99R | 2600 | 1000 | 595 | 2807 | 1360 | 1200 | 1712 | |||||||||||||||||||||||||||||||||||||||||||
BCE-125R | BCE-125R | 3250 | 1250 | 640 | 2908 | 1360 | 1200 | 1885 | |||||||||||||||||||||||||||||||||||||||||||
BCE-150R | BCE-150R | 3900 | 1500 | 725 | 3048 | 1560 | 1300 | 1925 | |||||||||||||||||||||||||||||||||||||||||||
BCE-175R | BCE-175R | 4550 | 1750 | ||||||||||||||||||||||||||||||||||||||||||||||||
BCE-200R | BCE-200R | 5200 | 2000 | 750 | 3258 | 1560 | 1300 | 2135 | |||||||||||||||||||||||||||||||||||||||||||
BCE-250R | BCE-250R | 6500 | 2500 | 880 | 2008 | 1695 | 1700 | 1927 | |||||||||||||||||||||||||||||||||||||||||||
BCE-300R | BCE-300R | 7800 | 3000 | 930 | 2183 | 1695 | 1700 | 2102 |
