Concrete buckets

Conical concrete bucket with bottom discharge and forklift pockets

C-ST

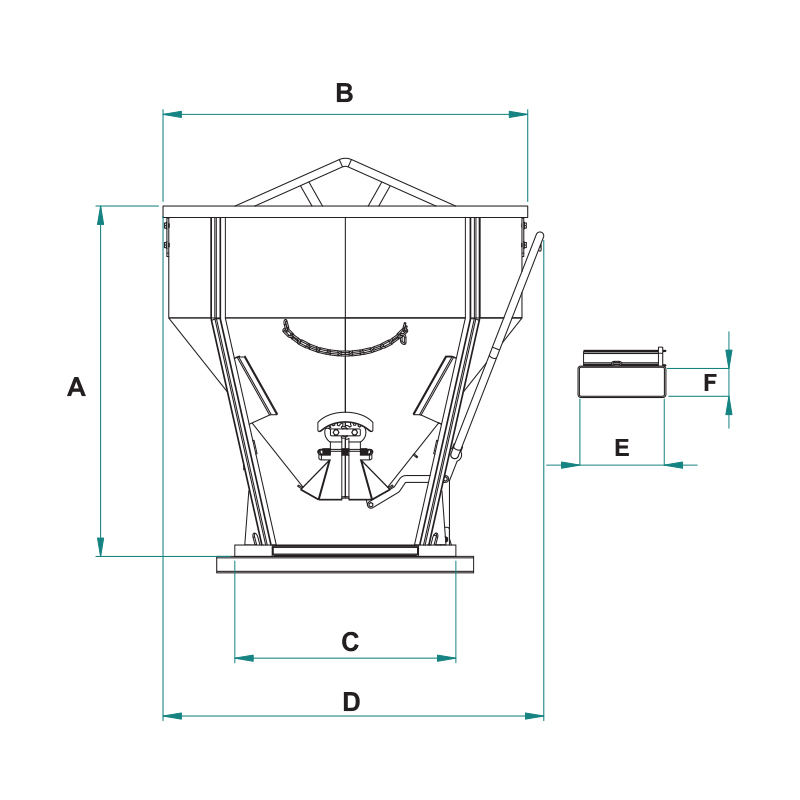

Conical concrete bucket with central discharge, forkliftable base and lever opening

The C-ST model, characterized by a central discharge, ensures precise and controlled dosing through its lever-operated opening, guaranteeing high-quality and safe concrete pouring throughout the process. A distinctive feature of this model is its sturdy fork base (internal section 174x74h mm), which allows the bucket to be lifted and moved both with a forklift or telescopic handler and with a construction crane through the lifting arc. Available in various sizes and capacities, the C-ST model adapts to the diverse needs of the construction site, ensuring flexibility and versatility. Its intuitive design facilitates usage, ensuring high operational efficiency and optimal results on site. Each bucket is built and tested according to stringent standards of UNI EN ISO 12100, UNI EN 13854, ISO
Application sectors:
Finish Type:
Painted
Versions available
Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
C-15ST 390 150 55 620 920 750 1050 174 74
C-20ST 520 200 60 700 920 750 1050 174 74
C-25ST 650 250 65 780 920 750 1050 174 74
C-30ST 780 300 70 860 920 750 1050 174 74
C-35ST 910 350 75 940 920 750 1050 174 74
C-40ST 1040 400 85 890 1050 880 1200 174 74
C-50ST 1300 500 95 1010 1050 880 1200 174 74
C-60ST 1560 600 125 1130 1050 880 1200 174 74
C-80ST 2080 800 160 1180 1250 750 1450 174 74
C-99ST 2600 1000 180 1360 1250 750 1450 174 74
Cod. Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
C-15ST C-15ST 390 150 55 620 920 750 1050 174 74
C-20ST C-20ST 520 200 60 700 920 750 1050 174 74
C-25ST C-25ST 650 250 65 780 920 750 1050 174 74
C-30ST C-30ST 780 300 70 860 920 750 1050 174 74
C-35ST C-35ST 910 350 75 940 920 750 1050 174 74
C-40ST C-40ST 1040 400 85 890 1050 880 1200 174 74
C-50ST C-50ST 1300 500 95 1010 1050 880 1200 174 74
C-60ST C-60ST 1560 600 125 1130 1050 880 1200 174 74
C-80ST C-80ST 2080 800 160 1180 1250 750 1450 174 74
C-99ST C-99ST 2600 1000 180 1360 1250 750 1450 174 74
