Crane forks
Manual balancing pallet fork
MBCRCrane fork with manual balancing, low model
Our MBCR model is a crane fork that is easily used in truck cranes due to its limited height clearance. It also features a functional and manageable closure lock via a specific handwheel.
Application sectors:
Construction
Lifting
Finish Type:
Painted
Versions available

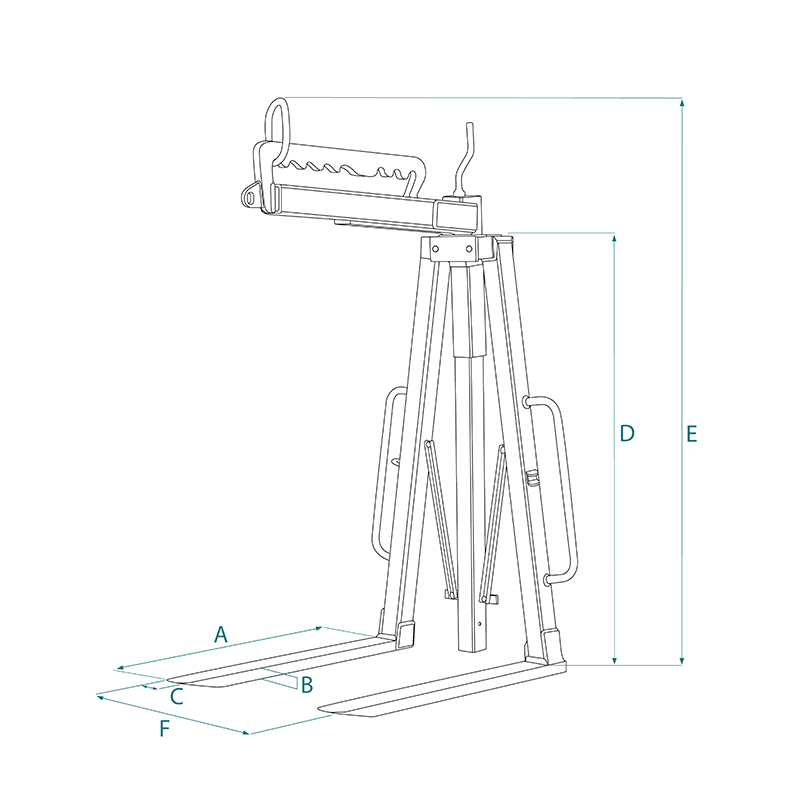

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBCR-10 | 1000 | 110 | 1000 | 25 | 90 | 1100 | 1600 | 340-1400 | ||||||||||||||||||||||||||||||||||||||||||
| MBCR-15 | 1500 | 120 | 1000 | 30 | 90 | 1100 | 1600 | 340-1400 | ||||||||||||||||||||||||||||||||||||||||||
| MBCR-20 | 2000 | 140 | 1000 | 35 | 100 | 1100 | 1600 | 340-1400 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBCR-10 | MBCR-10 | 1000 | 110 | 1000 | 25 | 90 | 1100 | 1600 | 340-1400 | ||||||||||||||||||||||||||||||||||||||||||
| MBCR-15 | MBCR-15 | 1500 | 120 | 1000 | 30 | 90 | 1100 | 1600 | 340-1400 | ||||||||||||||||||||||||||||||||||||||||||
| MBCR-20 | MBCR-20 | 2000 | 140 | 1000 | 35 | 100 | 1100 | 1600 | 340-1400 |
