Crane forks
Lowered not adjustable self balancing crane fork

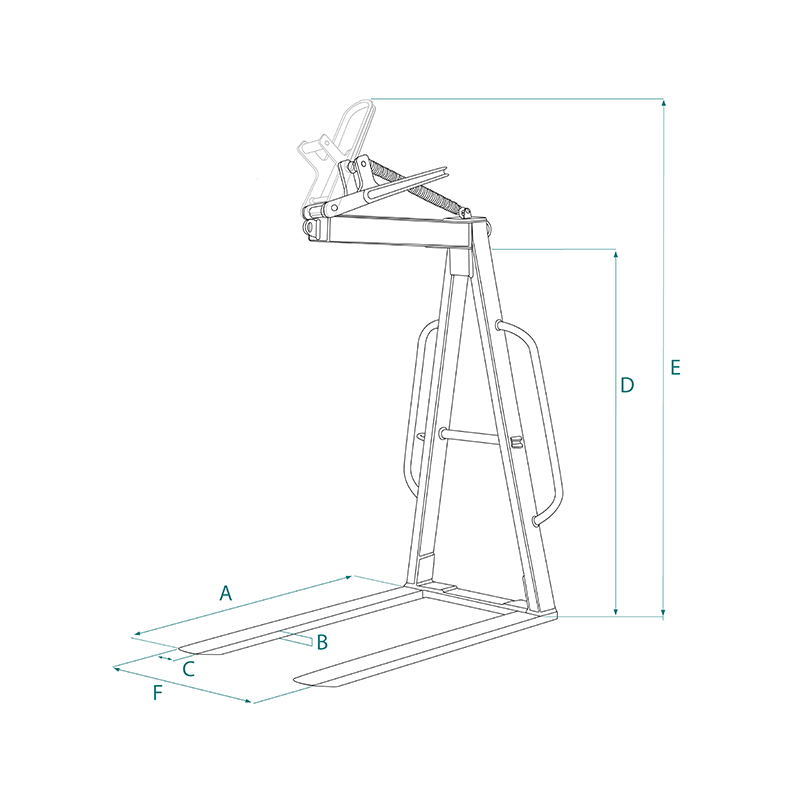

MBL-AFixed crane fork with spring balancing
Application sectors:
Construction
Lifting
Finish Type:
Painted
Galvanized
Versions available
| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBL-A06 | 600 | 75 | 1000 | 25 | 80 | 1100 | 1500 | 580 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A10 | 1000 | 80 | 1000 | 25 | 90 | 1100 | 1500 | 580 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A15 | 1500 | 105 | 1000 | 30 | 90 | 1400 | 1800 | 700 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A20 | 2000 | 130 | 1000 | 35 | 100 | 1400 | 1800 | 700 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A25 | 2500 | 155 | 1000 | 40 | 90 | 1400 | 1800 | 700 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A30 | 3000 | 190 | 1000 | 35 | 120 | 1400 | 1800 | 700 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBL-A06 | MBL-A06 | 600 | 75 | 1000 | 25 | 80 | 1100 | 1500 | 580 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A10 | MBL-A10 | 1000 | 80 | 1000 | 25 | 90 | 1100 | 1500 | 580 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A15 | MBL-A15 | 1500 | 105 | 1000 | 30 | 90 | 1400 | 1800 | 700 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A20 | MBL-A20 | 2000 | 130 | 1000 | 35 | 100 | 1400 | 1800 | 700 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A25 | MBL-A25 | 2500 | 155 | 1000 | 40 | 90 | 1400 | 1800 | 700 | ||||||||||||||||||||||||||||||||||||||||||
| MBL-A30 | MBL-A30 | 3000 | 190 | 1000 | 35 | 120 | 1400 | 1800 | 700 |
