Concrete buckets
Laydown conical concrete kibble with levered opening and rubber hose
BCF-LTLaydown conical concrete bucket with central discharge, rubber hose and lever opening
We are here to present the BCF-LT model, a laydown conical bucket designed to offer reliable and versatile performance on your construction site. Equipped with a bivalve opening operated by a lever and a central discharge with a rubber hose, this bucket boasts a robust and durable design. The presence of a spring allows for automatic closure of the discharge, while a rope enables the bucket to be opened even at height.
Application sectors:
Finish Type:
Painted
Versions available

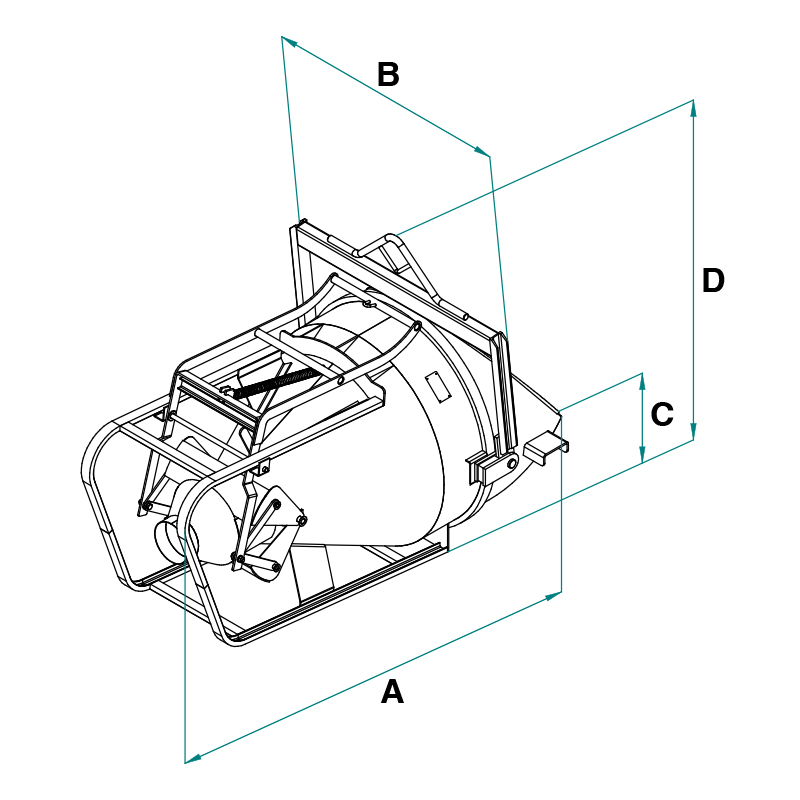

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCF-30LT | 780 | 300 | 270 | 1965 | 1270 | 627 | 1495 | |||||||||||||||||||||||||||||||||||||||||||
BCF-50LT | 1300 | 500 | 280 | 2098 | 1270 | 643 | 1512 | |||||||||||||||||||||||||||||||||||||||||||
BCF-75LT | 1950 | 750 | 325 | 2386 | 1530 | 763 | 1780 | |||||||||||||||||||||||||||||||||||||||||||
BCF-99LT | 2600 | 1000 | 355 | 2570 | 1530 | 786 | 1806 | |||||||||||||||||||||||||||||||||||||||||||
BCF-150LT | 3900 | 1500 | 695 | 2781 | 1885 | 975 | 2033 | |||||||||||||||||||||||||||||||||||||||||||
BCF-200LT | 5200 | 2000 | 750 | 3031 | 1885 | 975 | 2033 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCF-30LT | BCF-30LT | 780 | 300 | 270 | 1965 | 1270 | 627 | 1495 | |||||||||||||||||||||||||||||||||||||||||||
BCF-50LT | BCF-50LT | 1300 | 500 | 280 | 2098 | 1270 | 643 | 1512 | |||||||||||||||||||||||||||||||||||||||||||
BCF-75LT | BCF-75LT | 1950 | 750 | 325 | 2386 | 1530 | 763 | 1780 | |||||||||||||||||||||||||||||||||||||||||||
BCF-99LT | BCF-99LT | 2600 | 1000 | 355 | 2570 | 1530 | 786 | 1806 | |||||||||||||||||||||||||||||||||||||||||||
BCF-150LT | BCF-150LT | 3900 | 1500 | 695 | 2781 | 1885 | 975 | 2033 | |||||||||||||||||||||||||||||||||||||||||||
BCF-200LT | BCF-200LT | 5200 | 2000 | 750 | 3031 | 1885 | 975 | 2033 |
