Concrete buckets
Laydown concrete column skip with rubber hose and forklift pockets
BCLaydown concrete bucket with rubber hose and forkliftable base
The concrete bucket, with lever-operated opening and rubber hose, is the ideal choice for precise and reliable pours on the most demanding construction sites and for intensive use. Its design, tailored to the needs of the most challenging sites, makes it indispensable for pouring large quantities of concrete with extreme precision into formwork, pillars, or slabs, thereby avoiding potential structural issues from casting errors. The bucket is equipped with a guillotine valve operated by a lever. A spring allows for automatic closure of the discharge, while a rope allows the bucket to be opened even at height. The bucket features a forklift-compatible base welded to the bottom, facilitating movement with forklifts or telescopic handlers for easier handling on-site during loading and
Application sectors:
Finish Type:
Painted
Versions available

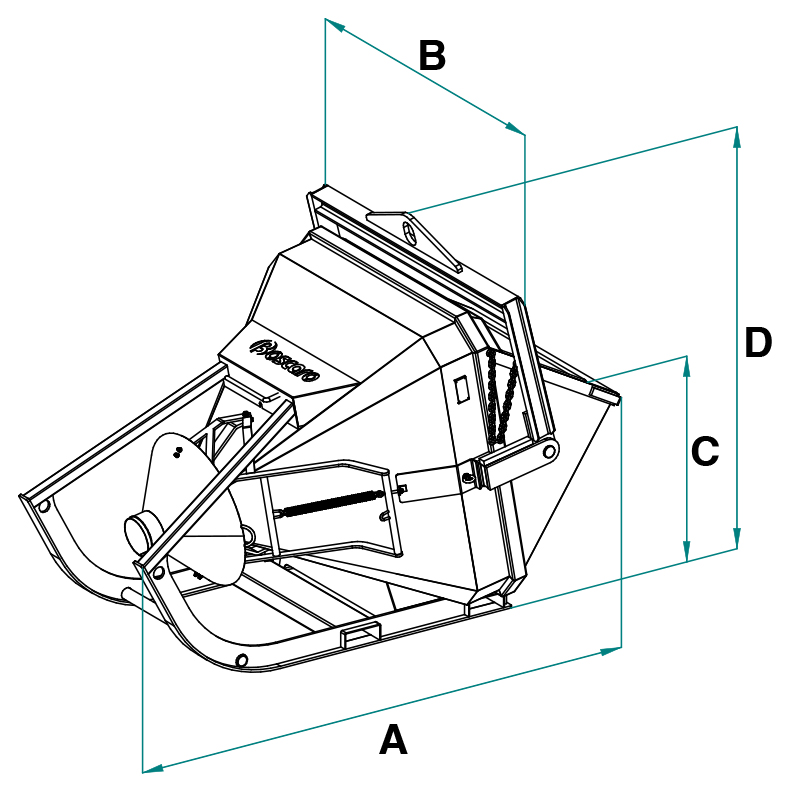

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BC-40 | 1040 | 400 | 300 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-50 | 1300 | 500 | 315 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-60 | 1560 | 600 | 325 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-80 | 2080 | 800 | 380 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-99 | 2600 | 1000 | 455 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-125 | 3250 | 1250 | 495 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-150 | 3900 | 1500 | 650 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-200 | 5200 | 2000 | 745 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-250 | 6500 | 2500 | 990 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-300 | 7800 | 3000 | 1410 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BC-40 | BC-40 | 1040 | 400 | 300 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-50 | BC-50 | 1300 | 500 | 315 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-60 | BC-60 | 1560 | 600 | 325 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-80 | BC-80 | 2080 | 800 | 380 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-99 | BC-99 | 2600 | 1000 | 455 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-125 | BC-125 | 3250 | 1250 | 495 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-150 | BC-150 | 3900 | 1500 | 650 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-200 | BC-200 | 5200 | 2000 | 745 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-250 | BC-250 | 6500 | 2500 | 990 | |||||||||||||||||||||||||||||||||||||||||||||||
BC-300 | BC-300 | 7800 | 3000 | 1410 |
