Concrete buckets

Heavy duty conical concrete bucket with rubber hose

CT-N

Heavy duty concrete bucket with central discharge and rubber hose

We are pleased to present the CT-N conical concrete bucket model, a reinforced version of our reliable CT model, designed to offer superior performance and greater durability in daily pouring operations on construction sites. The CT-N model features a central discharge with a flexible rubber hose and a lever-operated opening system with rope and automatic spring closure. The bucket comes with a 2-meter long rubber hose with a diameter of 200 mm. Different lengths and diameters are available upon request.
Application sectors:
Finish Type:
Painted
Versions available

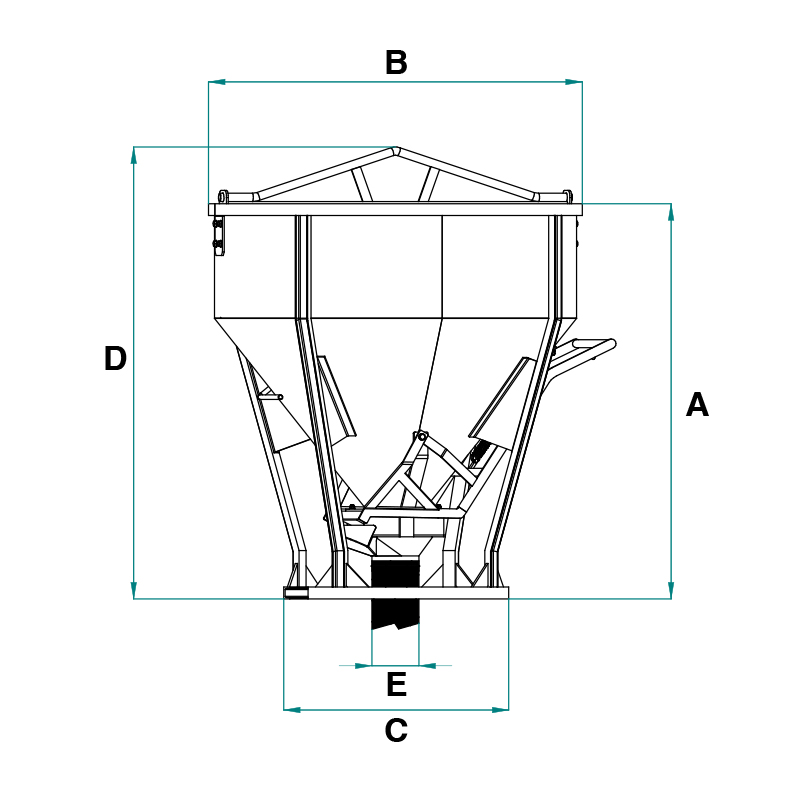

Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Pipe Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. pipe length (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
CT-50N 1300 500 145 1230 1050 885 1405 200
CT-80N 2080 800 220 1491 1250 925 1665 200
CT-99N 2600 1000 270 1415 1590 965 1622 200
CT-150N 3900 1500 330 1680 1590 965 1888 200
CT-200N 5200 2000 410 1705 1850 1225 1915 200
CT-250N 6500 2500 435 1905 1885 1225 2008 200
CT-300N 7800 3000 625 2100 1885 1225 2380 200
Cod. Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Pipe Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. pipe length (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
CT-50N CT-50N 1300 500 145 1230 1050 885 1405 200
CT-80N CT-80N 2080 800 220 1491 1250 925 1665 200
CT-99N CT-99N 2600 1000 270 1415 1590 965 1622 200
CT-150N CT-150N 3900 1500 330 1680 1590 965 1888 200
CT-200N CT-200N 5200 2000 410 1705 1850 1225 1915 200
CT-250N CT-250N 6500 2500 435 1905 1885 1225 2008 200
CT-300N CT-300N 7800 3000 625 2100 1885 1225 2380 200
