Concrete buckets
Heavy duty conical concrete bucket with central discharge and attachments
C-VConical concrete bucket with central discharge and double wheel opening
The C-V concrete bucket model is characterized by manual opening with a double wheel, ensuring precise control during concrete discharge. This model offers flexibility in terms of lifting, with the option to choose between 3 lifting hooks or a lifting arm, adapting to the specific needs of your construction site. The C-V bucket is available in various sizes and capacities, as indicated in the table below, and we offer the possibility of making customized modifications to meet your most particular requirements.
Application sectors:
Construction
Finish Type:
Painted
Versions available

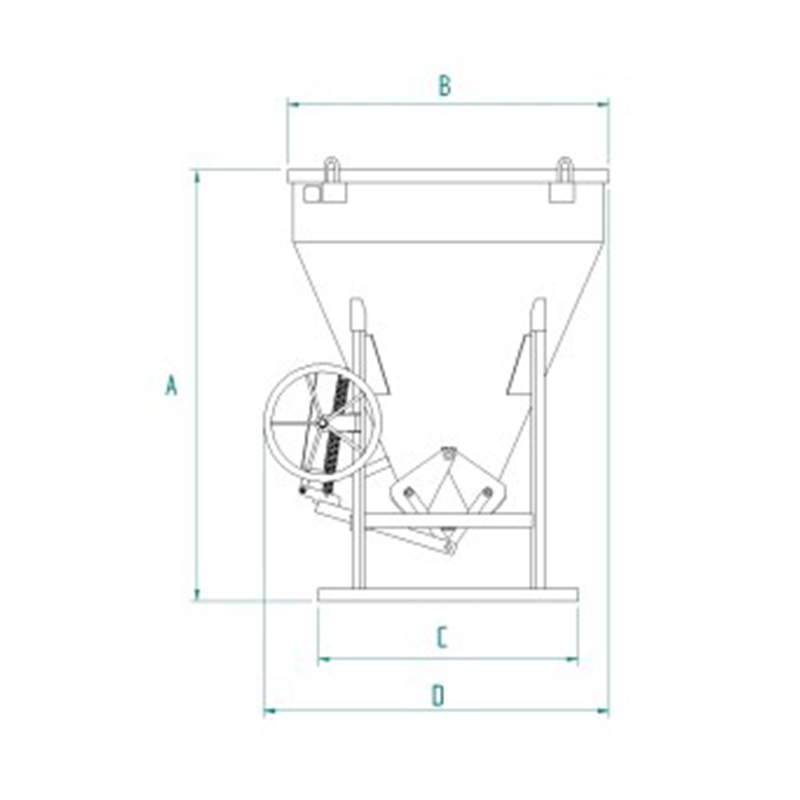

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-50V | 1300 | 500 | 175 | 1500 | 1090 | 1090 | 1319 | |||||||||||||||||||||||||||||||||||||||||||
| C-75V | 1950 | 750 | 185 | 1652 | 1350 | 1090 | 1449 | |||||||||||||||||||||||||||||||||||||||||||
| C-99V | 2600 | 1000 | 200 | 1802 | 1350 | 1090 | 1449 | |||||||||||||||||||||||||||||||||||||||||||
| C-150V | 3900 | 1500 | 370 | 2100 | 1584 | 1293 | 1637 | |||||||||||||||||||||||||||||||||||||||||||
| C-200V | 5200 | 1500 | 400 | 2380 | 1584 | 1293 | 1637 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-50V | C-50V | 1300 | 500 | 175 | 1500 | 1090 | 1090 | 1319 | |||||||||||||||||||||||||||||||||||||||||||
| C-75V | C-75V | 1950 | 750 | 185 | 1652 | 1350 | 1090 | 1449 | |||||||||||||||||||||||||||||||||||||||||||
| C-99V | C-99V | 2600 | 1000 | 200 | 1802 | 1350 | 1090 | 1449 | |||||||||||||||||||||||||||||||||||||||||||
| C-150V | C-150V | 3900 | 1500 | 370 | 2100 | 1584 | 1293 | 1637 | |||||||||||||||||||||||||||||||||||||||||||
| C-200V | C-200V | 5200 | 1500 | 400 | 2380 | 1584 | 1293 | 1637 |
