Crane accessories
Galvanized stackable mortar skip
MS-ZNGalvanized stackable mortar skip with forklift pockets
The Model M-SZN stackable mortar skip with forklift pockets is a versatile and reliable solution for transporting mortar or concrete in various worksite contexts. Made of high-quality galvanized steel, this container ensures greater corrosion resistance, making it ideal for environments subject to humidity or aggressive weather conditions. This model, in addition to being stackable to optimize space on the worksite, is designed to be forked at the base, while the presence of 4 rings on the sides allows for lifting by a crane using four-arm chains. The product is built and tested in compliance with strict UNI EN ISO 12100, UNI EN 349, UNI ISO 8686, UNI EN 10027, and UNI EN 10204 standards. Each product comes with a metal ID plate, certificate of conformity, and user and maintenance manual
Application sectors:
Construction
Finish Type:
Galvanized
Painted
Versions available

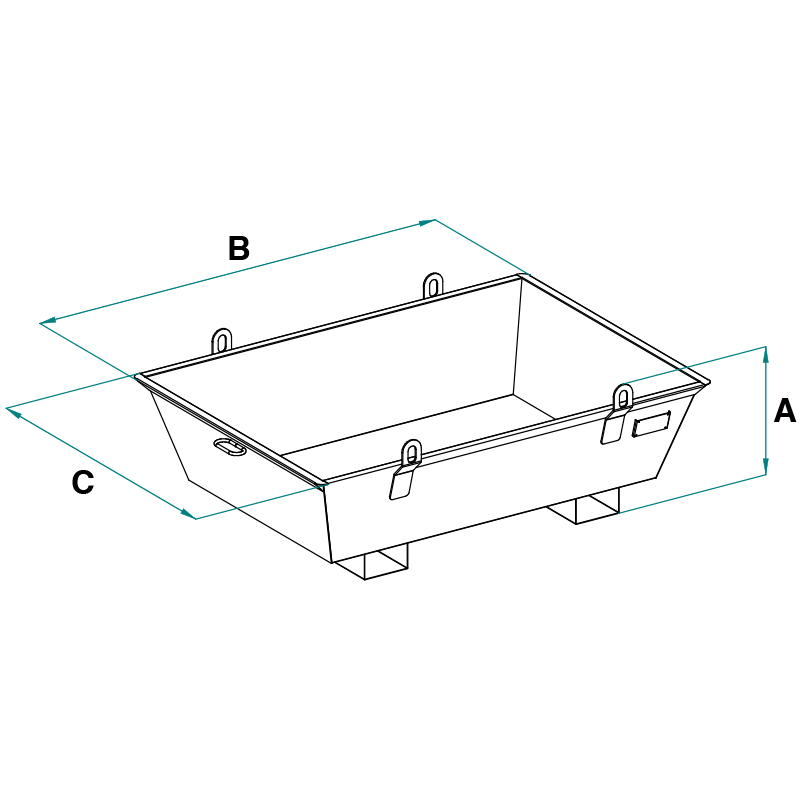

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS-30ZN | 660 | 300 | 60 | 433 | 1441 | 1029 | ||||||||||||||||||||||||||||||||||||||||||||
| MS-40ZN | 880 | 400 | 65 | 508 | 1486 | 1073 | ||||||||||||||||||||||||||||||||||||||||||||
| MS-50ZN | 1100 | 500 | 70 | 573 | 1524 | 1111 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS-30ZN | MS-30ZN | 660 | 300 | 60 | 433 | 1441 | 1029 | ||||||||||||||||||||||||||||||||||||||||||||
| MS-40ZN | MS-40ZN | 880 | 400 | 65 | 508 | 1486 | 1073 | ||||||||||||||||||||||||||||||||||||||||||||
| MS-50ZN | MS-50ZN | 1100 | 500 | 70 | 573 | 1524 | 1111 |
