Storage and handling equipment

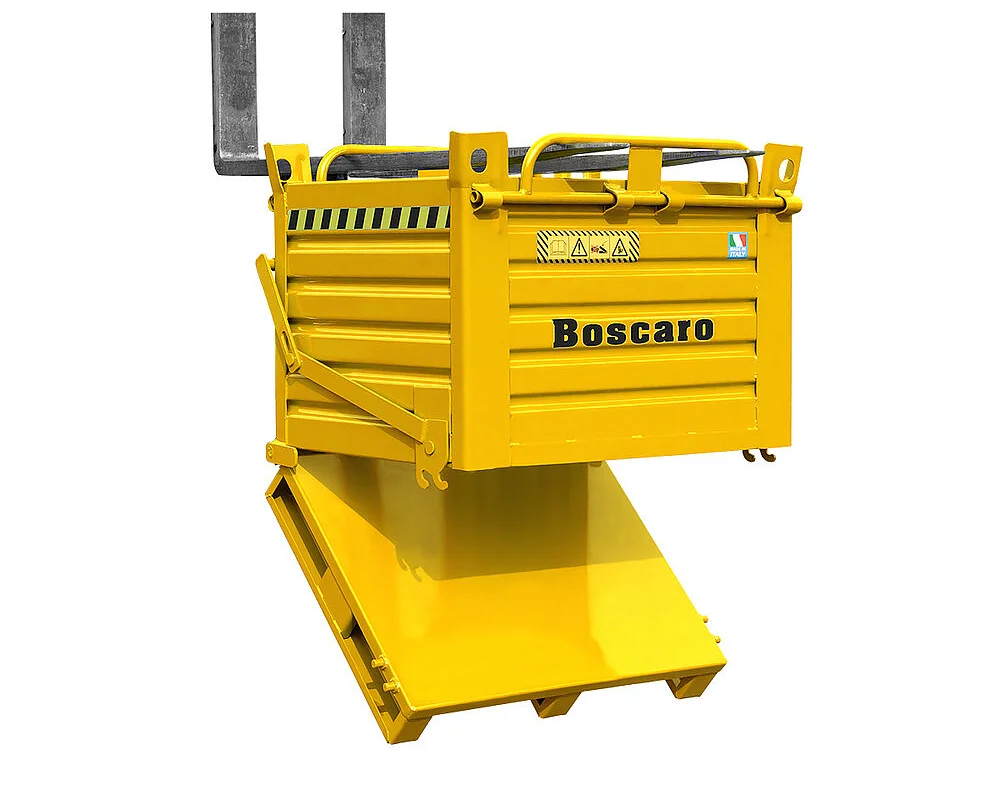

Drop Bottom Opening Skip 1 door

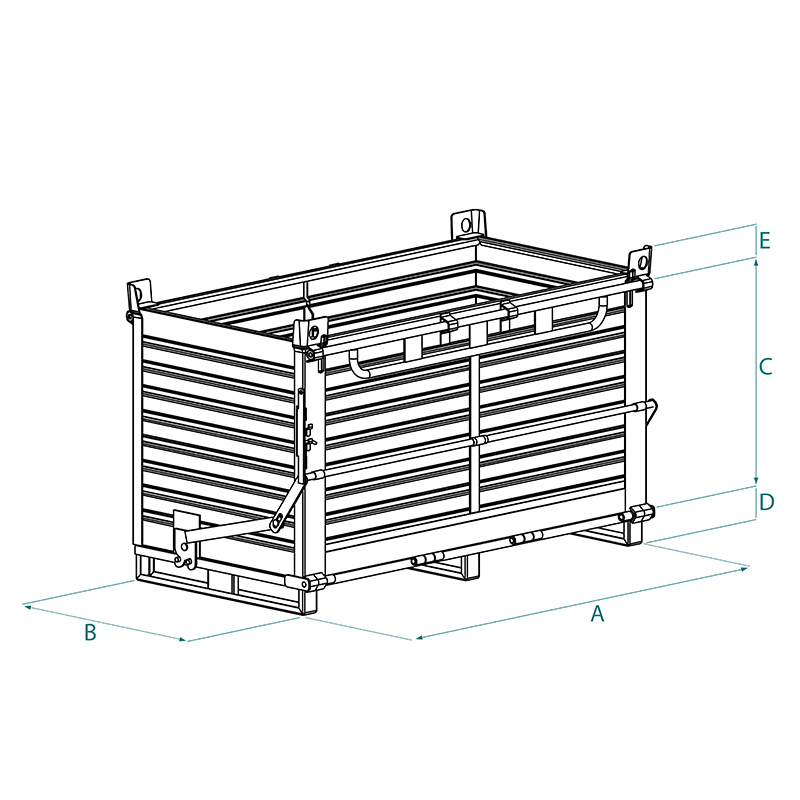

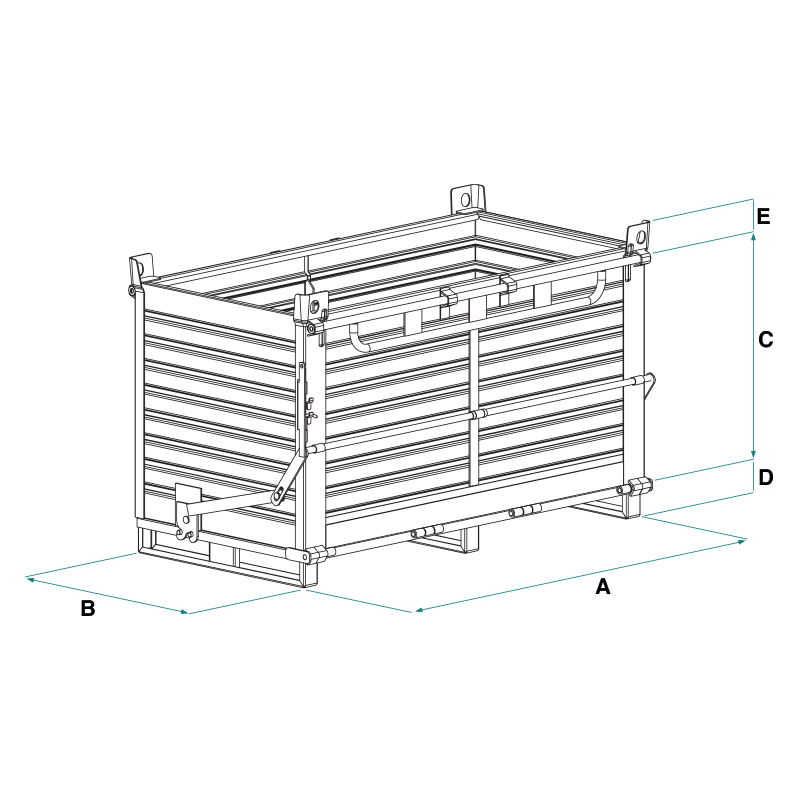

CL-FAUSheet metal container with single hinged bottom
The sheet metal container with single hinged bottom represents a highly effective sheet metal solution for managing waste and scrap. This device features a unique bottom that significantly simplifies the collection, handling, and unloading of long or bulky materials.
Application sectors:
Industry
Finish Type:
Painted
Versions available
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | N. bracci | N. persone | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-FAU50 | 2000 | 500 | 115 | 1000 | 800 | 650 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU80 | 2000 | 800 | 135 | 1000 | 800 | 1000 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU99 | 2000 | 1000 | 155 | 1000 | 800 | 1250 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU100 | 2000 | 1000 | 200 | 1500 | 1000 | 650 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU150 | 2000 | 1500 | 240 | 1500 | 1000 | 1000 | 155 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU200 | 2000 | 2000 | 340 | 2000 | 1000 | 1000 | 150 | 100 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | N. bracci | N. persone | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-FAU50 | CL-FAU50 | 2000 | 500 | 115 | 1000 | 800 | 650 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU80 | CL-FAU80 | 2000 | 800 | 135 | 1000 | 800 | 1000 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU99 | CL-FAU99 | 2000 | 1000 | 155 | 1000 | 800 | 1250 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU100 | CL-FAU100 | 2000 | 1000 | 200 | 1500 | 1000 | 650 | 150 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU150 | CL-FAU150 | 2000 | 1500 | 240 | 1500 | 1000 | 1000 | 155 | 110 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-FAU200 | CL-FAU200 | 2000 | 2000 | 340 | 2000 | 1000 | 1000 | 150 | 100 | 1 |
