Concrete buckets
Conical concrete bucket with rubber hose
CTConical concrete bucket with central discharge and rubber hose
We are pleased to introduce the model CT conical concrete bucket, featuring a central discharge with a rubber hose and lever-operated opening. The bucket comes complete with a rope and two springs that facilitate the opening and closing of the discharge valve. This configuration provides precise and uniform control of the concrete pour, making the bucket particularly suitable for use on formworks and pillars. The rubber hose is standard with a length of 2 meters and a diameter of 200 mm, but different sizes can be requested upon specific demand. This flexibility allows customization of the bucket according to the specific needs of your project. We offer the CT model in various sizes and capacities, as specified in the table below, and we can further customize it to meet your individual
Application sectors:
Finish Type:
Painted
Versions available

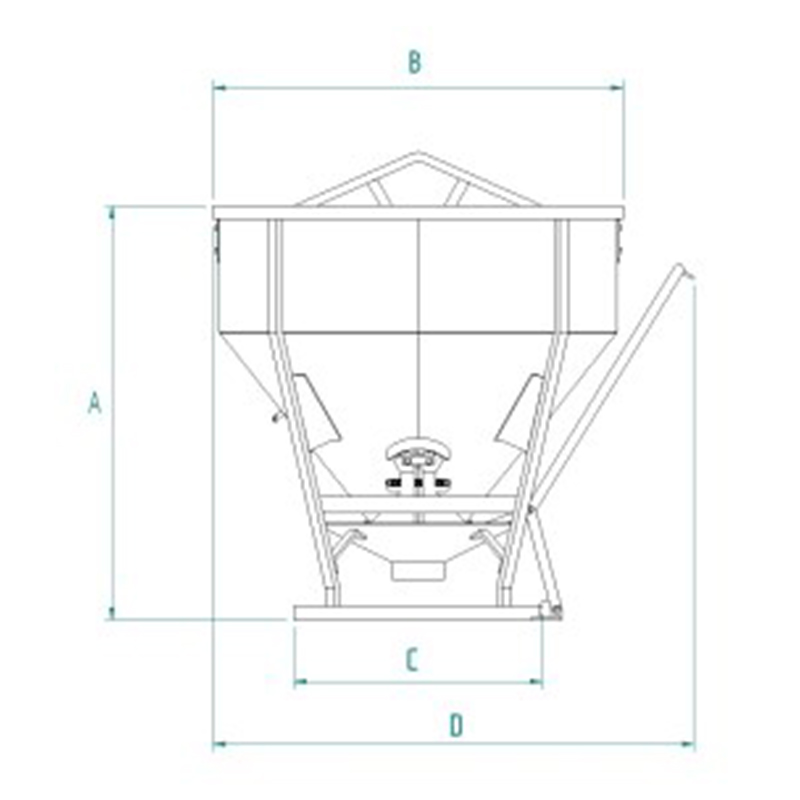

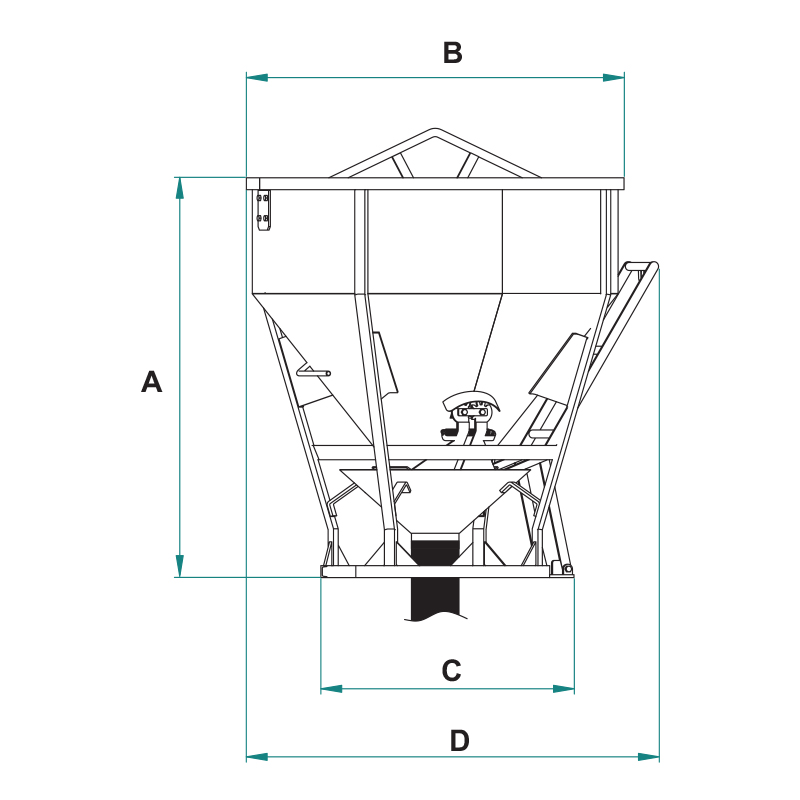

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CT-40 | 1040 | 400 | 110 | 1130 | 1050 | 875 | 1200 | |||||||||||||||||||||||||||||||||||||||||||
CT-50 | 1300 | 500 | 115 | 1240 | 1050 | 875 | 1200 | |||||||||||||||||||||||||||||||||||||||||||
CT-80 | 2080 | 800 | 180 | 1490 | 1250 | 930 | 1445 | |||||||||||||||||||||||||||||||||||||||||||
CT-99 | 2600 | 1000 | 195 | 1670 | 1250 | 930 | 1450 | |||||||||||||||||||||||||||||||||||||||||||
CT-150 | 3900 | 1500 | 250 | 2170 | 1250 | 930 | 1450 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CT-40 | CT-40 | 1040 | 400 | 110 | 1130 | 1050 | 875 | 1200 | |||||||||||||||||||||||||||||||||||||||||||
CT-50 | CT-50 | 1300 | 500 | 115 | 1240 | 1050 | 875 | 1200 | |||||||||||||||||||||||||||||||||||||||||||
CT-80 | CT-80 | 2080 | 800 | 180 | 1490 | 1250 | 930 | 1445 | |||||||||||||||||||||||||||||||||||||||||||
CT-99 | CT-99 | 2600 | 1000 | 195 | 1670 | 1250 | 930 | 1450 | |||||||||||||||||||||||||||||||||||||||||||
CT-150 | CT-150 | 3900 | 1500 | 250 | 2170 | 1250 | 930 | 1450 |
