Concrete buckets
Conical concrete bucket with rubber hose and geared opening
CT-VConical concrete bucket with central discharge, rubber hose, and double wheel opening
We are excited to introduce our innovative CT-V model concrete bucket, designed to deliver excellent performance and unparalleled precision in your construction site pouring operations. The CT-V model features a central discharge with a robust rubber hose and a dual-wheel opening system. The bucket comes with a 2-meter-long rubber hose with a diameter of 200 mm, with the option to request extended lengths upon specific demand. The conical shape of this model and the presence of the wheel-operated rubber hose make it particularly suitable for concrete pours on formworks and pillars. The CT-V model is available with two lifting options: three lifting points or lifting arm, offering flexibility and adaptability to your specific on-site needs. This item is available in a wide range of sizes
Application sectors:
Finish Type:
Painted
Versions available

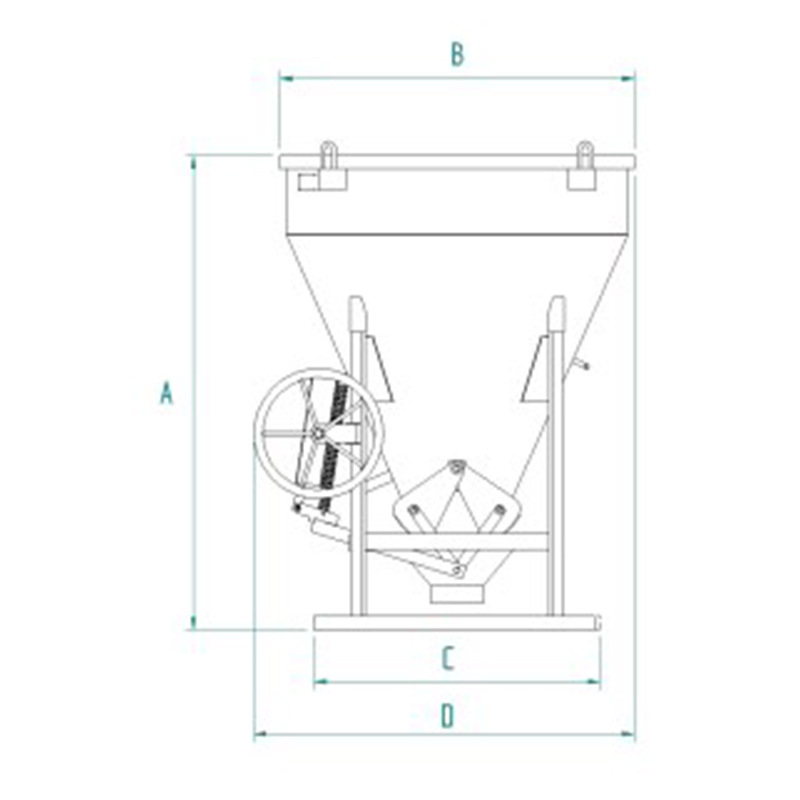

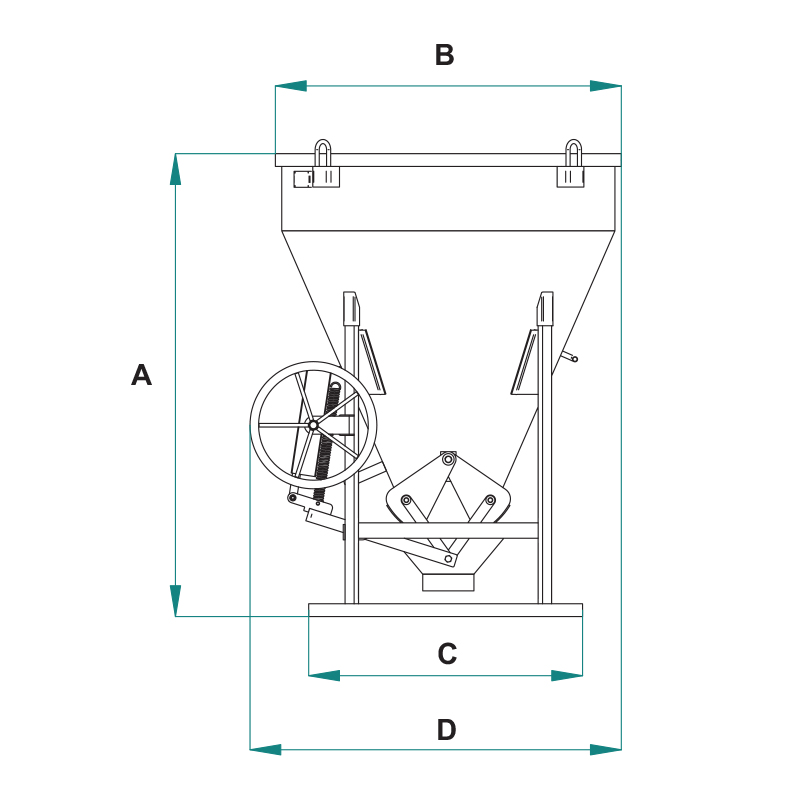

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CT-50V | 1300 | 500 | 185 | 1535 | 1090 | 1090 | 1320 | |||||||||||||||||||||||||||||||||||||||||||
CT-75V | 1950 | 750 | 210 | 1652 | 1350 | 1090 | 1450 | |||||||||||||||||||||||||||||||||||||||||||
CT-99V | 2600 | 1000 | 225 | 1802 | 1350 | 1090 | 1450 | |||||||||||||||||||||||||||||||||||||||||||
CT-150V | 3900 | 1500 | 390 | 2100 | 1585 | 1293 | 1637 | |||||||||||||||||||||||||||||||||||||||||||
CT-200V | 5200 | 2000 | 420 | 2380 | 1585 | 1293 | 1637 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CT-50V | CT-50V | 1300 | 500 | 185 | 1535 | 1090 | 1090 | 1320 | |||||||||||||||||||||||||||||||||||||||||||
CT-75V | CT-75V | 1950 | 750 | 210 | 1652 | 1350 | 1090 | 1450 | |||||||||||||||||||||||||||||||||||||||||||
CT-99V | CT-99V | 2600 | 1000 | 225 | 1802 | 1350 | 1090 | 1450 | |||||||||||||||||||||||||||||||||||||||||||
CT-150V | CT-150V | 3900 | 1500 | 390 | 2100 | 1585 | 1293 | 1637 | |||||||||||||||||||||||||||||||||||||||||||
CT-200V | CT-200V | 5200 | 2000 | 420 | 2380 | 1585 | 1293 | 1637 |
