Concrete buckets
Conical concrete bucket with bottom and side discharge
CLCombined conical concrete bucket with central and side discharge with chute
The CL concrete bucket model is designed to optimize the loading process with the concrete mixer thanks to its reduced edge height, which facilitates loading. Equipped with a twin-valve central discharge opening operable by lever for precise dosing of concrete, the CL bucket also features a useful collapsible chute for side discharge. This combination provides significant versatility for directing the flow of concrete, proving particularly useful in situations requiring accurate pouring in tight and hard-to-access spaces. Available in various capacities and sizes as specified in the table below, the CL model adapts to the specific needs of each construction site. You can request the version with provisions for a forklift or hot-dip galvanizing for increased corrosion resistance and
Application sectors:
Construction
Finish Type:
Painted
Galvanized
Versions available

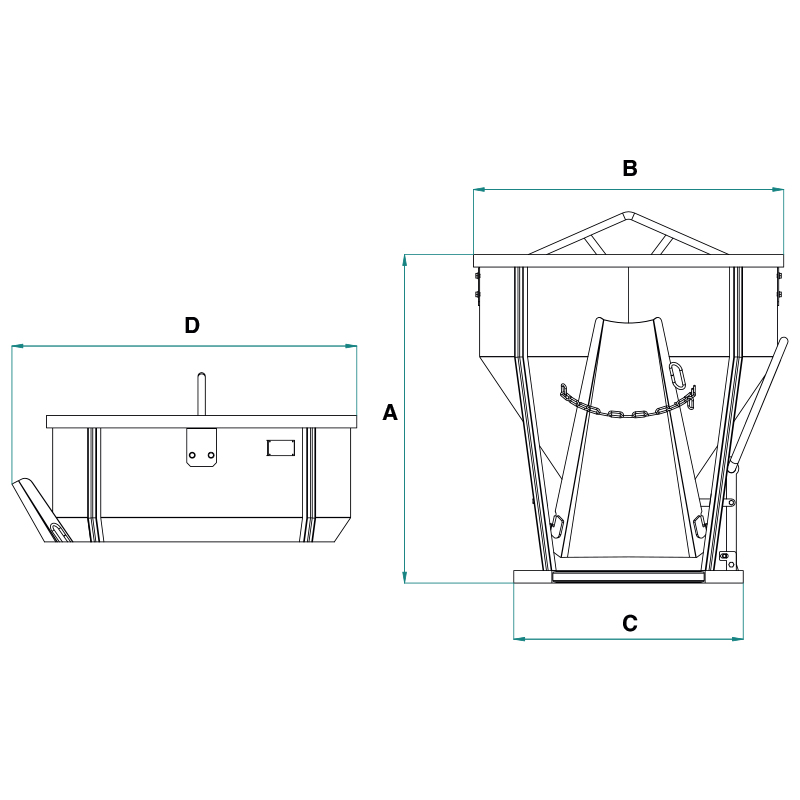

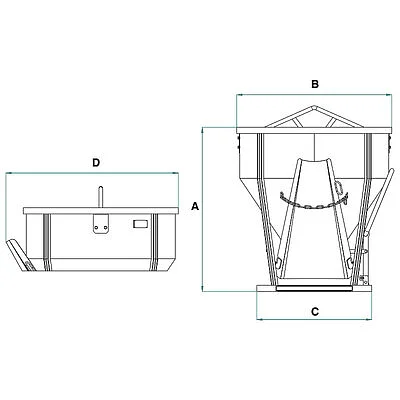

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-15 | 390 | 150 | 65 | 560 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-20 | 520 | 200 | 70 | 640 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-25 | 650 | 250 | 75 | 720 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-30 | 780 | 300 | 80 | 800 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-35 | 910 | 350 | 85 | 887 | 925 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-40 | 1040 | 400 | 90 | 840 | 1050 | 660 | 1250 | |||||||||||||||||||||||||||||||||||||||||||
| CL-50 | 1300 | 500 | 95 | 950 | 1050 | 660 | 1250 | |||||||||||||||||||||||||||||||||||||||||||
| CL-60 | 1560 | 600 | 100 | 1070 | 1050 | 660 | 1250 | |||||||||||||||||||||||||||||||||||||||||||
| CL-80 | 2080 | 800 | 150 | 1120 | 1250 | 750 | 1550 | |||||||||||||||||||||||||||||||||||||||||||
| CL-99 | 2600 | 1000 | 165 | 1300 | 1250 | 750 | 1550 | |||||||||||||||||||||||||||||||||||||||||||
| CL-150 | 3900 | 1500 | 240 | 1800 | 1250 | 750 | 1550 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-15 | CL-15 | 390 | 150 | 65 | 560 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-20 | CL-20 | 520 | 200 | 70 | 640 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-25 | CL-25 | 650 | 250 | 75 | 720 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-30 | CL-30 | 780 | 300 | 80 | 800 | 920 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-35 | CL-35 | 910 | 350 | 85 | 887 | 925 | 660 | 1100 | |||||||||||||||||||||||||||||||||||||||||||
| CL-40 | CL-40 | 1040 | 400 | 90 | 840 | 1050 | 660 | 1250 | |||||||||||||||||||||||||||||||||||||||||||
| CL-50 | CL-50 | 1300 | 500 | 95 | 950 | 1050 | 660 | 1250 | |||||||||||||||||||||||||||||||||||||||||||
| CL-60 | CL-60 | 1560 | 600 | 100 | 1070 | 1050 | 660 | 1250 | |||||||||||||||||||||||||||||||||||||||||||
| CL-80 | CL-80 | 2080 | 800 | 150 | 1120 | 1250 | 750 | 1550 | |||||||||||||||||||||||||||||||||||||||||||
| CL-99 | CL-99 | 2600 | 1000 | 165 | 1300 | 1250 | 750 | 1550 | |||||||||||||||||||||||||||||||||||||||||||
| CL-150 | CL-150 | 3900 | 1500 | 240 | 1800 | 1250 | 750 | 1550 |
