Concrete buckets

Concrete bucket with side discharge forklift pockets and levered opening

BF-V

Concrete bucket with side discharge and wheel opening

We present the BF-V model, a side discharge concrete bucket for cranes, a versatile option designed to meet the specific needs of your construction projects. Equipped with a side discharge and manual double-wheel opening, the BF-V model ensures precise control of the concrete pour thanks to its guillotine closure. You can request the BF-V model with a base equipped for lifting with a forklift or telehandler, model BF-VST, or request the application of a rubber hose, model BF-VT. Available in various sizes and capacities, as indicated in the table below, the BF-V model can be customized to meet the specific needs of your project.
Application sectors:
Finish Type:
Painted
Versions available

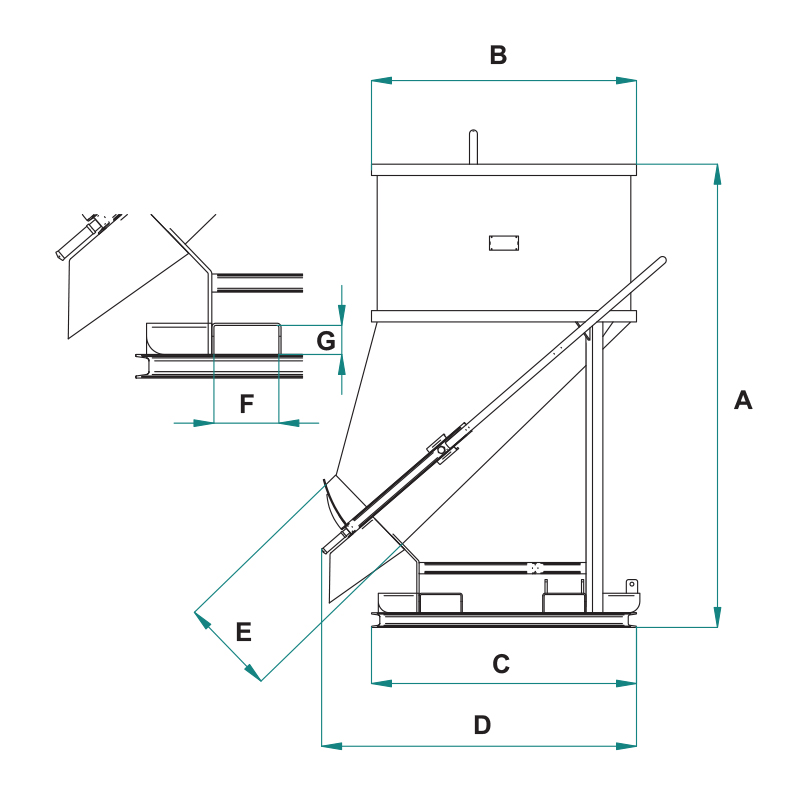

Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
BF-30V 780 300 120 1185 935 935 1110 300
BF-40V 1040 400 125 1350 935 935 1110 300
BF-50V 1300 500 135 1510 935 935 1160 300
BF-75V 1950 750 220 1781 1170 1170 1390 420
BF-99V 2600 1000 235 2041 1170 1170 1390 420
BF-150V 3900 1500 430 2025 1492 1492 1600 420
BF-200V 5200 2000 445 2375 1492 1492 1600 420
Cod. Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
BF-30V BF-30V 780 300 120 1185 935 935 1110 300
BF-40V BF-40V 1040 400 125 1350 935 935 1110 300
BF-50V BF-50V 1300 500 135 1510 935 935 1160 300
BF-75V BF-75V 1950 750 220 1781 1170 1170 1390 420
BF-99V BF-99V 2600 1000 235 2041 1170 1170 1390 420
BF-150V BF-150V 3900 1500 430 2025 1492 1492 1600 420
BF-200V BF-200V 5200 2000 445 2375 1492 1492 1600 420
