Concrete buckets
Concrete bucket with side discharge and geared opening

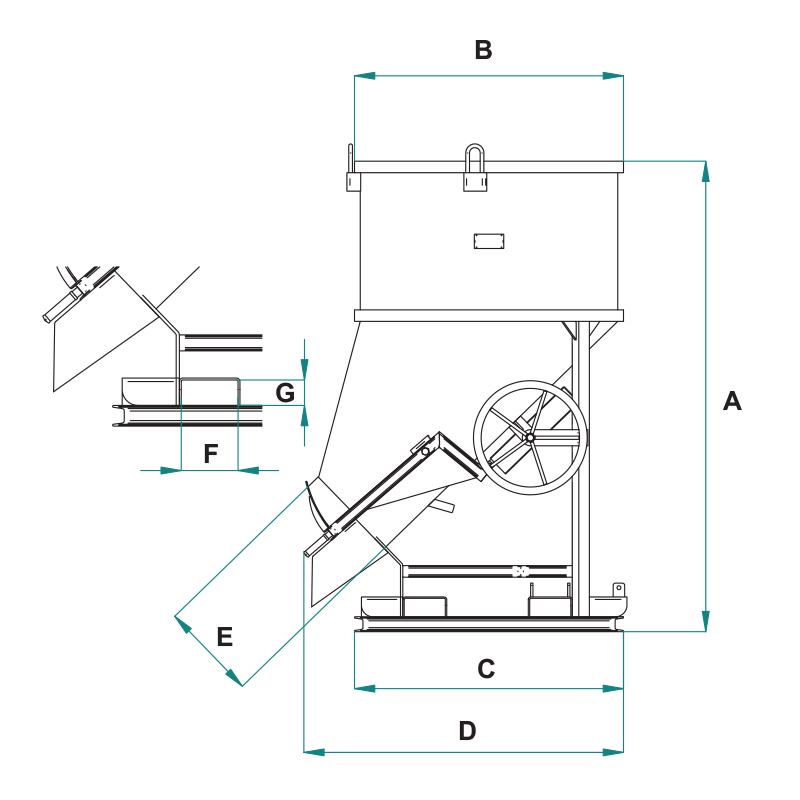

BF-VSTConcrete bucket with side discharge, double wheel opening and forkliftable base
We present the BF-VST concrete bucket model, a versatile option designed to maximize efficiency and safety on your construction site. Equipped with a side discharge and manual double-wheel opening, the BF-VST model is designed to offer precise control of the concrete during the discharge process thanks to a guillotine valve closure. In addition to being lifted with a crane, this model features a forkable base, allowing it to be moved with a forklift or telehandler, offering greater flexibility in the work area. The base is also equipped with a special locking mechanism that prevents the bucket from slipping off the forks, ensuring greater safety during use. Available in various sizes and capacities, as indicated in the table below, the BF-VST model can be customized to meet the specific
Application sectors:
Construction
Finish Type:
Painted
Versions available

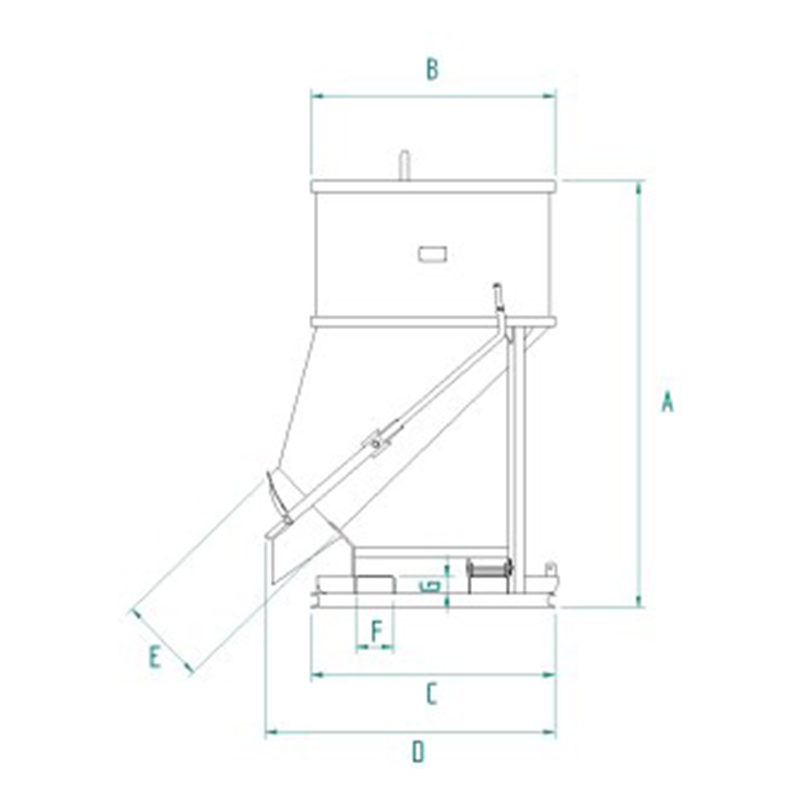

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-30VST | 780 | 300 | 145 | 1185 | 935 | 935 | 1141 | 300 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-40VST | 1040 | 400 | 155 | 1350 | 935 | 935 | 1141 | 300 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-50VST | 1300 | 500 | 165 | 1510 | 935 | 935 | 1141 | 300 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-75VST | 1950 | 750 | 255 | 1781 | 1170 | 1170 | 1405 | 420 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-99VST | 2600 | 1000 | 270 | 2041 | 1170 | 1170 | 1405 | 420 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-150VST | 3900 | 1500 | 520 | 2025 | 1492 | 1492 | 1683 | 420 | 180 | 85 | ||||||||||||||||||||||||||||||||||||||||
| BF-200VST | 5200 | 2000 | 550 | 2375 | 1492 | 1492 | 1683 | 420 | 180 | 85 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-30VST | BF-30VST | 780 | 300 | 145 | 1185 | 935 | 935 | 1141 | 300 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-40VST | BF-40VST | 1040 | 400 | 155 | 1350 | 935 | 935 | 1141 | 300 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-50VST | BF-50VST | 1300 | 500 | 165 | 1510 | 935 | 935 | 1141 | 300 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-75VST | BF-75VST | 1950 | 750 | 255 | 1781 | 1170 | 1170 | 1405 | 420 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-99VST | BF-99VST | 2600 | 1000 | 270 | 2041 | 1170 | 1170 | 1405 | 420 | 180 | 80 | ||||||||||||||||||||||||||||||||||||||||
| BF-150VST | BF-150VST | 3900 | 1500 | 520 | 2025 | 1492 | 1492 | 1683 | 420 | 180 | 85 | ||||||||||||||||||||||||||||||||||||||||
| BF-200VST | BF-200VST | 5200 | 2000 | 550 | 2375 | 1492 | 1492 | 1683 | 420 | 180 | 85 |
