Concrete buckets

Concrete bucket with rubber hose levered opening and operator platform

BCE-P

Octagonal concrete bucket with rubber hose and operator platform

The BCE-P model is designed with high standards to ensure reliable and versatile performance, meeting the specific needs of large-scale construction sites. Equipped with a central discharge featuring a rubber hose and a guillotine valve operated by a lever with automatic spring closure, this model is highly functional for pouring into formworks. The platform directly connected to the base of the bucket ensures a smoother and safer working experience, allowing the operator to position close to the pouring area. The bucket features lifting with a four-legs chain sling and mounts a 2-meter long, 200 mm diameter rubber hose, also available in different sizes and lengths upon request to adapt to your project's specific needs. The BCE-P model is offered in various capacities, as indicated in the
Application sectors:
Finish Type:
Painted
Versions available

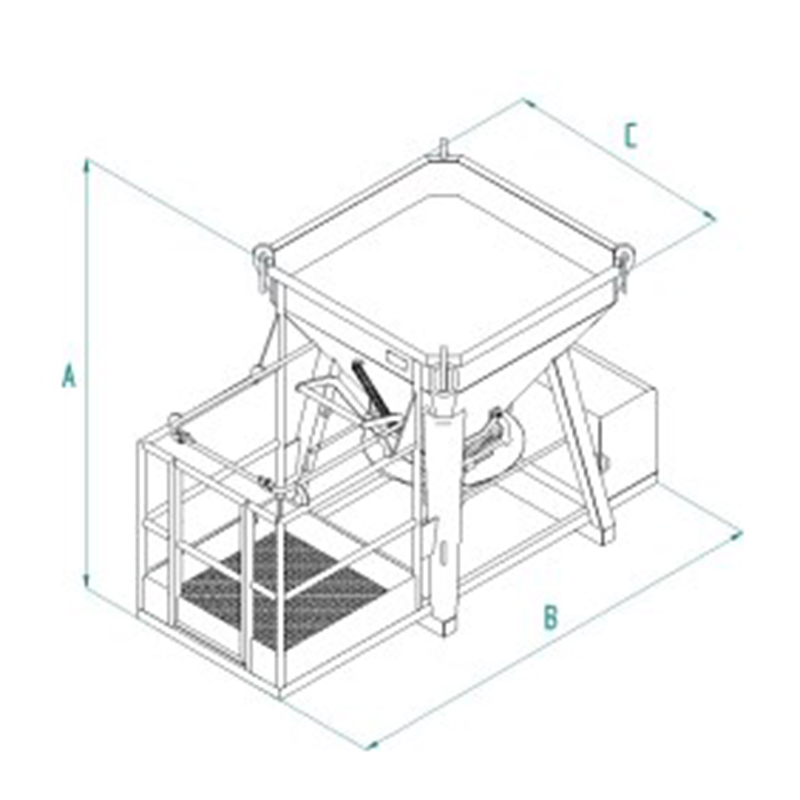

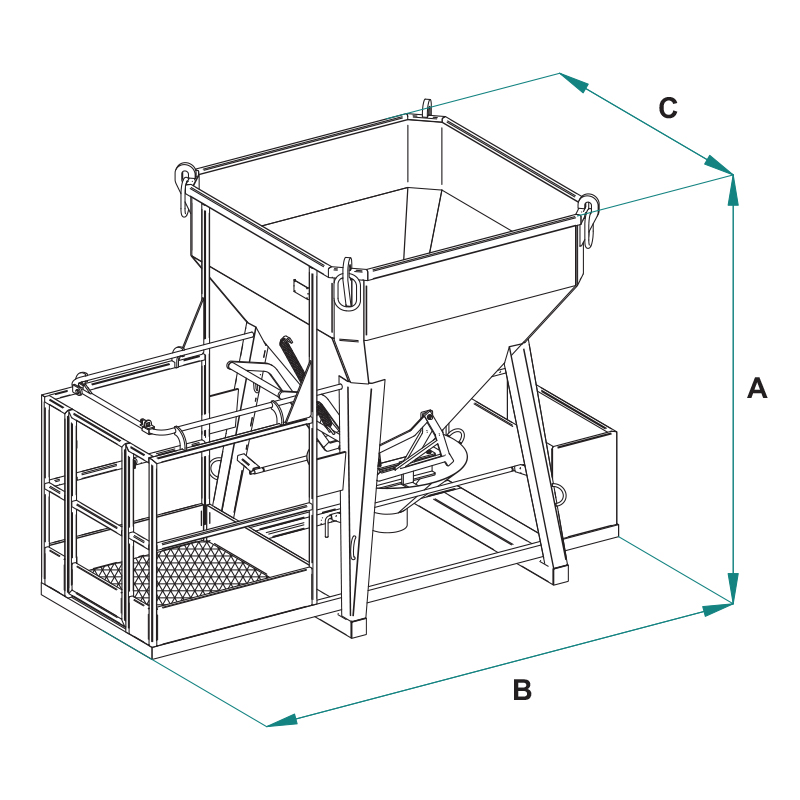

Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Pipe Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. pipe length (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
BCE-80P 2080 800 570 1686 2640 1360
BCE-99P 2600 1000 650 1783 2640 1360
BCE-125P 3250 1250 675 1956 2640 1360
BCE-150P 3900 1500 700 1996 2795 1560
BCE-200P 5200 2000 810 2206 2795 1560
BCE-250P 6500 2500 860 2079 3085 1780
BCE-300P 7800 3000 980 2254 3085 1780
Cod. Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Pipe Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. pipe length (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
BCE-80P BCE-80P 2080 800 570 1686 2640 1360
BCE-99P BCE-99P 2600 1000 650 1783 2640 1360
BCE-125P BCE-125P 3250 1250 675 1956 2640 1360
BCE-150P BCE-150P 3900 1500 700 1996 2795 1560
BCE-200P BCE-200P 5200 2000 810 2206 2795 1560
BCE-250P BCE-250P 6500 2500 860 2079 3085 1780
BCE-300P BCE-300P 7800 3000 980 2254 3085 1780
