Concrete buckets
Concrete bucket with rubber hose and off-center discharge gate

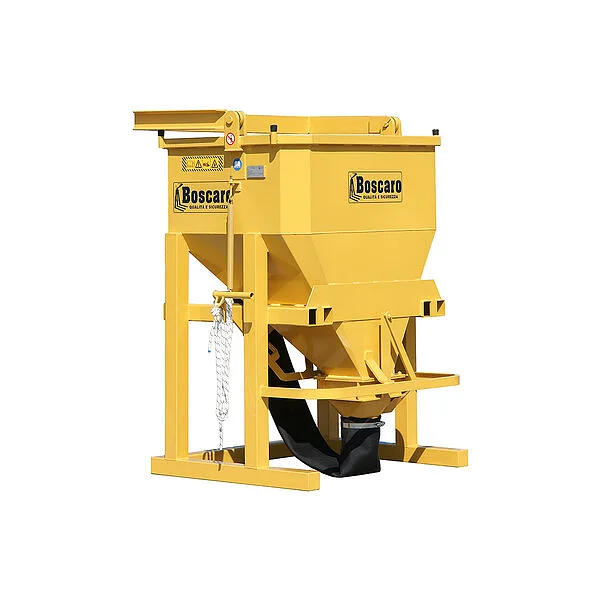

BCE-LOctagonal concrete bucket with rubber hose and offset discharge
We are proud to introduce the BCE-L model, a concrete bucket characterized by an off-center discharge with a rubber hose and lever opening. Designed to ensure excellent precision in concrete distribution, this bucket delivers superior performance in your pouring projects. The standard 2-meter rubber hose with a diameter of 200 mm ensures controlled flow of concrete. The lever opening allows easy control of dosage, while the rope provides the ability to manage and adjust the bucket valve's opening even at height. This bucket model can be lifted in two ways: using a crane with the bale arm, or it can be lifted with a telescopic handler or forklift, using the welded half-body forks of the bucket. The BCE-L model is available in various sizes and capacities, offering a wide range of options to
Application sectors:
Finish Type:
Painted
Versions available

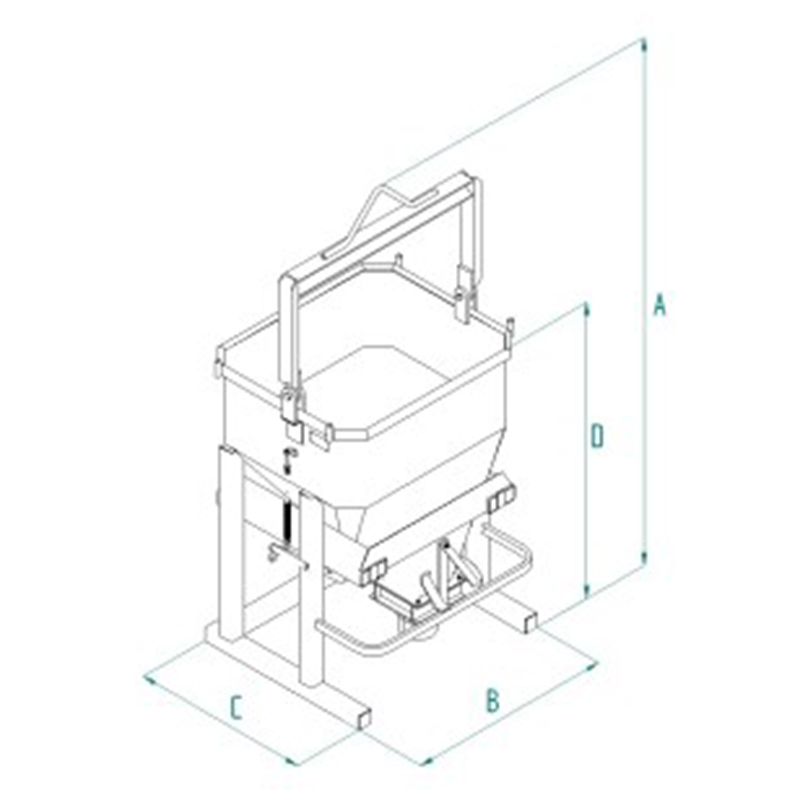

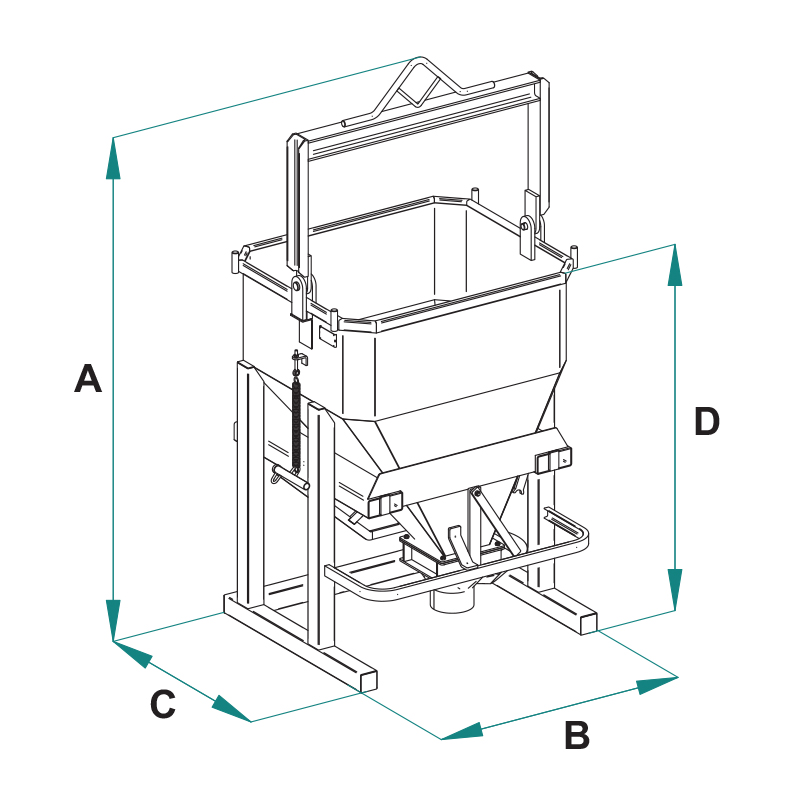

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCE-50L | 1300 | 500 | 270 | 2330 | 1155 | 1006 | 1480 | |||||||||||||||||||||||||||||||||||||||||||
BCE-99L | 2600 | 1000 | 390 | 2850 | 1300 | 1126 | 1780 | |||||||||||||||||||||||||||||||||||||||||||
BCE-150L | 3900 | 1500 | 555 | 2950 | 1495 | 1503 | 1900 | |||||||||||||||||||||||||||||||||||||||||||
BCE-200L | 5200 | 2000 | 585 | 3338 | 1495 | 1503 | 2022 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BCE-50L | BCE-50L | 1300 | 500 | 270 | 2330 | 1155 | 1006 | 1480 | |||||||||||||||||||||||||||||||||||||||||||
BCE-99L | BCE-99L | 2600 | 1000 | 390 | 2850 | 1300 | 1126 | 1780 | |||||||||||||||||||||||||||||||||||||||||||
BCE-150L | BCE-150L | 3900 | 1500 | 555 | 2950 | 1495 | 1503 | 1900 | |||||||||||||||||||||||||||||||||||||||||||
BCE-200L | BCE-200L | 5200 | 2000 | 585 | 3338 | 1495 | 1503 | 2022 |
