Concrete buckets
Telehandler concrete skip
MCEConcrete bucket with base for forklift or telehandler
We are excited to present the MCE model, a versatile and reliable solution for lifting and transporting concrete. With a three-sided forkable base, the MCE model allows safe and stable lifting using a forklift or telescopic handler. The bucket features a front lever-operated guillotine gate, offering precise control during concrete pouring operations. Upon request, the bucket can be supplied with a complete rubber hose conveyor with a 200 mm diameter, ensuring a more controlled and secure flow. The MCE model is designed to meet your specific on-site needs, offering versatility and reliability. Its robust structure and careful design make it an ideal ally for optimizing your construction operations. Available in a wide range of sizes and capacities, the MCE model can be customized to best
Application sectors:
Construction
Finish Type:
Painted
Versions available

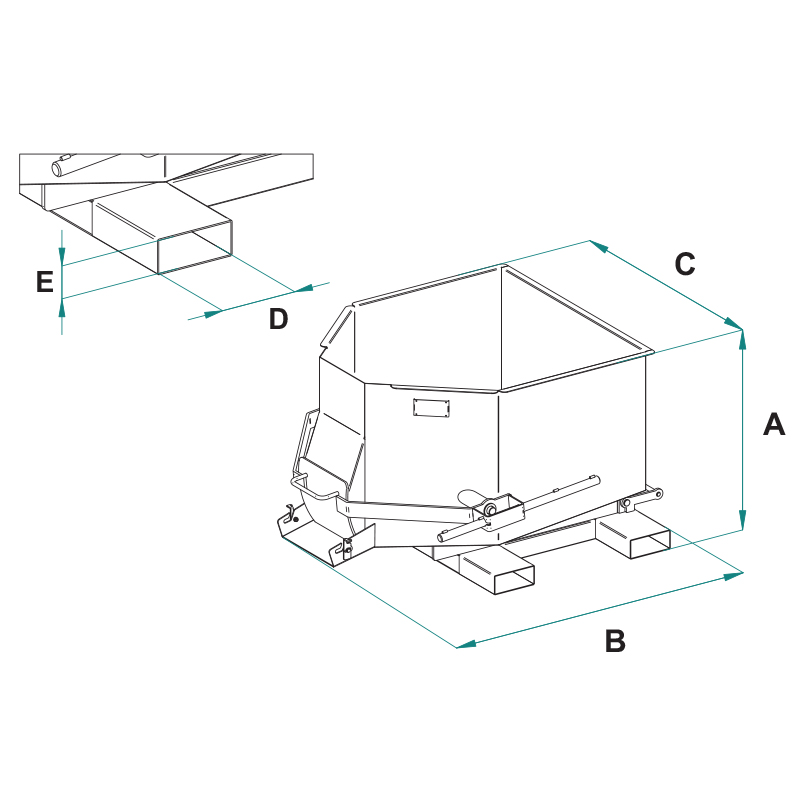

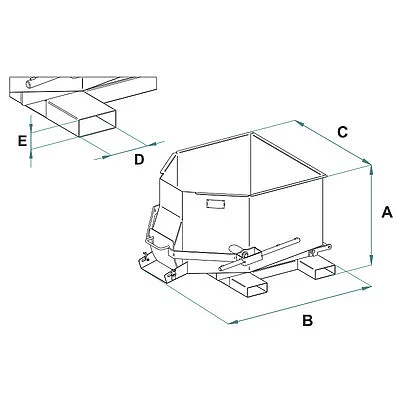

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCE-50 | 1300 | 500 | 170 | 766 | 1240 | 1195 | 170 | 70 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| MCE-99 | 2600 | 1000 | 320 | 900 | 1615 | 1225 | 190 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| MCE-150 | 3900 | 1500 | 415 | 845 | 1970 | 1883 | 230 | 80 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCE-50 | MCE-50 | 1300 | 500 | 170 | 766 | 1240 | 1195 | 170 | 70 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| MCE-99 | MCE-99 | 2600 | 1000 | 320 | 900 | 1615 | 1225 | 190 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| MCE-150 | MCE-150 | 3900 | 1500 | 415 | 845 | 1970 | 1883 | 230 | 80 | 1 |
