Boat skips
Self dumping bin with castor wheels and vertical lifting arm
A-RSelf dumping bin with castor wheels for aggregates and debris
The A-R model is our self-dumping bin equipped with castor wheels, designed to offer maximum convenience on construction sites and in industrial contexts. Its distinctive feature consists of 4 wheels welded to the bottom (2 swiveling and 2 fixed with varying diameters) that facilitate movement both outside and inside buildings. The bucket features a fixed lifting arm and an internal sliding bell that allows for automatic movement and tipping with the aid of a construction crane, thus eliminating the need for manual intervention by an operator.
Application sectors:
Finish Type:
Painted
Versions available

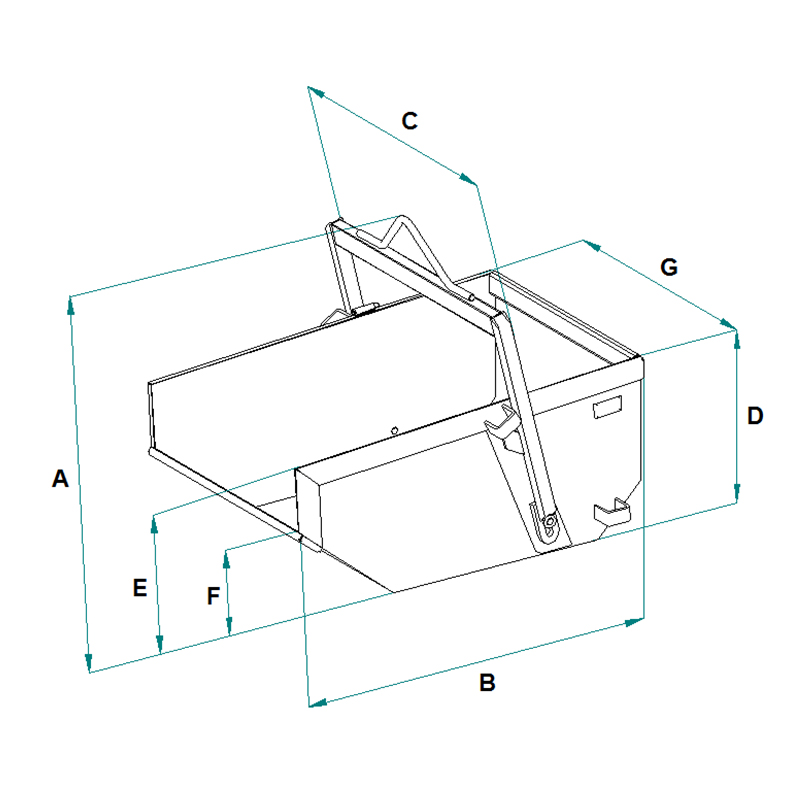

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A-30R | 600 | 300 | 90 | 1300 | 680 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||
A-60R | 1200 | 600 | 130 | 1460 | 730 | 1268 | ||||||||||||||||||||||||||||||||||||||||||||
A-80R | 1600 | 800 | 150 | 1541 | 860 | 1410 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A-30R | A-30R | 600 | 300 | 90 | 1300 | 680 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||
A-60R | A-60R | 1200 | 600 | 130 | 1460 | 730 | 1268 | ||||||||||||||||||||||||||||||||||||||||||||
A-80R | A-80R | 1600 | 800 | 150 | 1541 | 860 | 1410 |
