Crane forks
Self balancing pallet fork with adjustable tines
ITACrane fork with automatic spring balancing
The ITA crane fork is a lifting tool designed primarily for use with construction cranes. It consists of a robust frame with adjustable tines that allow the width of the tips to be adapted according to the load dimensions. The crane fork features an automatic spring balancing system and does not require any height adjustments.
Application sectors:
Construction
Lifting
Finish Type:
Painted
Versions available

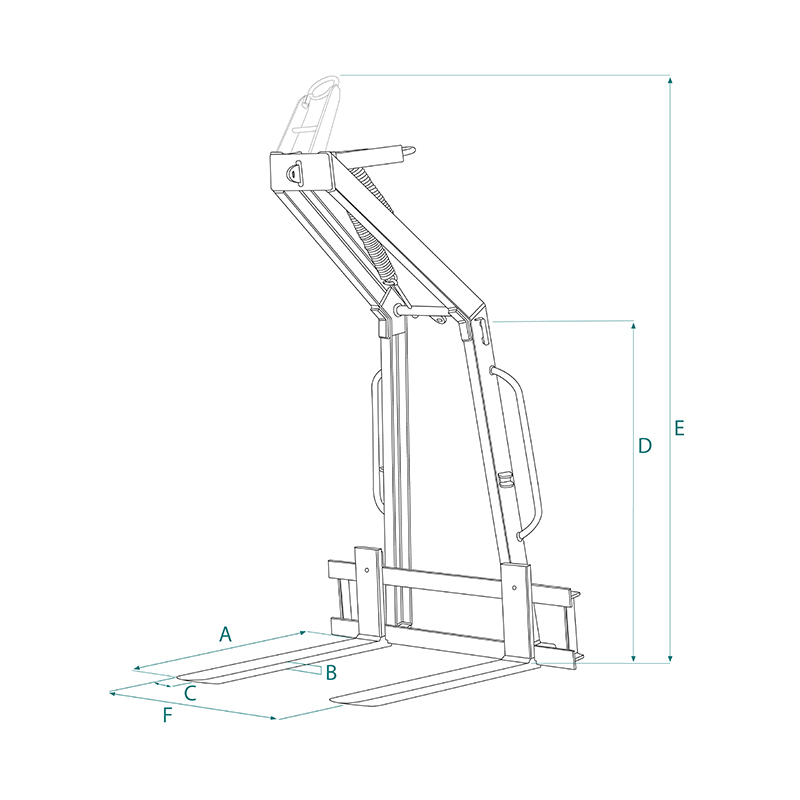

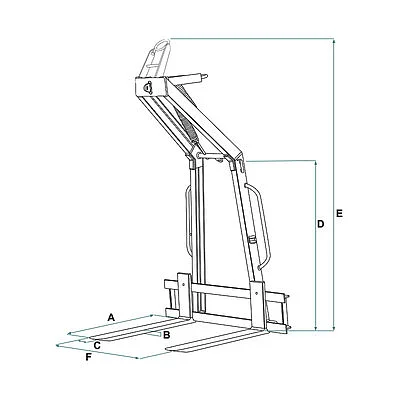

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITA-06 | 600 | 95 | 1000 | 25 | 80 | 1250 | 2500 | 160-850 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-10 | 1000 | 135 | 1000 | 25 | 90 | 1250 | 2500 | 180-850 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-13 | 1300 | 145 | 1000 | 25 | 90 | 1250 | 2500 | 180-850 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-15 | 1500 | 165 | 1000 | 30 | 90 | 1250 | 2500 | 180-1200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-20 | 2000 | 190 | 1000 | 30 | 120 | 1250 | 2500 | 240-1200 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITA-06 | ITA-06 | 600 | 95 | 1000 | 25 | 80 | 1250 | 2500 | 160-850 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-10 | ITA-10 | 1000 | 135 | 1000 | 25 | 90 | 1250 | 2500 | 180-850 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-13 | ITA-13 | 1300 | 145 | 1000 | 25 | 90 | 1250 | 2500 | 180-850 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-15 | ITA-15 | 1500 | 165 | 1000 | 30 | 90 | 1250 | 2500 | 180-1200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| ITA-20 | ITA-20 | 2000 | 190 | 1000 | 30 | 120 | 1250 | 2500 | 240-1200 | 1 |
