Concrete buckets

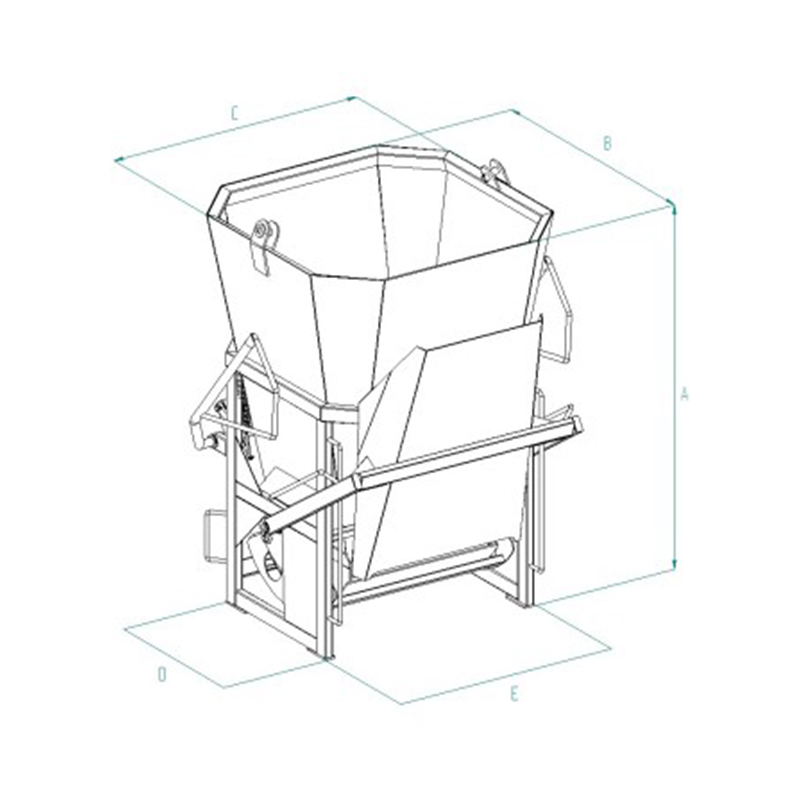

Octagonal concrete bucket with bottom and side discharge
BOCOctagonal bucket for concrete with central and side discharge
The octagonal concrete bucket model BOC has been specially designed to ensure robustness, versatility, and safety on every construction site. Characterized by a sturdy and durable structure, this bucket offers both central and side discharge, making it suitable for a wide range of on-site applications.
Application sectors:
Construction
Finish Type:
Painted
Versions available
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOC-60 | 1560 | 600 | 260 | 1330 | 960 | 970 | 485 | 590 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-80 | 2080 | 800 | 280 | 1525 | 1045 | 1045 | 485 | 590 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-99 | 2600 | 1000 | 300 | 1808 | 1027 | 1191 | 640 | 897 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-120 | 3120 | 1200 | 450 | 1755 | 1218 | 1230 | 500 | 700 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-150 | 3900 | 1500 | 490 | 1955 | 1290 | 1330 | 500 | 700 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-200 | 5200 | 2000 | 620 | 2255 | 1397 | 1481 | 500 | 700 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOC-60 | BOC-60 | 1560 | 600 | 260 | 1330 | 960 | 970 | 485 | 590 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-80 | BOC-80 | 2080 | 800 | 280 | 1525 | 1045 | 1045 | 485 | 590 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-99 | BOC-99 | 2600 | 1000 | 300 | 1808 | 1027 | 1191 | 640 | 897 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-120 | BOC-120 | 3120 | 1200 | 450 | 1755 | 1218 | 1230 | 500 | 700 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-150 | BOC-150 | 3900 | 1500 | 490 | 1955 | 1290 | 1330 | 500 | 700 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOC-200 | BOC-200 | 5200 | 2000 | 620 | 2255 | 1397 | 1481 | 500 | 700 | 1 |
