Crane forks
Manual balance crane fork with height and forks adjustable
MBR-MCrane fork with manual balancing
The height-adjustable telescopic crane fork with manual balancing and adjustable tines is designed for efficient load lifting on trucks due to its limited height clearance. With an adjustable telescopic system, adaptable tines, and manual balancing, it offers flexibility, precise control, and ease of use. Made with robust materials, it ensures durability and compliance with safety regulations.
Application sectors:
Construction
Lifting
Finish Type:
Painted
Versions available

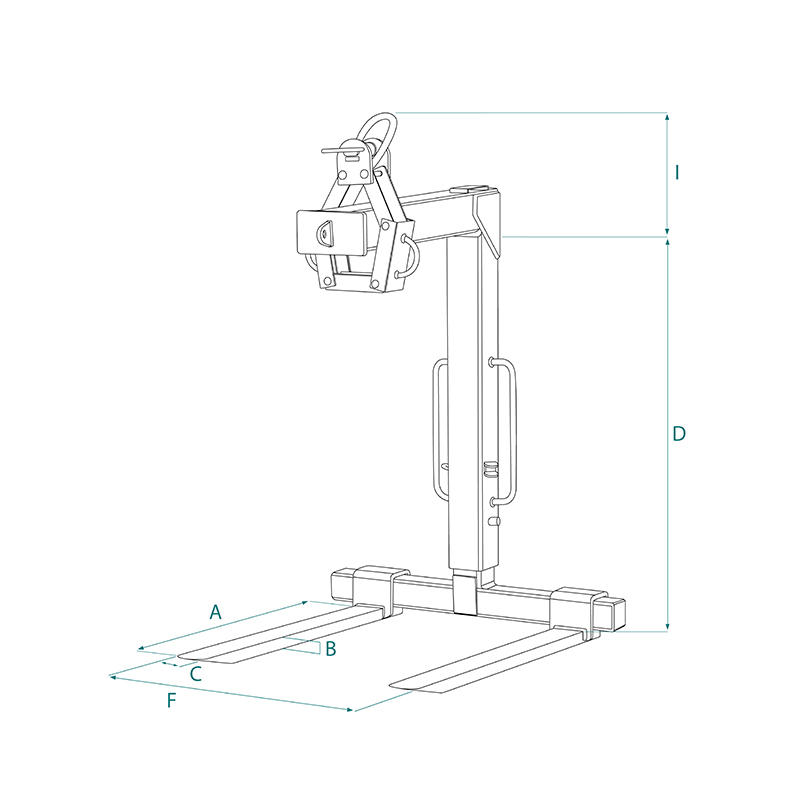

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBR-15M | 1500 | 165 | 1000 | 30 | 90 | 1150-1700 | 600 | 350-1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| MBR-20M | 2000 | 180 | 1000 | 35 | 100 | 1150-1800 | 600 | 350-1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| MBR-25M | 2500 | 225 | 1000 | 40 | 90 | 1150-1800 | 600 | 350-1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| MBR-30M | 3000 | 255 | 1000 | 35 | 120 | 1150-1800 | 600 | 350-1000 | 1 |

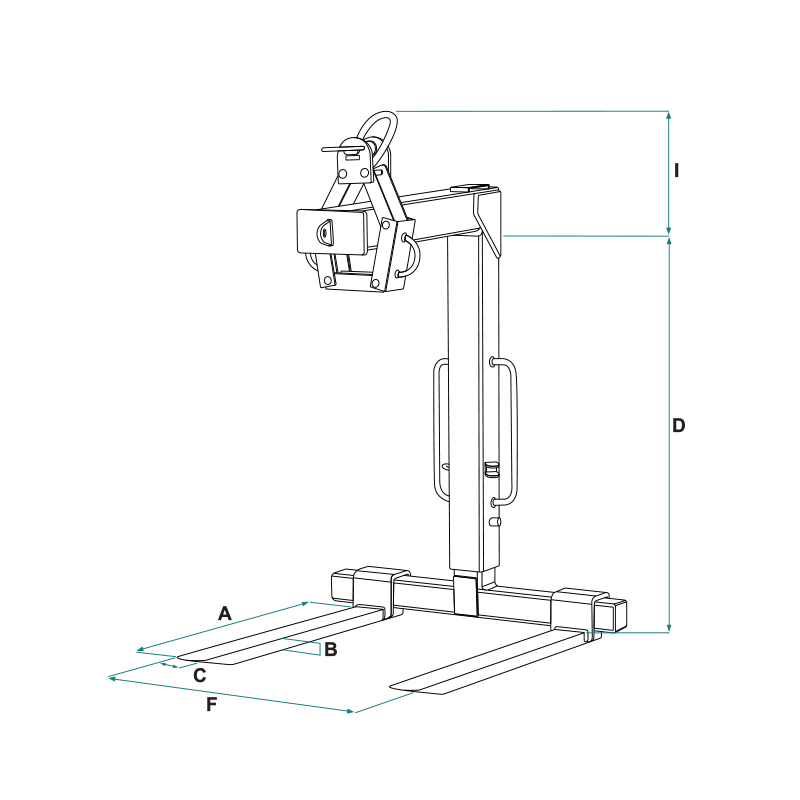

| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBR-15M | MBR-15M | 1500 | 165 | 1000 | 30 | 90 | 1150-1700 | 600 | 350-1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| MBR-20M | MBR-20M | 2000 | 180 | 1000 | 35 | 100 | 1150-1800 | 600 | 350-1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| MBR-25M | MBR-25M | 2500 | 225 | 1000 | 40 | 90 | 1150-1800 | 600 | 350-1000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| MBR-30M | MBR-30M | 3000 | 255 | 1000 | 35 | 120 | 1150-1800 | 600 | 350-1000 | 1 |
