Handling equipment

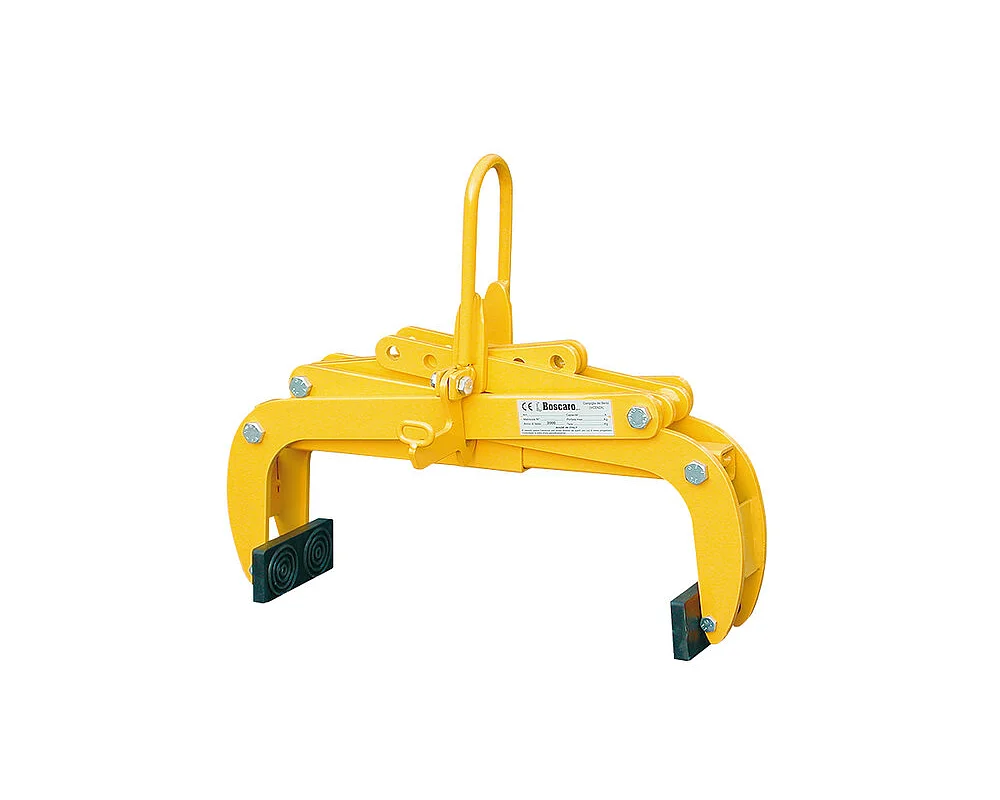

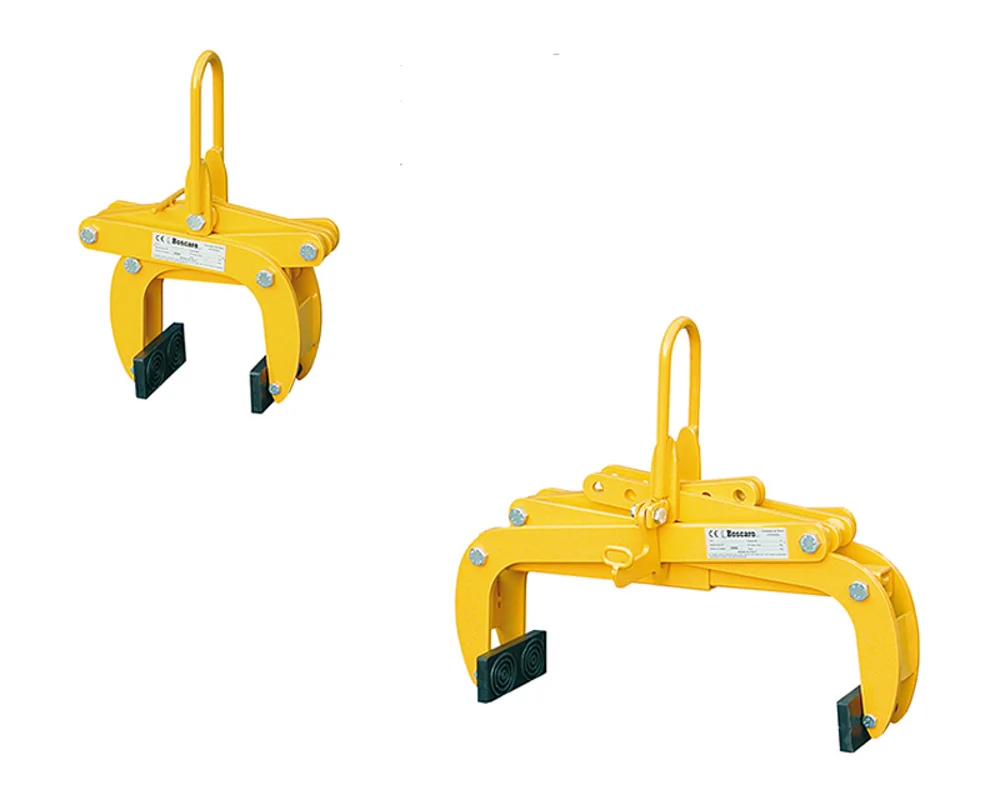

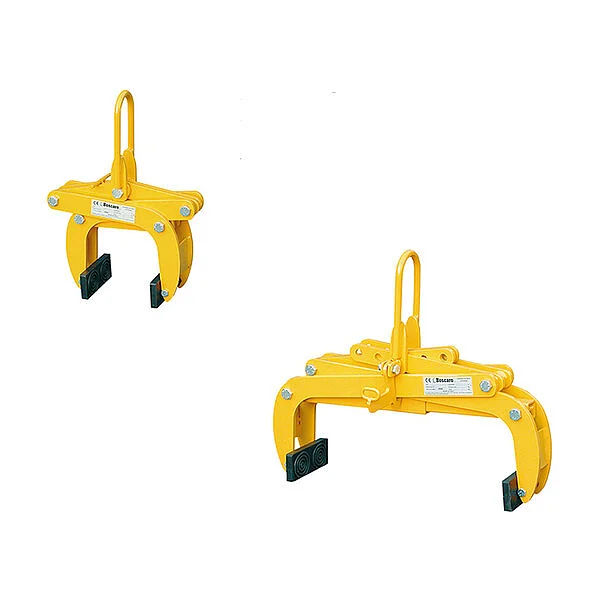

Lifting clamp for prefabricated elements

PZM

Clamp for handling prefabricated elements

The PZM range of clamps is designed for easy and safe handling of concrete elements.

Characterized by compact dimensions, lightweight construction, and ease of handling, these mechanical clamps are intended for lifting curbs, slabs, blocks, and other precast concrete elements. Equipped with replaceable rubber pads, they ensure a secure grip, minimizing the risk of damage during lifting and transportation. Their robustness enables effective handling of daily challenges in lifting heavy loads, making them an indispensable tool in construction, transportation, and installation of prefabricated materials.

All our clamps are manufactured and tested according to standards UNI EN 13155, UNI EN ISO 12100, UNI EN 349, UNI ISO 8686 and UNI EN 10204, and are issued with the

Application sectors:
Finish Type:
Painted
Versions available
Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info

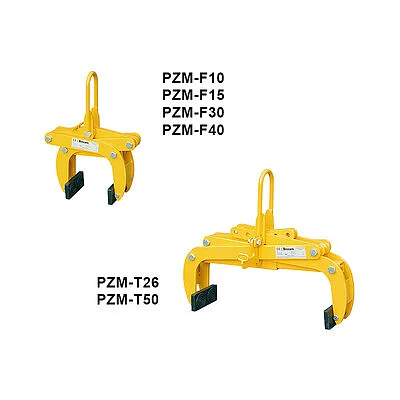

PZM-F10 1000 18 25-100
PZM-F15 1000 19 50-150
PZM-F30 1000 22 150-300
PZM-F40 1000 25 250-400
PZM-T26 1000 25 10-160/160-260
PZM-T50 1000 24 200-300/300-400/400-500
Cod. Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
PZM-F10 PZM-F10 1000 18 25-100
PZM-F15 PZM-F15 1000 19 50-150
PZM-F30 PZM-F30 1000 22 150-300
PZM-F40 PZM-F40 1000 25 250-400
PZM-T26 PZM-T26 1000 25 10-160/160-260
PZM-T50 PZM-T50 1000 24 200-300/300-400/400-500
