Concrete buckets
Laydown conical concrete kibble with levered opening
BCF-LLaydown conical concrete bucket with central discharge and lever opening
We are excited to present the BCF-L model, a laydown conical bucket designed to offer reliable and versatile performance on your construction site. Equipped with a bivalve opening operated by a lever and a central discharge, this bucket boasts a robust and durable design. The presence of a spring allows for automatic closure of the discharge, while a rope enables the bucket to be opened even at height.
Application sectors:
Construction
Finish Type:
Painted
Versions available

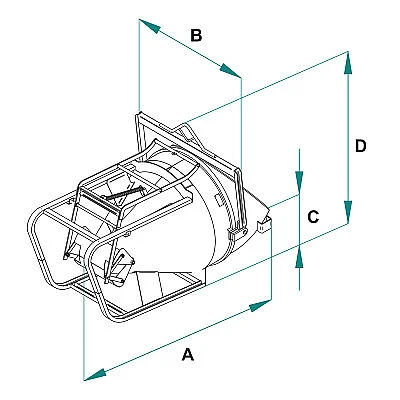

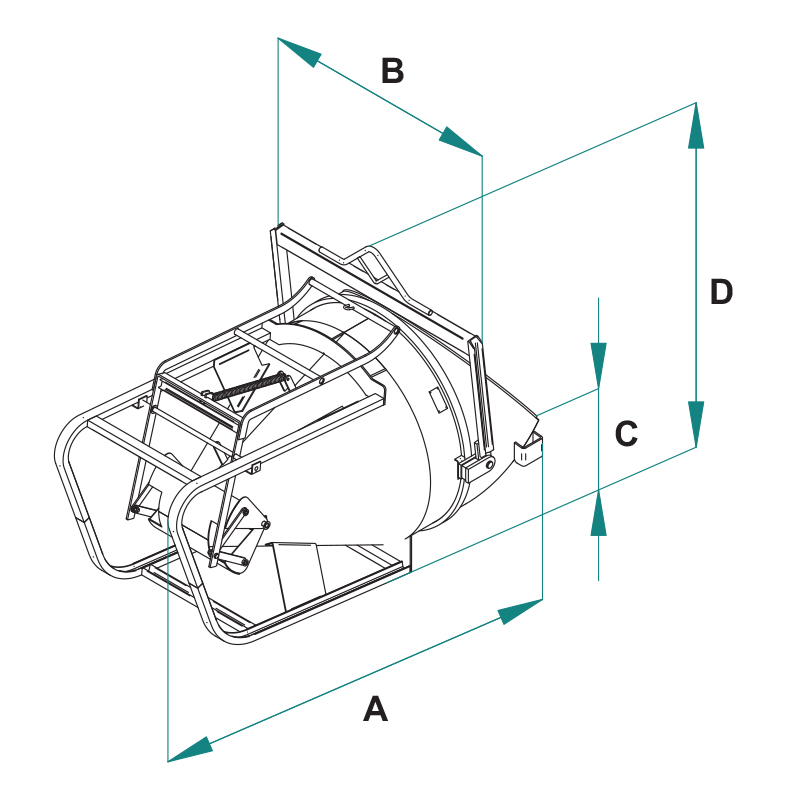

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCF-30L | 780 | 300 | 265 | 1965 | 1270 | 627 | 1495 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-50L | 1300 | 500 | 275 | 2098 | 1270 | 643 | 1512 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-75L | 1950 | 750 | 320 | 2385 | 1530 | 763 | 1782 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-99L | 2600 | 1000 | 355 | 2570 | 1530 | 786 | 1806 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-150L | 3900 | 1500 | 690 | 2781 | 1885 | 975 | 2033 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-200L | 5200 | 2000 | 720 | 3031 | 1885 | 975 | 2033 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCF-30L | BCF-30L | 780 | 300 | 265 | 1965 | 1270 | 627 | 1495 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-50L | BCF-50L | 1300 | 500 | 275 | 2098 | 1270 | 643 | 1512 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-75L | BCF-75L | 1950 | 750 | 320 | 2385 | 1530 | 763 | 1782 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-99L | BCF-99L | 2600 | 1000 | 355 | 2570 | 1530 | 786 | 1806 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-150L | BCF-150L | 3900 | 1500 | 690 | 2781 | 1885 | 975 | 2033 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCF-200L | BCF-200L | 5200 | 2000 | 720 | 3031 | 1885 | 975 | 2033 | 1 |
