Concrete buckets
Laydown conical concrete bucket with lever operated
BCF-GALaydown conical concrete bucket with lever opening
The conical concrete bucket with lever opening is a device designed for efficient lifting and transportation of concrete on construction sites using a crane. This model, characterized by its conical shape and equipped with a lever opening system, offers a practical and precise solution for distributing concrete, particularly suitable for pours on slabs and for work in hard-to-reach areas. Its laid-down configuration facilitates horizontal ground loading, simplifying the filling process with the concrete mixer and improving efficiency on site. This type of bucket is versatile and suitable for various applications, providing a reliable solution for concrete pouring needs in different construction contexts. All our skip models are built with certified materials to ensure durability and
Application sectors:
Construction
Finish Type:
Painted
Versions available

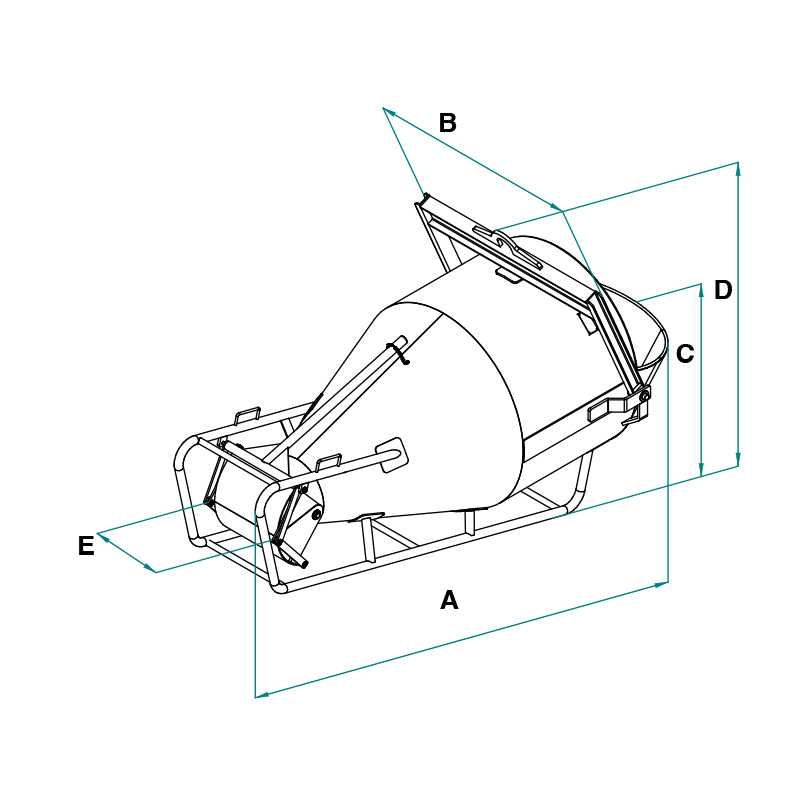

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCF-30GA | 780 | 300 | 110 | 1810 | 1020 | 635 | 1215 | 513 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-50GA | 1300 | 500 | 135 | 2150 | 1020 | 720 | 1305 | 513 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-75GA | 1950 | 750 | 250 | 2375 | 1430 | 855 | 1515 | 658 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-99GA | 2600 | 1000 | 295 | 2640 | 1430 | 925 | 1555 | 658 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-150GA | 3900 | 1500 | 355 | 3085 | 1430 | 1040 | 1670 | 658 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-200GA | 5200 | 2000 | 670 | 3285 | 2025 | 1250 | 2050 | 1020 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-300GA | 7800 | 3000 | 775 | 3720 | 2035 | 1360 | 2175 | 1020 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCF-30GA | BCF-30GA | 780 | 300 | 110 | 1810 | 1020 | 635 | 1215 | 513 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-50GA | BCF-50GA | 1300 | 500 | 135 | 2150 | 1020 | 720 | 1305 | 513 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-75GA | BCF-75GA | 1950 | 750 | 250 | 2375 | 1430 | 855 | 1515 | 658 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-99GA | BCF-99GA | 2600 | 1000 | 295 | 2640 | 1430 | 925 | 1555 | 658 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-150GA | BCF-150GA | 3900 | 1500 | 355 | 3085 | 1430 | 1040 | 1670 | 658 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-200GA | BCF-200GA | 5200 | 2000 | 670 | 3285 | 2025 | 1250 | 2050 | 1020 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BCF-300GA | BCF-300GA | 7800 | 3000 | 775 | 3720 | 2035 | 1360 | 2175 | 1020 | 1 |
