Laydown concrete skip with side discharge and levered opening
BF-CLLaydown concrete bucket with side discharge and lever opening
The laydown concrete bucket is specially designed to facilitate ground loading via the concrete mixer, thanks to its reduced edge height. This model, with its distinctive and innovative construction, features a side discharge once lifted and positioned vertically by the crane, making it ready for use. The valve is equipped with a guillotine closure operated by two side levers, ensuring precise control over the concrete pour. All our buckets are built and tested in compliance with stringent standards UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10027, and UNI EN 10204. Each product comes with a metal ID plate, a certificate of conformity, and an operation and maintenance manual to ensure correct long-term use. Furthermore, all our products are covered by a one-year warranty in
Application sectors:
Construction
Finish Type:
Painted
Versions available

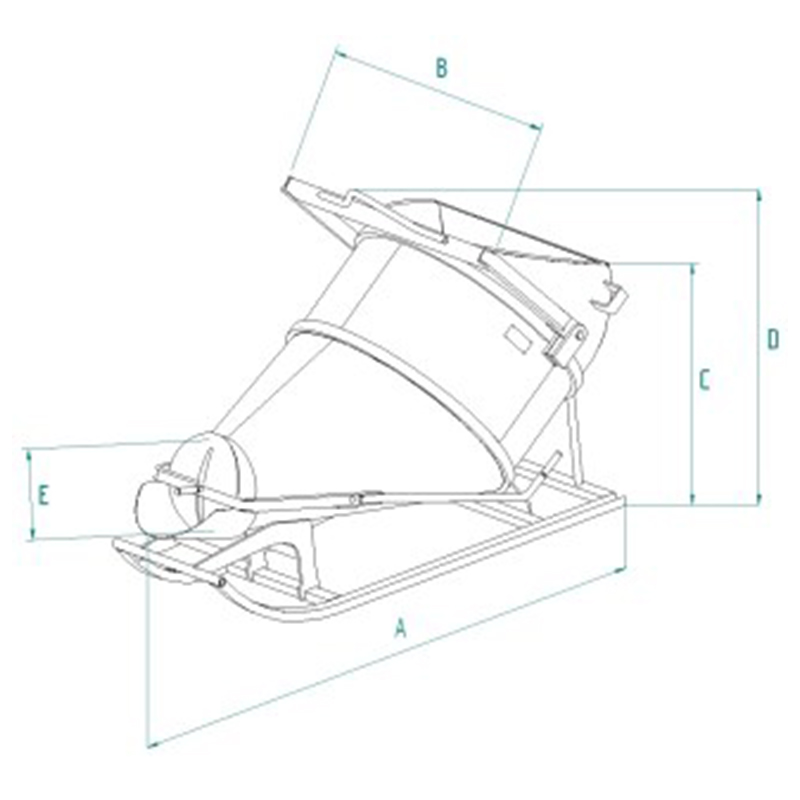

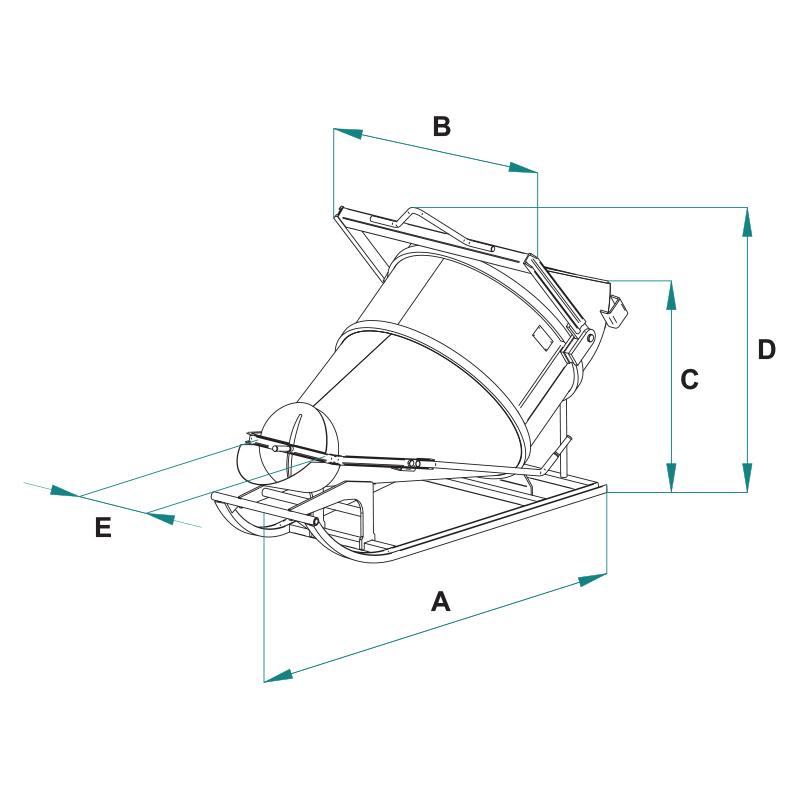

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-30CL | 780 | 300 | 130 | 1480 | 1020 | 765 | 1002 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-40CL | 1040 | 400 | 140 | 1605 | 1020 | 872 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-50CL | 1300 | 500 | 150 | 1728 | 1020 | 975 | 1212 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-75CL | 1950 | 750 | 295 | 2135 | 1350 | 1045 | 1540 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-99CL | 2600 | 1000 | 310 | 2272 | 1350 | 1137 | 1675 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-150CL | 3900 | 1500 | 590 | 2490 | 1692 | 1228 | 1845 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-200CL | 5200 | 2000 | 640 | 2775 | 1692 | 1376 | 1707 | 420 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-30CL | BF-30CL | 780 | 300 | 130 | 1480 | 1020 | 765 | 1002 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-40CL | BF-40CL | 1040 | 400 | 140 | 1605 | 1020 | 872 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-50CL | BF-50CL | 1300 | 500 | 150 | 1728 | 1020 | 975 | 1212 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-75CL | BF-75CL | 1950 | 750 | 295 | 2135 | 1350 | 1045 | 1540 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-99CL | BF-99CL | 2600 | 1000 | 310 | 2272 | 1350 | 1137 | 1675 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-150CL | BF-150CL | 3900 | 1500 | 590 | 2490 | 1692 | 1228 | 1845 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-200CL | BF-200CL | 5200 | 2000 | 640 | 2775 | 1692 | 1376 | 1707 | 420 | 1 |
