Concrete buckets
Hydraulic concrete bucket with forklift pockets

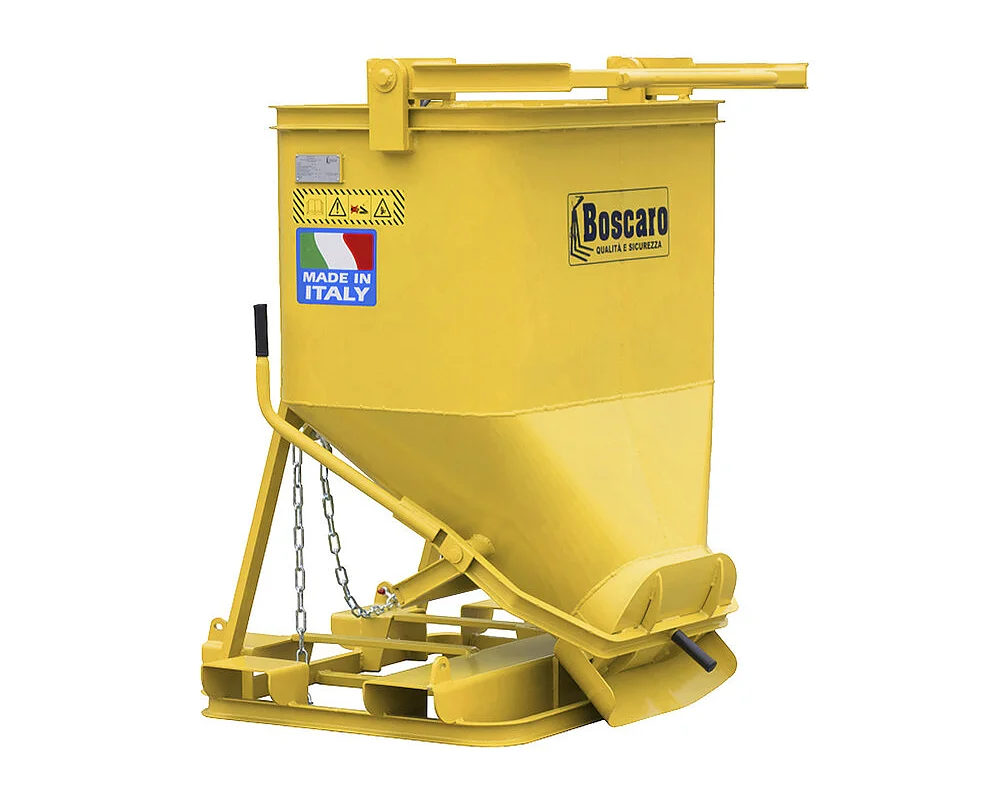

BOT-IBucket for concrete with forkliftable base and hydraulic opening
Introducing the BOT-I model, our innovative concrete bucket designed to deliver outstanding performance while ensuring maximum safety and reliability on your construction site. This model features a side discharge controlled by a hydraulic guillotine closure and flexible hydraulic rubber hoses with quick couplings, facilitating seamless integration with telehandlers or forklifts. The hydraulic opening allows operators to open and close the bucket valve and adjust the discharge directly from the machine using dedicated levers. This ensures controlled and reliable concrete pouring, providing greater operational flexibility.
Application sectors:
Construction
Finish Type:
Painted
Versions available

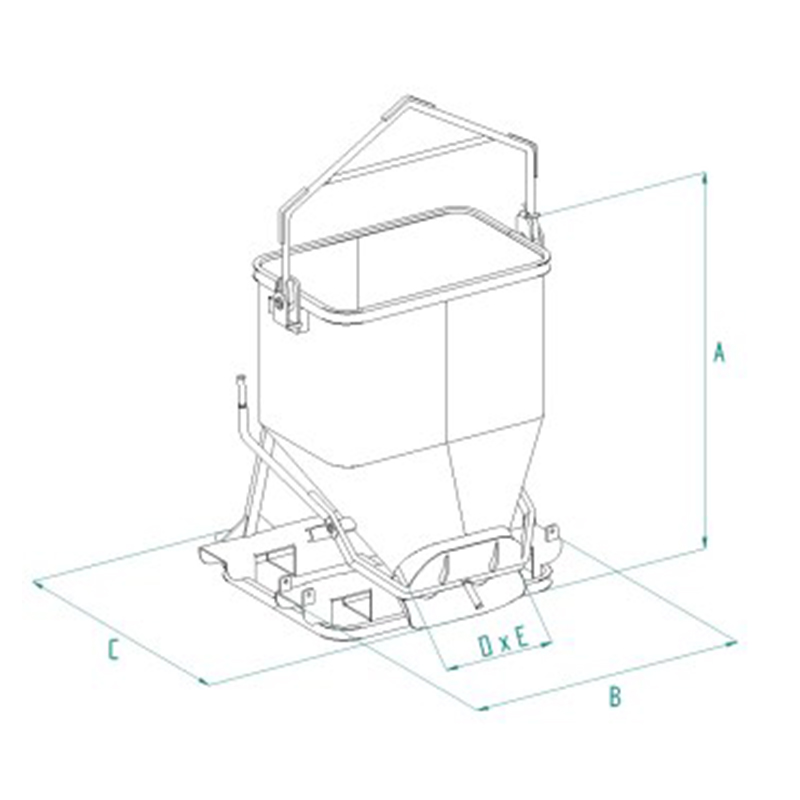

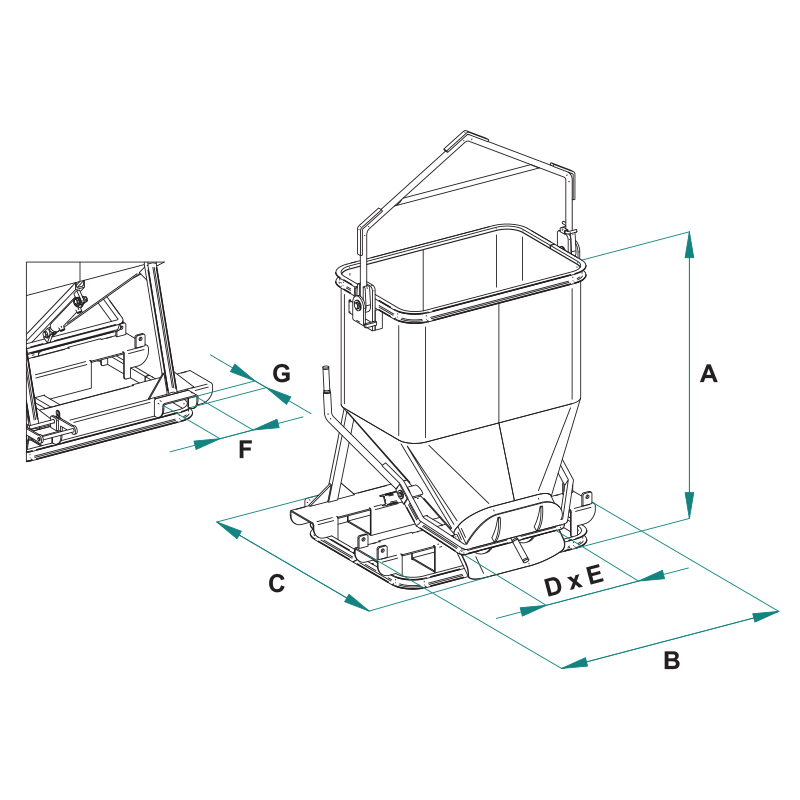

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOT-60I | 1560 | 600 | 245 | 1390 | 1439 | 924 | 498x285 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-99I | 2600 | 1000 | 420 | 1552 | 1234 | 1287 | 700x285 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOT-60I | BOT-60I | 1560 | 600 | 245 | 1390 | 1439 | 924 | 498x285 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-99I | BOT-99I | 2600 | 1000 | 420 | 1552 | 1234 | 1287 | 700x285 | 1 |
