Concrete buckets
Heavy duty conical concrete bucket with bottom and side discharge
CL-NHeavy duty conical concrete bucket with central and side discharge
The CL-N model is designed for handling large volumes of concrete on-site, featuring a reinforced structure to ensure strength and durability. Characterized by a practical and simple design, it has a lowered edge height to facilitate filling with a truck mixer. The convenient handle assists the operator in opening the bi-valve discharge, while the two springs positioned near it make closing easier. This model is also equipped with a removable lateral discharge chute that allows directing the flow in different directions, offering greater flexibility and control during discharge operations. To ensure safety during lifting and transport, buckets with a capacity of 2500 liters and above have 4 lifting rings instead of the traditional lifting arm. On request, the CL-N model can also be
Application sectors:
Construction
Finish Type:
Painted
Versions available

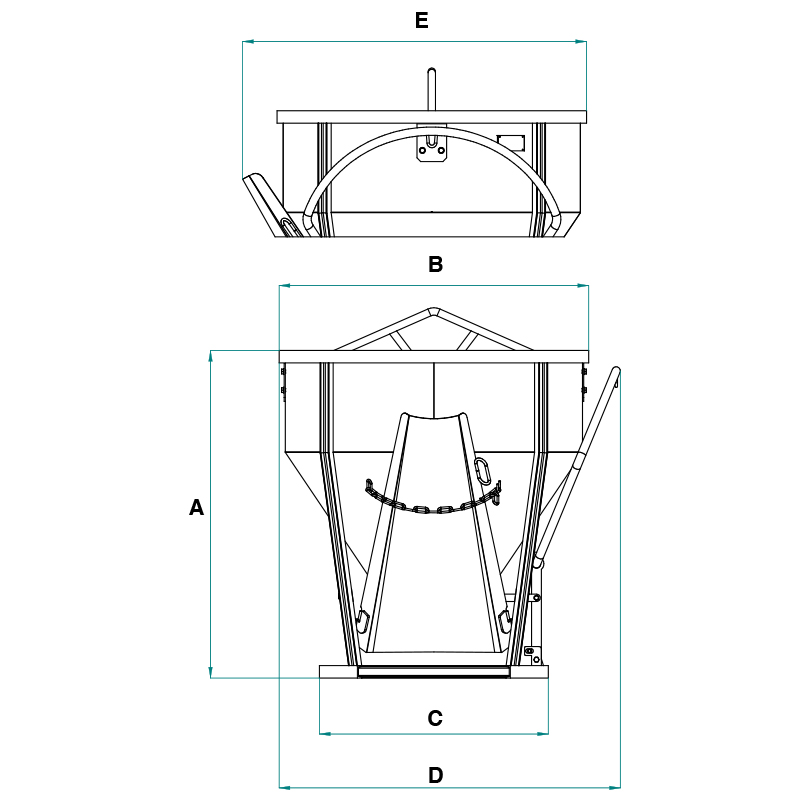

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-50N | 1300 | 500 | 115 | 1130 | 1050 | 885 | 1150 | 1205 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-80N | 2080 | 800 | 175 | 1322 | 1250 | 925 | 1378 | 1387 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-99N | 2600 | 1000 | 240 | 1262 | 1590 | 964 | 1688 | 1777 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-150N | 3900 | 1500 | 295 | 1525 | 1590 | 964 | 1660 | 1777 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-200N | 5200 | 2000 | 390 | 1525 | 1850 | 1224 | 1920 | 2057 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-250N | 6500 | 2500 | 425 | 1727 | 1884 | 1224 | 1937 | 2072 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-300N | 7800 | 3000 | 605 | 1920 | 1884 | 1224 | 1937 | 2072 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-50N | CL-50N | 1300 | 500 | 115 | 1130 | 1050 | 885 | 1150 | 1205 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-80N | CL-80N | 2080 | 800 | 175 | 1322 | 1250 | 925 | 1378 | 1387 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-99N | CL-99N | 2600 | 1000 | 240 | 1262 | 1590 | 964 | 1688 | 1777 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-150N | CL-150N | 3900 | 1500 | 295 | 1525 | 1590 | 964 | 1660 | 1777 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-200N | CL-200N | 5200 | 2000 | 390 | 1525 | 1850 | 1224 | 1920 | 2057 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-250N | CL-250N | 6500 | 2500 | 425 | 1727 | 1884 | 1224 | 1937 | 2072 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CL-300N | CL-300N | 7800 | 3000 | 605 | 1920 | 1884 | 1224 | 1937 | 2072 | 1 |
