Boat skips

Forklift shovel

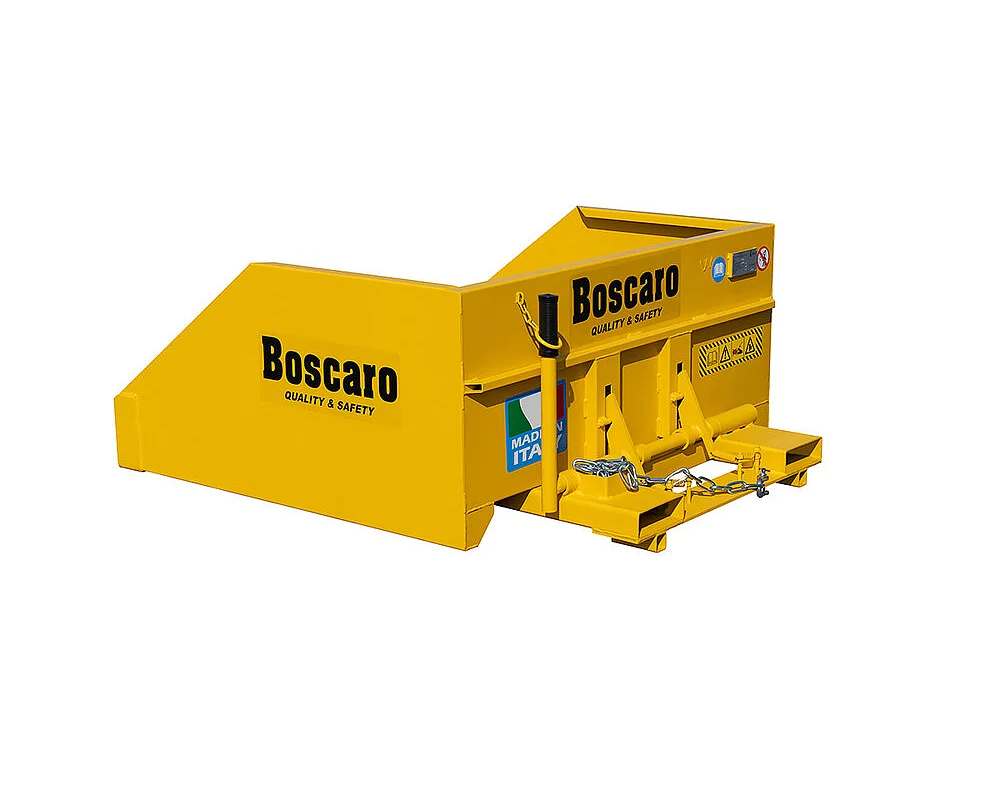

BR

Forklift shovel with automatic tilting

The BR model represents a modern forklift bucket with automatic tipping, designed to enhance efficiency and convenience in construction projects. With this innovative equipment, you can forget the complications of manual tipping: the BR bucket simplifies your workflow, ensuring smooth and precise material handling.
Application sectors:
Construction
Finish Type:
Painted
Download technical data sheet Regulations
Request information
Versions available

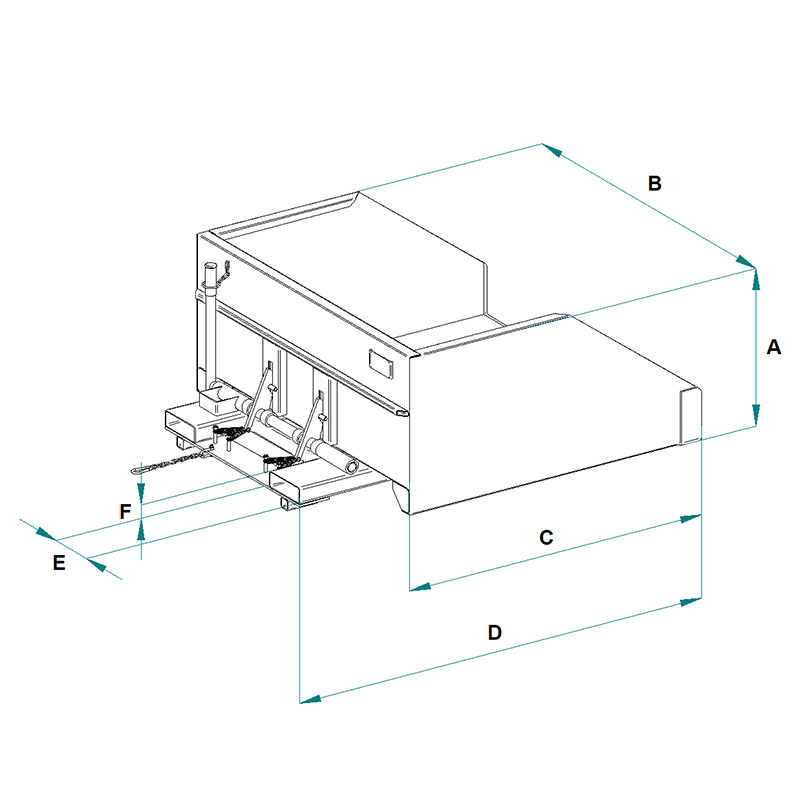

Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
BR-30 1120 300 160 593 1118 1157 1441 172 52
BR-50 1300 500 185 593 1284 1157 1441 172 52
BR-99 2240 1000 240 673 1824 1250 1534 172 52
BR-150 2470 1500 250 673 1924 1250 1534 172 52
Cod. Products Code Image Active variant image Custom price lists Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Tube Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diametre (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. length tubes (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name Request Info
BR-30 BR-30 1120 300 160 593 1118 1157 1441 172 52
BR-50 BR-50 1300 500 185 593 1284 1157 1441 172 52
BR-99 BR-99 2240 1000 240 673 1824 1250 1534 172 52
BR-150 BR-150 2470 1500 250 673 1924 1250 1534 172 52
