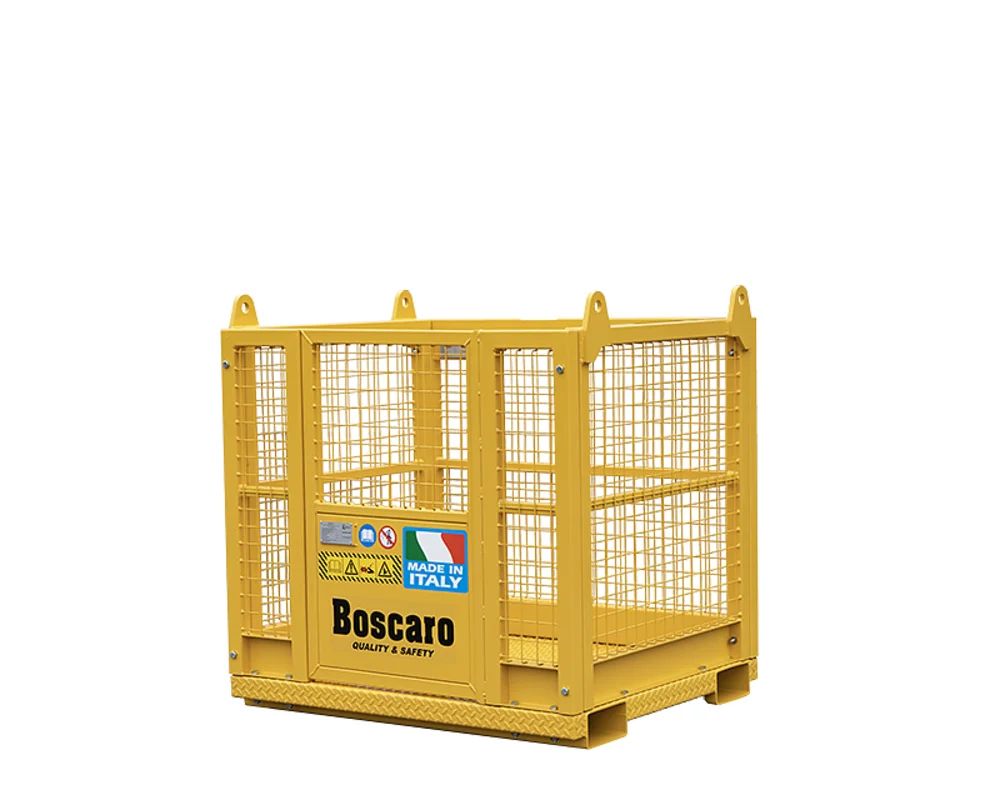

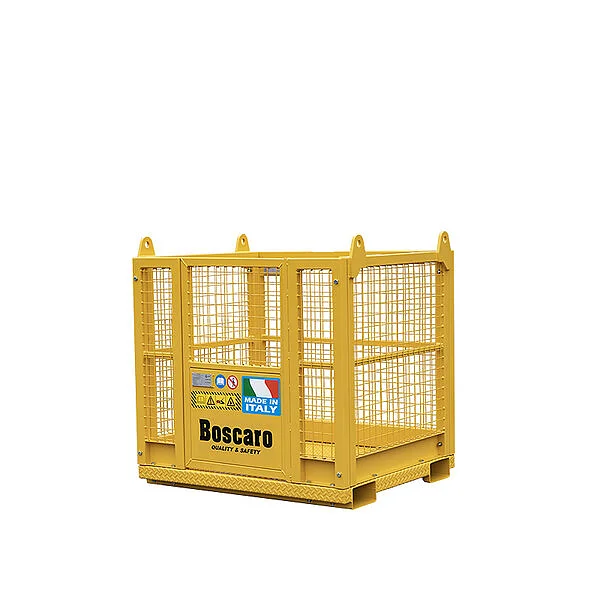

Detachable crane man basket
CPP-ASDetachable crane man basket without roof
The detachable crane man basket is designed to ensure safety, practicality, and maximum operational efficiency in lifting and height maintenance operations.

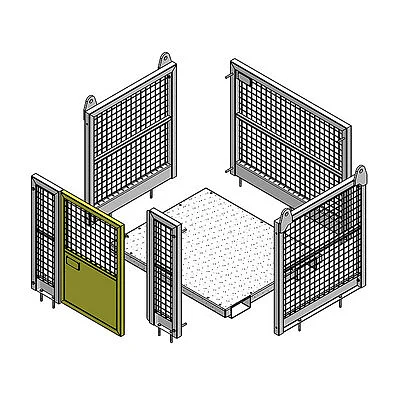

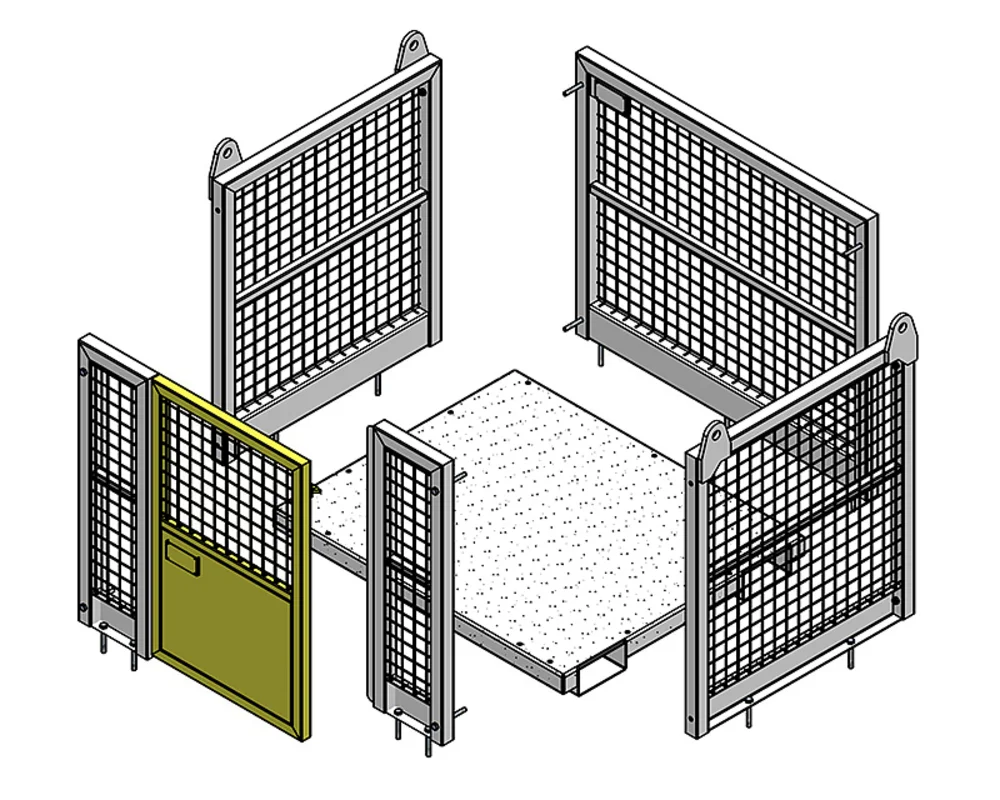

The structure is detachable into 5 side panels and a base frame, a feature that allows highly efficient handling both during transport and storage. Once disassembled, the basket significantly reduces its overall dimensions, facilitating logistics and optimizing space in warehouses or transport vehicles.
When assembled, the side panels are bolted together and further secured to the base frame, ensuring a stable, rigid, and safe structure during use. The bolted assembly system allows for quick and repeatable installation without compromising the overall strength of the device.
The
Lifting

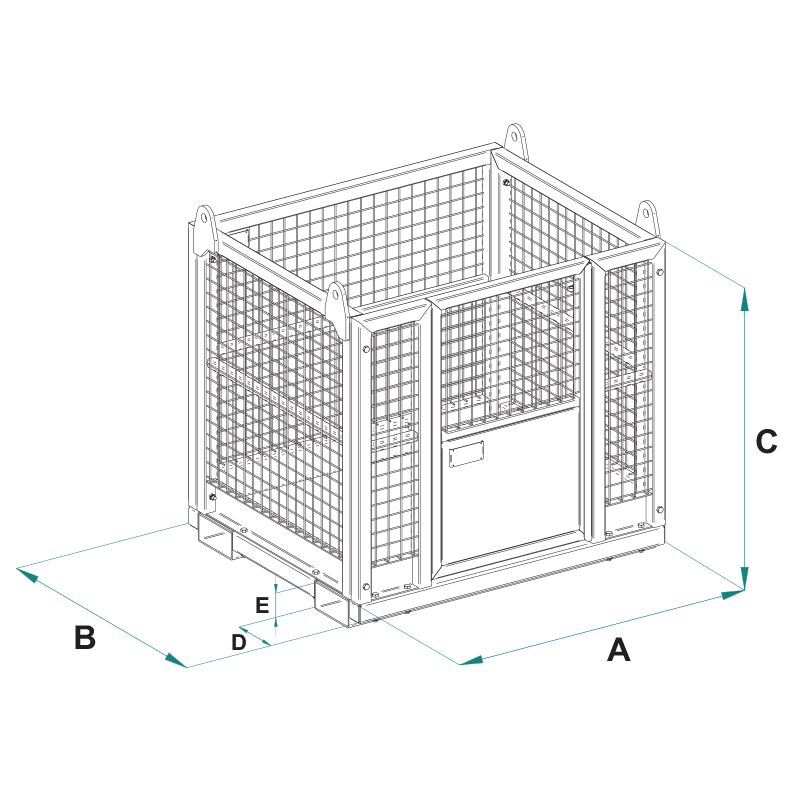

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPP-AS2 | 300 | 219 | 1200 | 1000 | 1105 | 190 | 90 | 2 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPP-AS2 | CPP-AS2 | 300 | 219 | 1200 | 1000 | 1105 | 190 | 90 | 2 | 1 |
