Self dumping bins
Cranelift Builders Skip

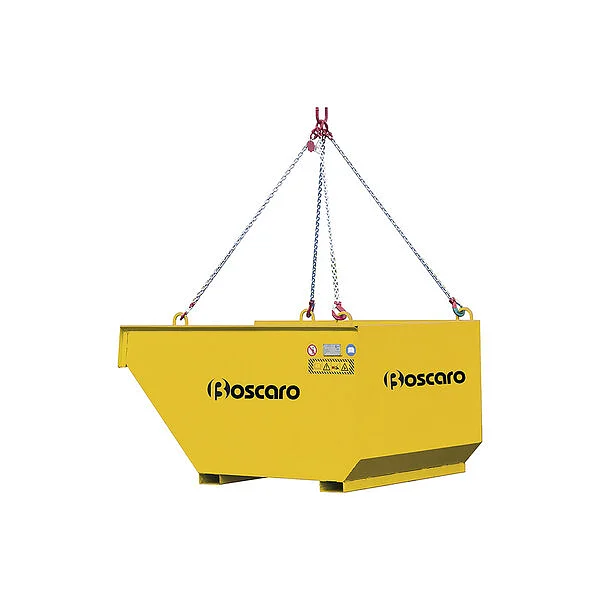

M-DBucket for debris and aggregates with 4 lifting points and forklift pockets
The M-D model is a bucket specifically designed for lifting and transporting aggregates and construction waste. This bucket features four lifting points, making it extremely stable during lifting and handling operations. It is also designed to be moved with telescopic handlers or forklifts.
Application sectors:
Construction
Finish Type:
Painted
Versions available

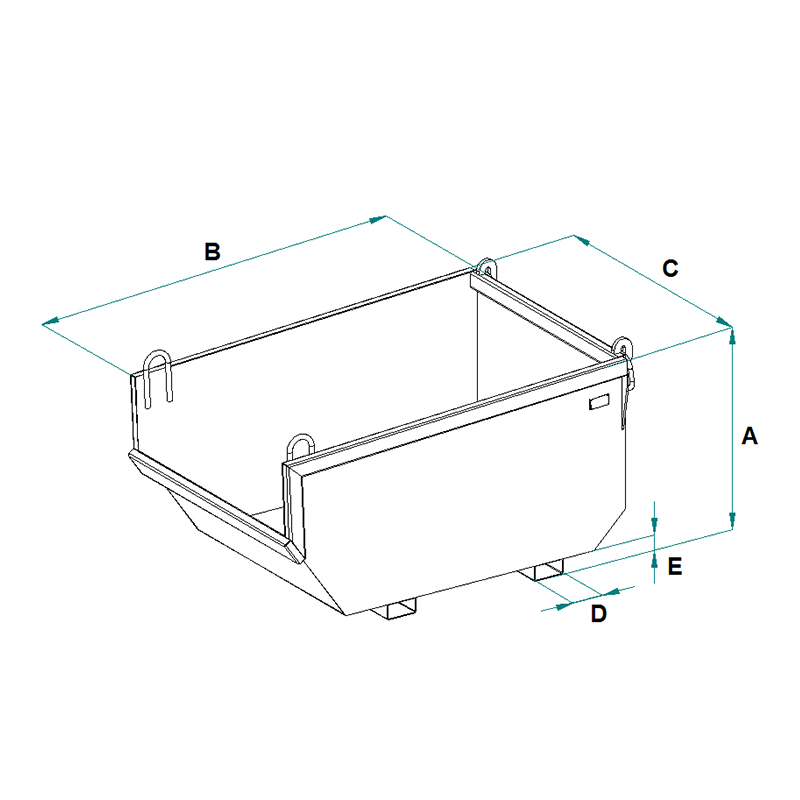

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

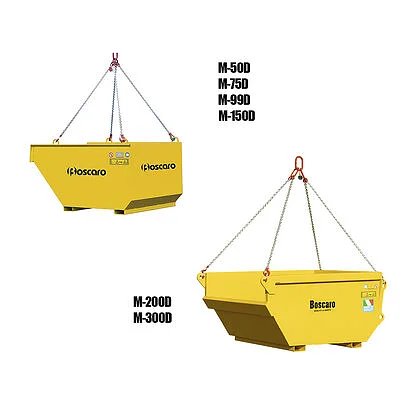

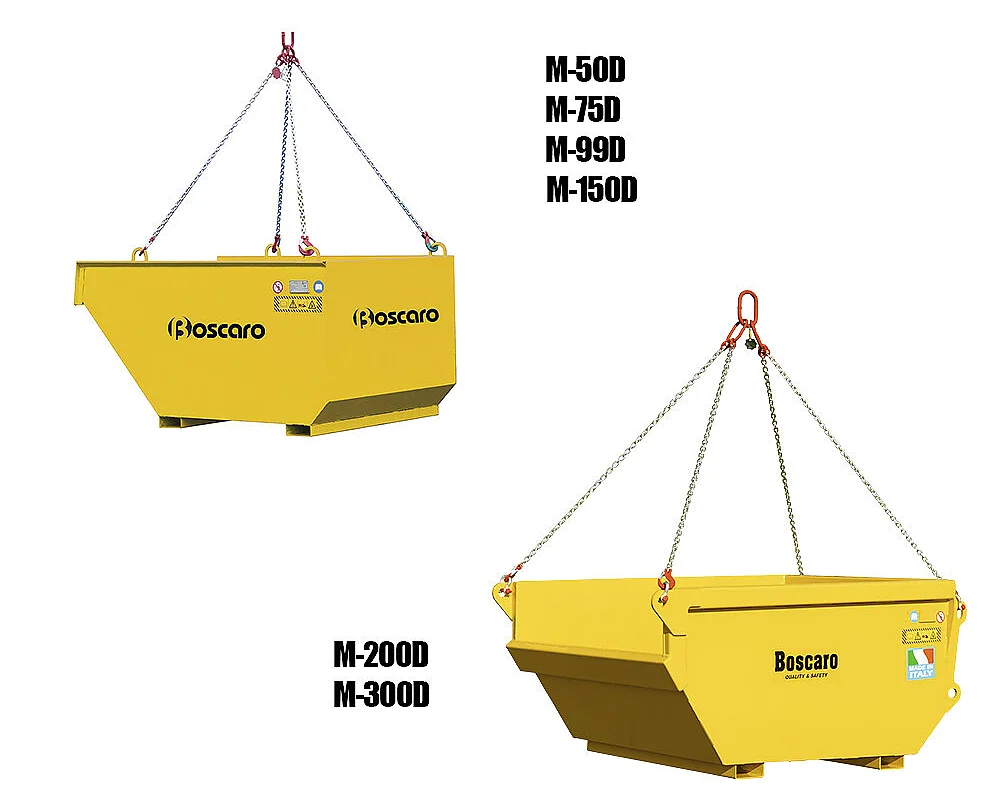

| M-50D | 1000 | 500 | 95 | 680 | 1250 | 900 | 180 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| M-75D | 1500 | 750 | 100 | 760 | 1520 | 1080 | 180 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| M-99D | 2000 | 1000 | 150 | 860 | 1680 | 1280 | 180 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| M-150D | 3000 | 1500 | 190 | 860 | 1700 | 1340 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| M-200D | 4000 | 2000 | 465 | 1126 | 2070 | 1412 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| M-300D | 6000 | 3000 | 550 | 1300 | 2350 | 1762 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M-50D | M-50D | 1000 | 500 | 95 | 680 | 1250 | 900 | 180 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| M-75D | M-75D | 1500 | 750 | 100 | 760 | 1520 | 1080 | 180 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| M-99D | M-99D | 2000 | 1000 | 150 | 860 | 1680 | 1280 | 180 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
| M-150D | M-150D | 3000 | 1500 | 190 | 860 | 1700 | 1340 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| M-200D | M-200D | 4000 | 2000 | 465 | 1126 | 2070 | 1412 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| M-300D | M-300D | 6000 | 3000 | 550 | 1300 | 2350 | 1762 | 1 |
