Boat skips
Crane tipping skip
A-MSelf dumping boat skip for aggregates and debris for crane
The A-M Model: An Excellent Solution for Handling Debris and Aggregates on Construction Sites
Application sectors:
Finish Type:
Painted
Versions available

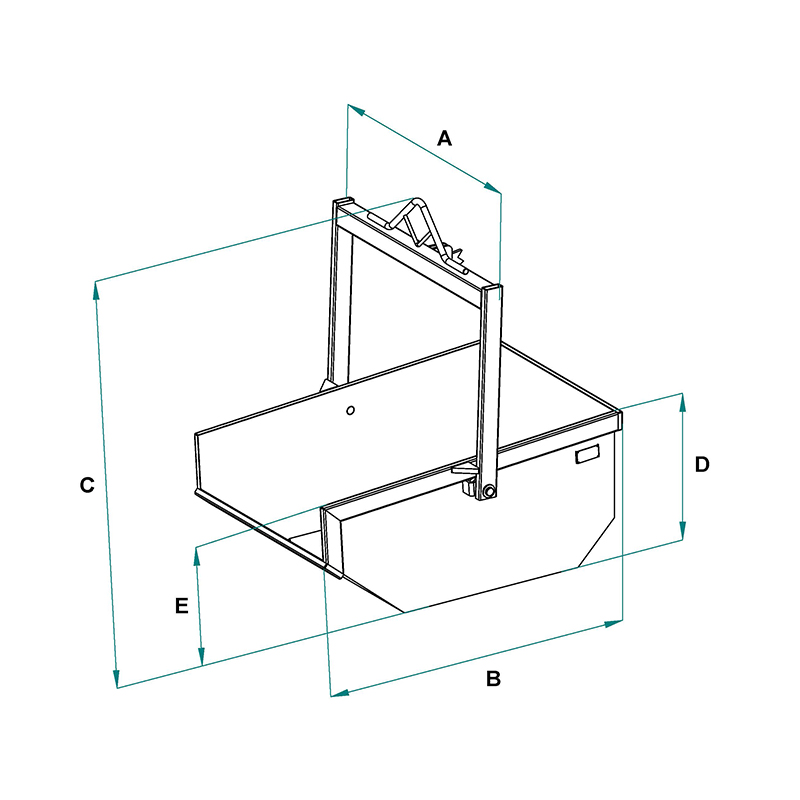

Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A-35M | 700 | 350 | 90 | 1377 | 1366 | 1070 | 540 | 450 | ||||||||||||||||||||||||||||||||||||||||||
A-50M | 1000 | 500 | 115 | 1473 | 1469 | 1165 | 590 | 490 | ||||||||||||||||||||||||||||||||||||||||||
A-80M | 1600 | 800 | 180 | 1752 | 1683 | 1279 | 735 | 605 | ||||||||||||||||||||||||||||||||||||||||||
A-99M | 2000 | 1000 | 255 | 1863 | 1847 | 1350 | 765 | 665 | ||||||||||||||||||||||||||||||||||||||||||
A-150M | 3000 | 1500 | 320 | 1978 | 1941 | 1343 | 900 | 805 | ||||||||||||||||||||||||||||||||||||||||||
A-200M | 4000 | 2000 | 515 | 2066 | 2123 | 1642 | 940 | 840 |
Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A-35M | A-35M | 700 | 350 | 90 | 1377 | 1366 | 1070 | 540 | 450 | ||||||||||||||||||||||||||||||||||||||||||
A-50M | A-50M | 1000 | 500 | 115 | 1473 | 1469 | 1165 | 590 | 490 | ||||||||||||||||||||||||||||||||||||||||||
A-80M | A-80M | 1600 | 800 | 180 | 1752 | 1683 | 1279 | 735 | 605 | ||||||||||||||||||||||||||||||||||||||||||
A-99M | A-99M | 2000 | 1000 | 255 | 1863 | 1847 | 1350 | 765 | 665 | ||||||||||||||||||||||||||||||||||||||||||
A-150M | A-150M | 3000 | 1500 | 320 | 1978 | 1941 | 1343 | 900 | 805 | ||||||||||||||||||||||||||||||||||||||||||
A-200M | A-200M | 4000 | 2000 | 515 | 2066 | 2123 | 1642 | 940 | 840 |
