Boat skips
Crane tilting bucket

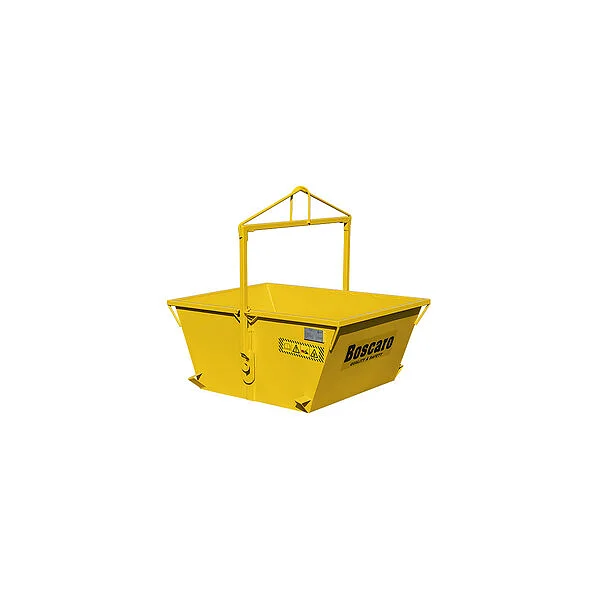

ATrapezoidal boat skip for crane with tilting on both sides
Model A is a crane bucket designed with the distinctive feature of being able to tip on two sides, providing considerable versatility for various applications on construction sites. This feature, combined with the uniform height of the walls, greatly simplifies the handling and dumping operations of materials of various sizes. The bucket is built and tested according to safety standards and comes with a metal nameplate, certificate of conformity, and user and maintenance manual. We offer a one-year warranty on our products in compliance with the European Directive. If you need more details or have specific questions, don't hesitate to ask. We are here to help.
Application sectors:
Construction
Finish Type:
Painted
Versions available

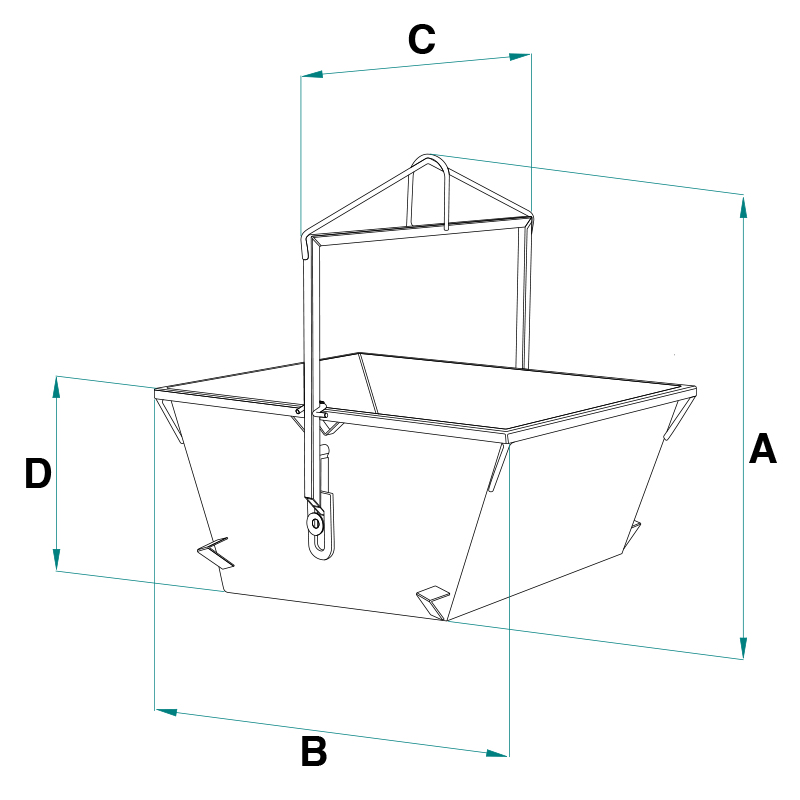

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-15 | 300 | 150 | 43 | 970 | 860 | 615 | 465 | |||||||||||||||||||||||||||||||||||||||||||
| A-25 | 500 | 250 | 55 | 950 | 1060 | 715 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-30 | 600 | 300 | 60 | 1000 | 1100 | 815 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-40 | 800 | 400 | 70 | 1050 | 1240 | 865 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-50 | 1000 | 500 | 100 | 1100 | 1390 | 916 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-99 | 2000 | 1000 | 160 | 1570 | 1700 | 1120 | 700 | |||||||||||||||||||||||||||||||||||||||||||
| A-150 | 3000 | 1500 | 270 | 2000 | 1960 | 1400 | 800 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-15 | A-15 | 300 | 150 | 43 | 970 | 860 | 615 | 465 | |||||||||||||||||||||||||||||||||||||||||||
| A-25 | A-25 | 500 | 250 | 55 | 950 | 1060 | 715 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-30 | A-30 | 600 | 300 | 60 | 1000 | 1100 | 815 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-40 | A-40 | 800 | 400 | 70 | 1050 | 1240 | 865 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-50 | A-50 | 1000 | 500 | 100 | 1100 | 1390 | 916 | 500 | |||||||||||||||||||||||||||||||||||||||||||
| A-99 | A-99 | 2000 | 1000 | 160 | 1570 | 1700 | 1120 | 700 | |||||||||||||||||||||||||||||||||||||||||||
| A-150 | A-150 | 3000 | 1500 | 270 | 2000 | 1960 | 1400 | 800 |
