Concrete buckets
Conical concrete bucket with rubber hose and valve at the end of the hose

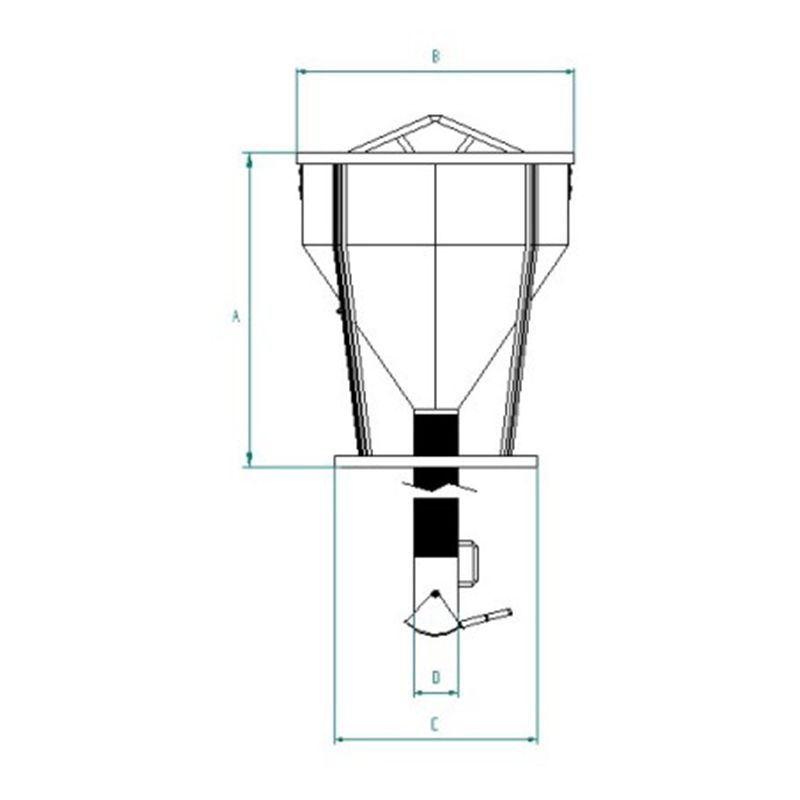

CT-VALTConical concrete bucket with central discharge, rubber hose, and valve at the end of the hose
We are pleased to introduce our CT-VALT model conical concrete bucket, designed to offer a more efficient and controlled pouring experience. The CT-VALT model features a central discharge with a robust and flexible 150 mm diameter rubber hose, equipped with a manual opening and closing valve at the end. This feature allows greater control over the flow of concrete during pouring, enabling quick and precise interruption and resumption of pouring.
Application sectors:
Construction
Finish Type:
Painted
Versions available
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-40VALT | 1040 | 400 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| CT-50VALT | 1300 | 500 | 110 | 1250 | 1050 | 880 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-80VALT | 2080 | 800 | 155 | 1490 | 1250 | 930 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-99VALT | 2600 | 1000 | 170 | 1770 | 1345 | 1080 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-150VALT | 3900 | 1500 | 230 | 2170 | 1255 | 950 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-150NVALT | 3900 | 1500 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| CT-200NVALT | 5200 | 2000 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-40VALT | CT-40VALT | 1040 | 400 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| CT-50VALT | CT-50VALT | 1300 | 500 | 110 | 1250 | 1050 | 880 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-80VALT | CT-80VALT | 2080 | 800 | 155 | 1490 | 1250 | 930 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-99VALT | CT-99VALT | 2600 | 1000 | 170 | 1770 | 1345 | 1080 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-150VALT | CT-150VALT | 3900 | 1500 | 230 | 2170 | 1255 | 950 | 150 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-150NVALT | CT-150NVALT | 3900 | 1500 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| CT-200NVALT | CT-200NVALT | 5200 | 2000 | 1 |
