Concrete buckets
Conical concrete bucket with rubber hose and operator platform
CT-PConical concrete bucket with central discharge, rubber hose and operator platform
We are excited to introduce the CT-P model conical concrete bucket, carefully designed to ensure optimal performance and precision in your large-scale construction pouring projects. The CT-P model features a central discharge with a rubber hose and lever-operated opening, with automatic spring closure. The platform directly connected to the base of the bucket ensures a smoother and safer working experience, allowing the operator to be closer to the pouring location. The bucket is lifted with a four-legs chain sling and includes a 2-meter-long, 200 mm diameter tube, which can also be provided in different sizes and lengths upon request, to fit the specific needs of your project. We offer the CT-P model in various capacities, as specified in the table below. All our buckets are built and
Application sectors:
Construction
Finish Type:
Painted
Versions available

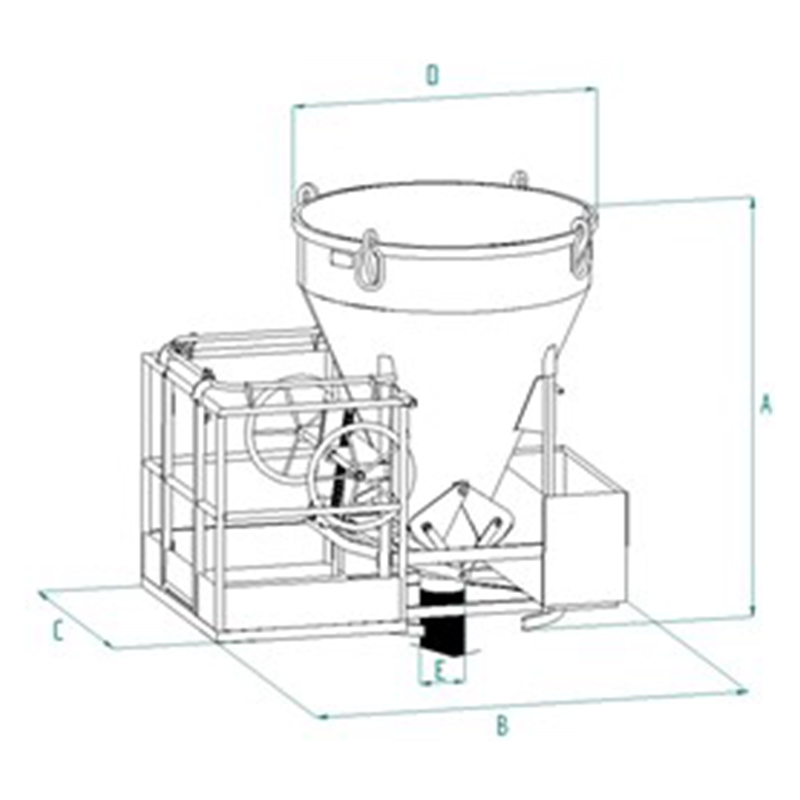

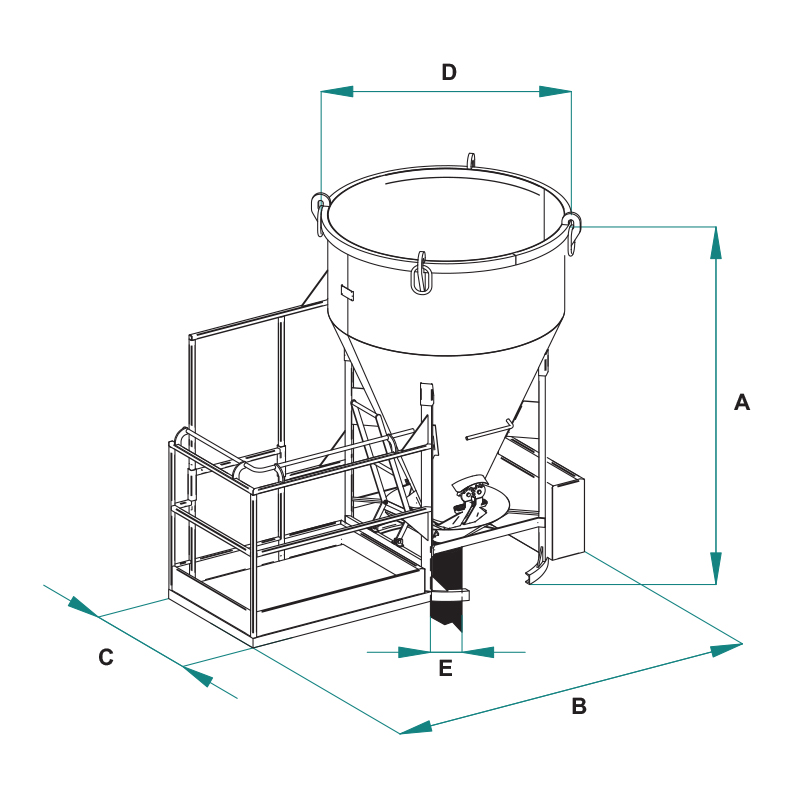

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-50P | 1300 | 500 | 315 | 1250 | 1930 | 1200 | 1050 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-80P | 2080 | 800 | 360 | 1490 | 1930 | 1200 | 1250 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-99P | 2600 | 1000 | 390 | 1802 | 1930 | 1200 | 1350 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-150P | 3900 | 1500 | 440 | 2182 | 1930 | 1200 | 1350 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-200P | 5200 | 2000 | 465 | 2480 | 1930 | 1200 | 1350 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-250P | 6500 | 2500 | 680 | 1904 | 1930 | 1200 | 1885 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-300P | 7800 | 3000 | 800 | 2180 | 1930 | 1200 | 1885 | 200 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-50P | CT-50P | 1300 | 500 | 315 | 1250 | 1930 | 1200 | 1050 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-80P | CT-80P | 2080 | 800 | 360 | 1490 | 1930 | 1200 | 1250 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-99P | CT-99P | 2600 | 1000 | 390 | 1802 | 1930 | 1200 | 1350 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-150P | CT-150P | 3900 | 1500 | 440 | 2182 | 1930 | 1200 | 1350 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-200P | CT-200P | 5200 | 2000 | 465 | 2480 | 1930 | 1200 | 1350 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-250P | CT-250P | 6500 | 2500 | 680 | 1904 | 1930 | 1200 | 1885 | 200 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| CT-300P | CT-300P | 7800 | 3000 | 800 | 2180 | 1930 | 1200 | 1885 | 200 | 1 |
