Concrete buckets
Conical concrete bucket with rubber hose and forklift pockets
CT-STConical concrete bucket with rubber hose and forkliftable base
We are excited to introduce the CT-ST model conical concrete bucket, featuring a forkable base designed for use with forklifts or telescopic handlers. This ensures greater convenience and versatility during handling operations on site. The base is also equipped with a special locking mechanism to prevent slipping from fork tips, ensuring increased safety during use. The bucket is equipped with a flexible rubber hose and lever-operated opening, complete with rope and two springs to facilitate the opening and closing of the discharge valve. This configuration provides precise and uniform control of the concrete pour, making the bucket ideal for use on formworks and pillars. The standard rubber hose has a length of 2 meters and a diameter of 200 mm,but can be customized according to your
Application sectors:
Construction
Finish Type:
Painted
Versions available

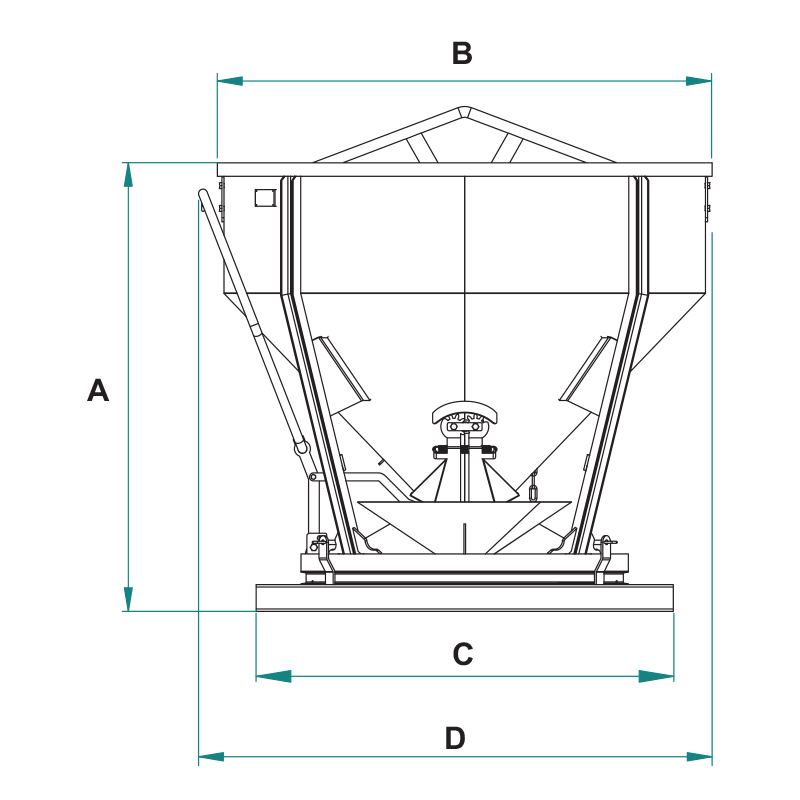

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-40ST | 1040 | 400 | 160 | 1230 | 1050 | 875 | 1200 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-50ST | 1300 | 500 | 165 | 1340 | 1050 | 875 | 1200 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-80ST | 2080 | 800 | 230 | 1590 | 1250 | 930 | 1445 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-99ST | 2600 | 1000 | 245 | 1770 | 1250 | 930 | 1450 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-40ST | CT-40ST | 1040 | 400 | 160 | 1230 | 1050 | 875 | 1200 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-50ST | CT-50ST | 1300 | 500 | 165 | 1340 | 1050 | 875 | 1200 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-80ST | CT-80ST | 2080 | 800 | 230 | 1590 | 1250 | 930 | 1445 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CT-99ST | CT-99ST | 2600 | 1000 | 245 | 1770 | 1250 | 930 | 1450 | 1 |
