CL-VConical concrete bucket with central and side discharge with double wheel opening
The CL-V model is a multipurpose conical bucket designed for quickly and precisely pouring concrete using a construction crane. It can be used with a bottom discharge for large quantities of concrete or with a side discharge for more accurate placement. The bucket is equipped with a bi-valve at the bottom, and the opening is manually operated by rotating the appropriate wheels. The versatile and easily maneuverable design ensures high efficiency of use. Available in various sizes and capacities, as indicated in the table below, the CL-V model can be customized to meet the specific needs of your project. All our buckets are built and tested according to the rigorous standards of UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10027, and UNI EN 10204, ensuring the highest quality and
Application sectors:
Construction
Finish Type:
Painted
Versions available

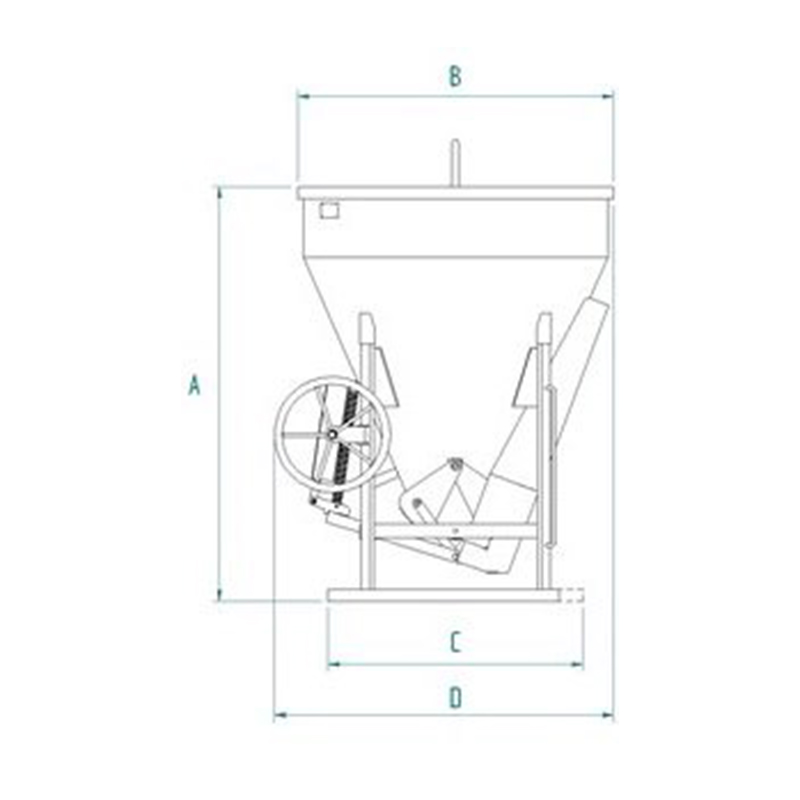

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-50V | 1300 | 500 | 200 | 1500 | 1090 | 1090 | 1355 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-75V | 1950 | 750 | 205 | 1617 | 1350 | 1090 | 1426 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-99V | 2600 | 1000 | 215 | 1766 | 1350 | 1090 | 1426 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-150V | 3900 | 1500 | 390 | 2100 | 1584 | 1293 | 1637 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-200V | 5200 | 2000 | 420 | 2380 | 1584 | 1293 | 1637 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-50V | CL-50V | 1300 | 500 | 200 | 1500 | 1090 | 1090 | 1355 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-75V | CL-75V | 1950 | 750 | 205 | 1617 | 1350 | 1090 | 1426 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-99V | CL-99V | 2600 | 1000 | 215 | 1766 | 1350 | 1090 | 1426 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-150V | CL-150V | 3900 | 1500 | 390 | 2100 | 1584 | 1293 | 1637 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| CL-200V | CL-200V | 5200 | 2000 | 420 | 2380 | 1584 | 1293 | 1637 | 1 |
