Conical concrete bucket for batching plant
CL-BConical concrete bucket with central and side discharge for batching plant
The CL-B concrete bucket model is a versatile and highly efficient solution, specifically designed for use with batching plants. Its key features include a lever-operated opening that allows precise dosing of concrete, a side discharge chute for optimal pouring direction, and a round base, designed to fit perfectly into the plant's hopper.
Available in different capacities, as listed in the table below, the CL-B model is designed to meet various site needs. A galvanized version is also available, ensuring greater resistance to corrosion and longer product life. We also offer the option to customize the bucket according to specific customer requirements, making it perfectly suited to the characteristics of the plant.
Each bucket is manufactured and tested in accordance with

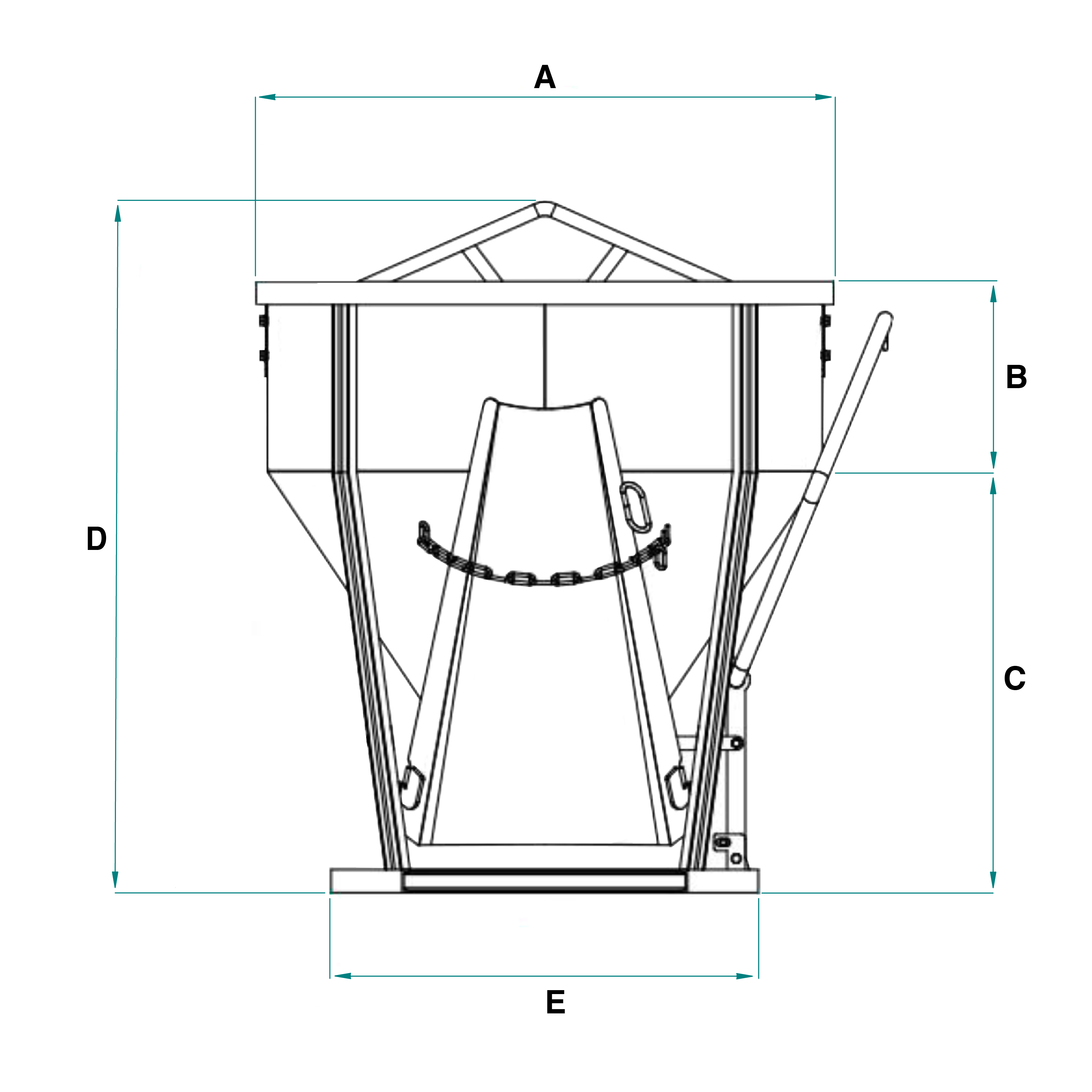

Construction
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-40B | 400 | 1050 | 260 | 570 | 980 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| CL-60B | 600 | 1065 | 550 | 600 | 1240 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| CL-80B | 800 | 1240 | 500 | 710 | 1420 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| CL-130B | 1300 | 1250 | 900 | 700 | 1820 | 800 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| CL-150B | 1500 | 1250 | 1150 | 700 | 2050 | 800 | 1 |
