Concrete buckets
Concrete forklift skip with levered opening
BOT-GALOval concrete bucket with side discharge and large lever opening
The BOT-GAL model is an oval-shaped concrete bucket specially designed to excel in concrete pouring operations, particularly in the prefabrication sector. Featuring a side discharge with guillotine closure and a wide opening controlled by two lateral levers, the BOT-GAL ensures optimal control of concrete during the discharge process, ensuring efficient and safe flow. The forkable base allows quick and safe lifting via forklift or telehandler, contributing to increased productivity and reduced downtime. Crane lifting is facilitated through four lifting points to ensure stability. The finish is powder-coated in RAL 1003 color. Available in various sizes and capacities, as specified in the table below, the BOT-GAL model can be customized to fit the specific needs of your project. All our
Application sectors:
Construction
Finish Type:
Painted
Versions available

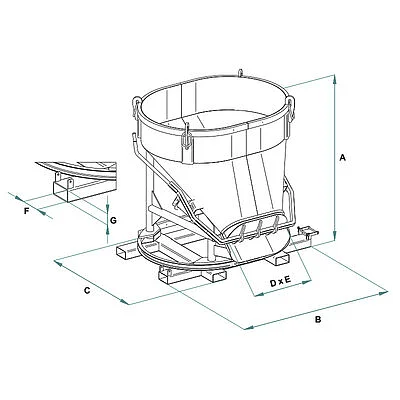

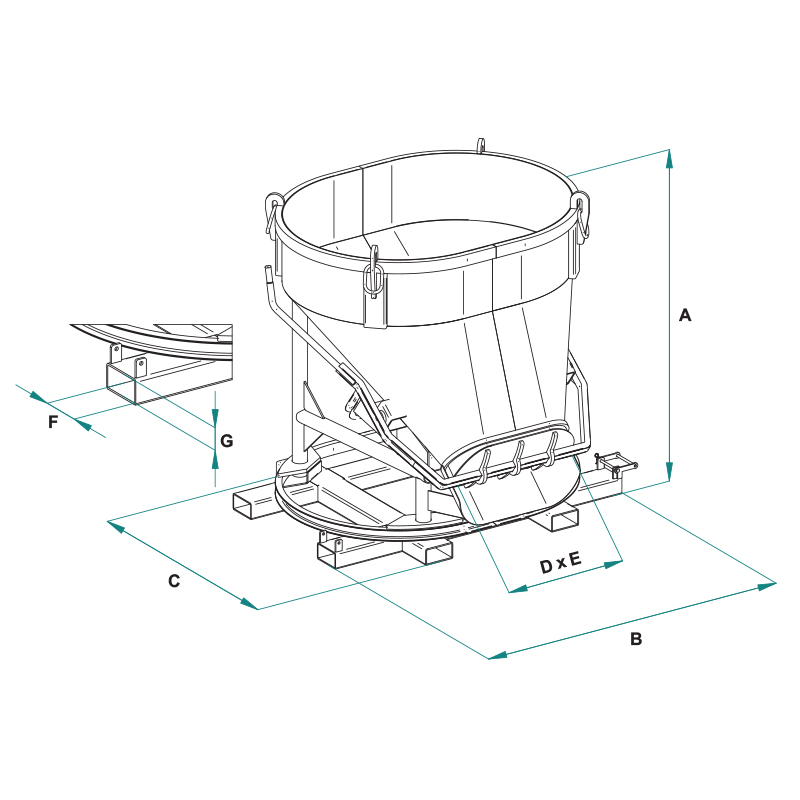

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOT-50GAL | 1300 | 500 | 215 | 1285 | 1421 | 1150 | 753 | 373 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-75GAL | 1950 | 750 | 310 | 1450 | 1519 | 1200 | 988 | 388 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-99GAL | 2600 | 1000 | 350 | 1685 | 1519 | 1200 | 988 | 399 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-150GAL | 3900 | 1500 | 470 | 1770 | 1479 | 1330 | 920 | 420 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-200GAL | 5200 | 2000 | 530 | 2050 | 1739 | 1453 | 920 | 420 | 195 | 80 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension H (mm) | Dimension I (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (rpm) | Blade Ø (mm) | Max. cutting H (mm) | Engine power (cv) | Blade diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Min. capacity (kg) | Max. capacity (kg) | Min. length (mm) | Max. length (mm) | No. of elements (mm) | Span (mm) | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOT-50GAL | BOT-50GAL | 1300 | 500 | 215 | 1285 | 1421 | 1150 | 753 | 373 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-75GAL | BOT-75GAL | 1950 | 750 | 310 | 1450 | 1519 | 1200 | 988 | 388 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-99GAL | BOT-99GAL | 2600 | 1000 | 350 | 1685 | 1519 | 1200 | 988 | 399 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-150GAL | BOT-150GAL | 3900 | 1500 | 470 | 1770 | 1479 | 1330 | 920 | 420 | 195 | 80 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BOT-200GAL | BOT-200GAL | 5200 | 2000 | 530 | 2050 | 1739 | 1453 | 920 | 420 | 195 | 80 | 1 |
