BOT-GAVOval concrete bucket with side discharge and large wheel opening
The BOT-GAV model is an oval-shaped concrete bucket specifically designed to excel in concrete pouring operations, especially in the prefabrication sector. It features a side discharge with a guillotine closure and a wide opening controlled by two lateral levers, ensuring optimal control of concrete during the discharge process for efficient and safe flow. The forkable base allows quick and safe lifting via forklift or telehandler, enhancing productivity and reducing downtime. Crane lifting is facilitated through four lifting points to ensure stability. The finish is powder-coated in RAL 1003 color. Available in various sizes and capacities, as specified in the table below, the BOT-GAV model can be customized to meet the specific requirements of your project.
Application sectors:
Construction
Finish Type:
Painted
Versions available

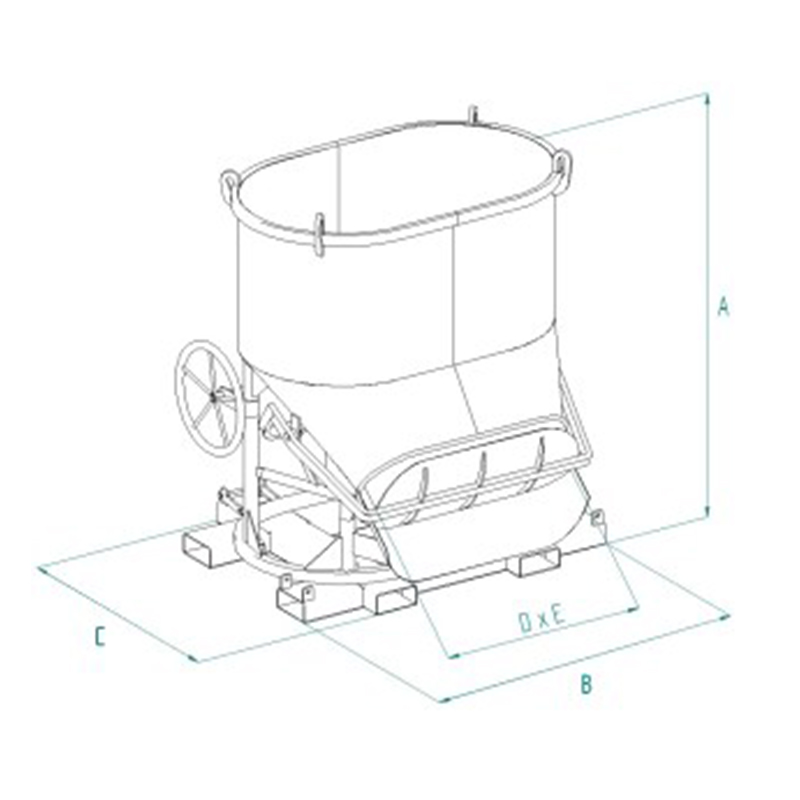

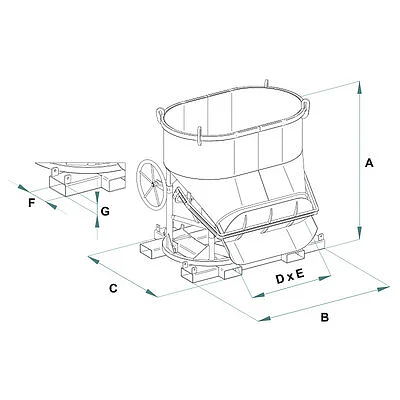

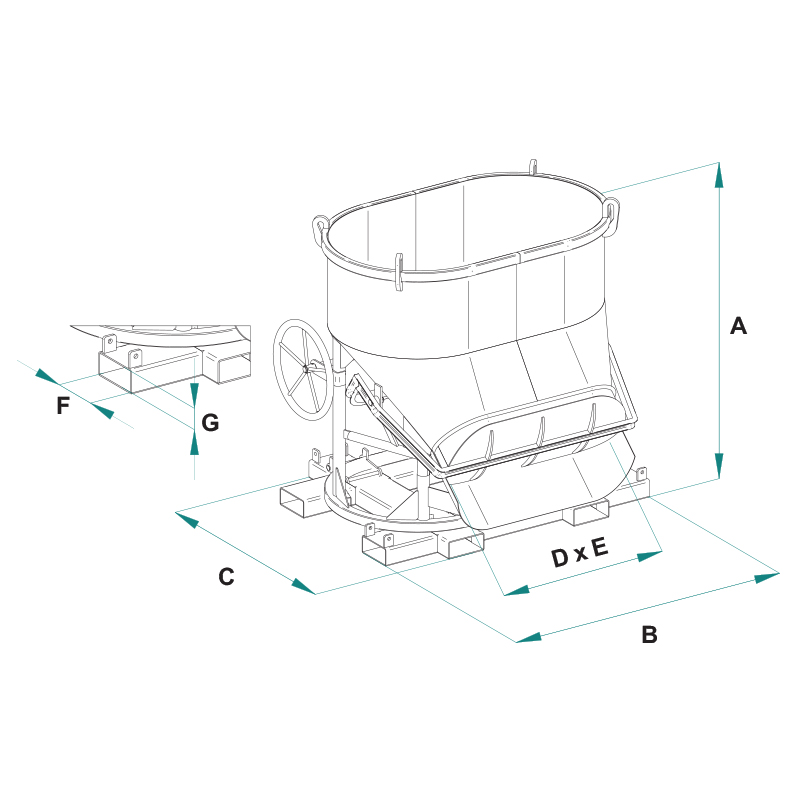

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOT-50GAV | 1300 | 500 | 245 | 1285 | 1421 | 1150 | 753x373 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-75GAV | 1950 | 750 | 335 | 1450 | 1519 | 1200 | 988x388 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-99GAV | 2600 | 1000 | 360 | 1685 | 1519 | 1200 | 988x399 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-150GAV | 3900 | 1500 | 480 | 1770 | 1479 | 1330 | 920x420 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-200GAV | 5200 | 2000 | 545 | 2050 | 1739 | 1453 | 920x420 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOT-50GAV | BOT-50GAV | 1300 | 500 | 245 | 1285 | 1421 | 1150 | 753x373 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-75GAV | BOT-75GAV | 1950 | 750 | 335 | 1450 | 1519 | 1200 | 988x388 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-99GAV | BOT-99GAV | 2600 | 1000 | 360 | 1685 | 1519 | 1200 | 988x399 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-150GAV | BOT-150GAV | 3900 | 1500 | 480 | 1770 | 1479 | 1330 | 920x420 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BOT-200GAV | BOT-200GAV | 5200 | 2000 | 545 | 2050 | 1739 | 1453 | 920x420 | 1 |
