Concrete buckets

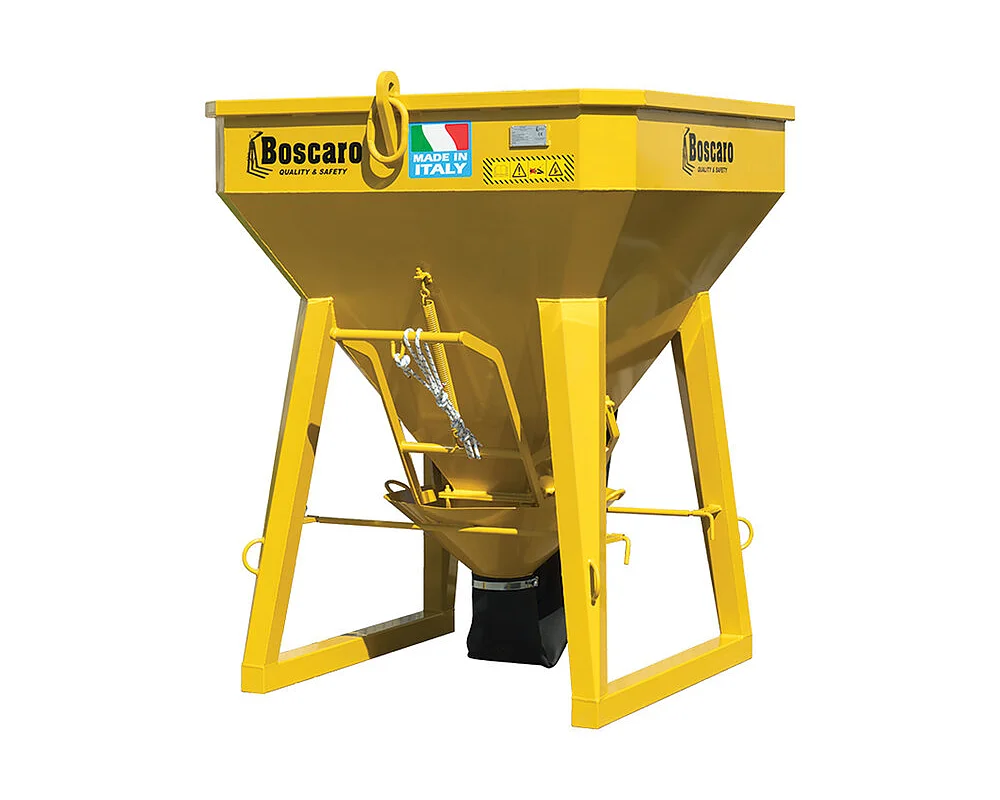

Concrete column skip with rubber hose, levered opening, and lateral lifting points
BCE-AOctagonal concrete bucket with rubber hose, lever opening, and lifting rings
The octagonal concrete bucket with lever opening and rubber hose, model BCE-A, is the ideal choice for precise and reliable pours in the most demanding construction sites with intensive use. Its design, tailored to the needs of the most challenging construction sites, makes it indispensable for accurately pouring large quantities of concrete into formwork, pillars, or slabs, avoiding potential structural problems caused by pouring errors. The bucket is equipped with a guillotine valve operated by a lever. The presence of a spring allows for automatic closure of the discharge, while the rope enables managing and partially opening the bucket valve even at height. The two-meter-long rubber hose, with a diameter of 200 mm, ensures a controlled and precise flow of concrete during the pour.
Application sectors:
Construction
Finish Type:
Painted
Versions available

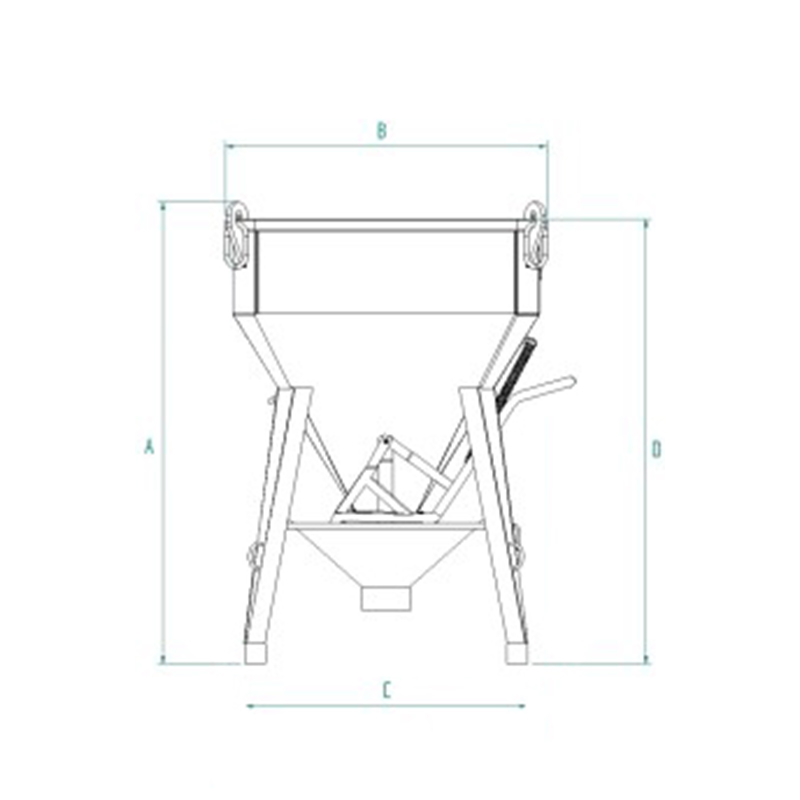

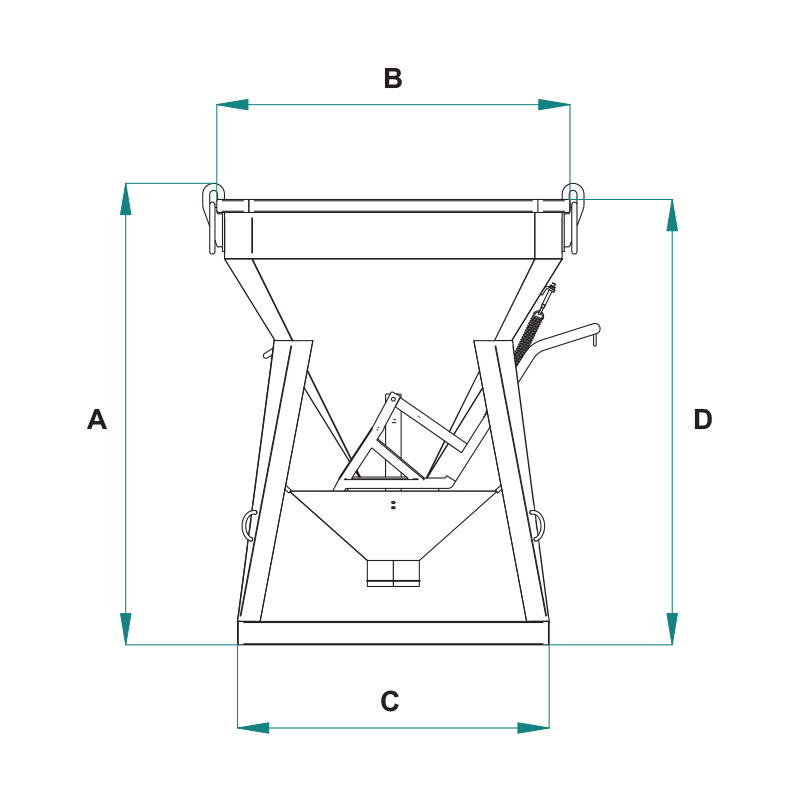

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCE-40A | 1040 | 400 | 185 | 1520 | 1090 | 1000 | 1450 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-50A | 1300 | 500 | 205 | 1575 | 1081 | 1000 | 1505 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-60A | 1560 | 600 | 215 | 1720 | 1090 | 1000 | 1650 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-80A | 2080 | 800 | 250 | 1720 | 1360 | 1200 | 1650 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-99A | 2600 | 1000 | 275 | 1782 | 1360 | 1200 | 1712 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-125A | 3250 | 1250 | 325 | 1970 | 1360 | 1200 | 1900 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-150A | 3900 | 1500 | 330 | 1995 | 1560 | 1300 | 1925 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-175A | 4550 | 1750 | 2091 | 1560 | 1300 | 2020 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-200A | 5200 | 2000 | 370 | 2205 | 1560 | 1300 | 2135 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-250A | 6500 | 2500 | 540 | 1997 | 1780 | 1780 | 1927 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-300A | 7800 | 3000 | 650 | 2172 | 1780 | 1780 | 2102 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCE-40A | BCE-40A | 1040 | 400 | 185 | 1520 | 1090 | 1000 | 1450 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-50A | BCE-50A | 1300 | 500 | 205 | 1575 | 1081 | 1000 | 1505 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-60A | BCE-60A | 1560 | 600 | 215 | 1720 | 1090 | 1000 | 1650 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-80A | BCE-80A | 2080 | 800 | 250 | 1720 | 1360 | 1200 | 1650 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-99A | BCE-99A | 2600 | 1000 | 275 | 1782 | 1360 | 1200 | 1712 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-125A | BCE-125A | 3250 | 1250 | 325 | 1970 | 1360 | 1200 | 1900 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-150A | BCE-150A | 3900 | 1500 | 330 | 1995 | 1560 | 1300 | 1925 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-175A | BCE-175A | 4550 | 1750 | 2091 | 1560 | 1300 | 2020 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-200A | BCE-200A | 5200 | 2000 | 370 | 2205 | 1560 | 1300 | 2135 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-250A | BCE-250A | 6500 | 2500 | 540 | 1997 | 1780 | 1780 | 1927 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| BCE-300A | BCE-300A | 7800 | 3000 | 650 | 2172 | 1780 | 1780 | 2102 | 1 |
