Concrete buckets

Concrete column skip with rubber hose and levered opening

BCE

Octagonal concrete bucket with rubber hose and lever opening

The octagonal concrete bucket with lever opening and rubber hose, model BCE, is the ideal choice for precise and reliable pouring in the most demanding construction sites with intensive use. Its design, targeted to meet the needs of the most challenging construction sites, makes it indispensable for accurately pouring large quantities of concrete into formwork, pillars, or slabs, avoiding potential structural problems caused by pouring errors. The bucket is equipped with a guillotine valve operated by a lever. The presence of a spring allows for automatic closure of the discharge, while the rope enables managing and partially opening the bucket valve even at height. The two-meter-long rubber hose, with a diameter of 200 mm, ensures a controlled and precise flow of concrete during the pour.
Application sectors:
Finish Type:
Painted
Galvanized
Versions available

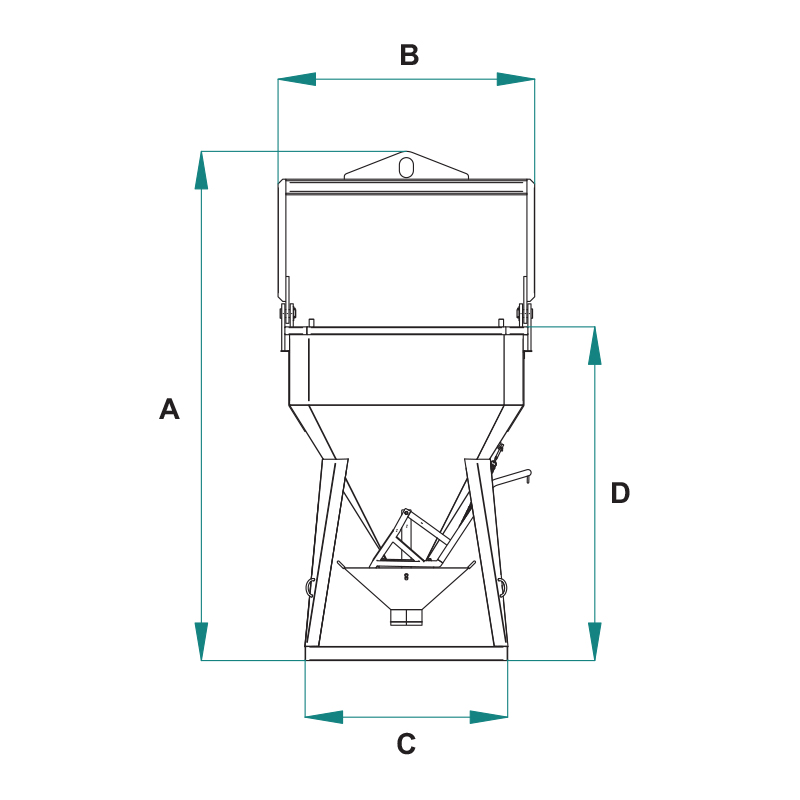

Code Image Active variant image Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Pipe Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diameter (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. pipe length (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name No. of legs No. of people Pubblica nel sito web Products Custom price lists Request Info
BCE-40 1040 400 220 2287 1128 1000 1405 1
BCE-50 1300 500 230 2387 1128 1000 1505 1
BCE-60 1560 600 250 2487 1128 1000 1605 1
BCE-80 2080 800 315 2710 1447 1200 1615 1
BCE-99 2600 1000 330 2807 1447 1200 1712 1
BCE-125 3250 1250 395 2908 1447 1200 1885 1
BCE-150 3900 1500 410 3048 1647 1300 1925 1
BCE-175 4550 1750 425 1
BCE-200 5200 2000 520 3290 1647 1300 2135 1
BCE-250 6500 2500 620 2008 1780 1780 1927 1
BCE-300 7800 3000 655 2183 1780 1780 2102 1
Cod. Code Image Active variant image Capacity (kg) Capacity (L) Weight (kg) Adjustment (mm) Internal Pipe Ø (mm) Max opening (mm) Dimension A (mm) Dimension B (mm) Dimension C (mm) Dimension D (mm) Dimension E (mm) Dimension F (mm) Dimension G (mm) Dimension I (mm) Dimension H (mm) Dimension L (mm) Dimension M (mm) Length (mm) Width (mm) Height (mm) Motor Frequency (Hz) Speed (giri/min) Blade Ø (mm) H Max Cut (mm) Engine power (cv) Disc diameter (mm) Power supply (V) Useful height (mm) Total height (mm) Base diameter (mm) Diameter (mm) No. of 200L drums No. of 1000L tanks Max load (daN) Loading opening (mm) Max liquid temperature (°C) Max. pipe length (mm) Max. length (mm) Cutting width (mm) H Cut (mm) Minimal cut H Wheels (mm) Technical data notes Image Name No. of legs No. of people Pubblica nel sito web Products Custom price lists Request Info
BCE-40 BCE-40 1040 400 220 2287 1128 1000 1405 1
BCE-50 BCE-50 1300 500 230 2387 1128 1000 1505 1
BCE-60 BCE-60 1560 600 250 2487 1128 1000 1605 1
BCE-80 BCE-80 2080 800 315 2710 1447 1200 1615 1
BCE-99 BCE-99 2600 1000 330 2807 1447 1200 1712 1
BCE-125 BCE-125 3250 1250 395 2908 1447 1200 1885 1
BCE-150 BCE-150 3900 1500 410 3048 1647 1300 1925 1
BCE-175 BCE-175 4550 1750 425 1
BCE-200 BCE-200 5200 2000 520 3290 1647 1300 2135 1
BCE-250 BCE-250 6500 2500 620 2008 1780 1780 1927 1
BCE-300 BCE-300 7800 3000 655 2183 1780 1780 2102 1
