Concrete buckets
Concrete bucket with side discharge levered opening
BFConcrete bucket with side discharge and lever opening
Introducing the BF model, a side discharge concrete bucket for cranes, a versatile option designed to meet the specific needs of your construction projects. Equipped with a side discharge and lever-operated opening, the BF model offers precise control during the concrete discharge process thanks to a guillotine closure. You can request the BF model with a base equipped for lifting with a forklift or telehandler, model BF-ST, or request the application of a rubber hose, model BF-T. Available in various sizes and capacities, as indicated in the table below, the BF model can be customized to meet the specific needs of your project. All our buckets are built and tested according to the rigorous standards of UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10027, and UNI EN 10204, ensuring the
Application sectors:
Construction
Finish Type:
Painted
Versions available

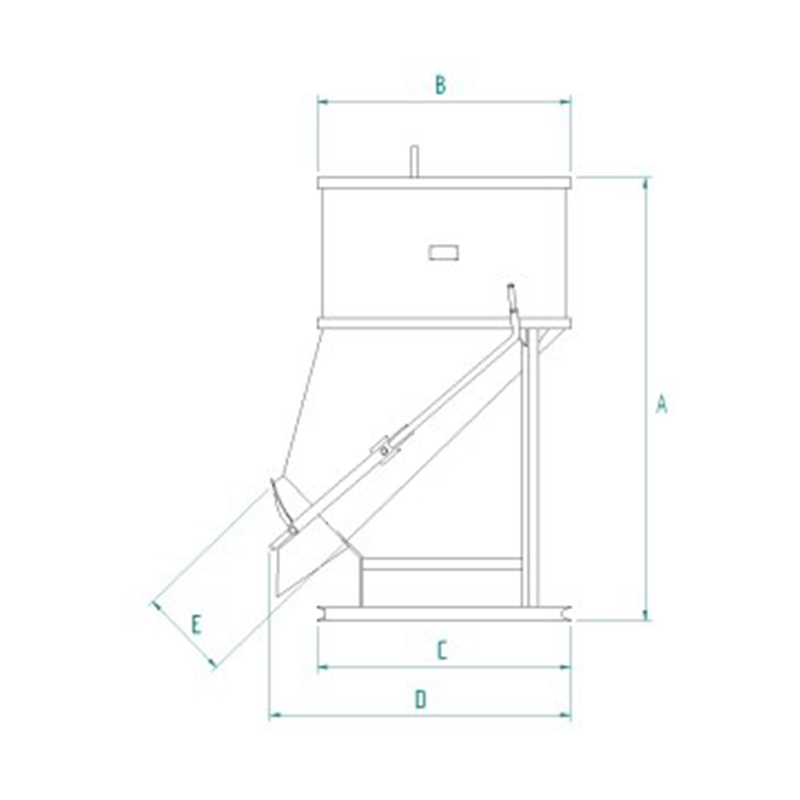

| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-30 | 780 | 300 | 100 | 1185 | 935 | 935 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-40 | 1040 | 400 | 110 | 1350 | 935 | 935 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-50 | 1300 | 500 | 115 | 1510 | 935 | 935 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-75 | 1950 | 750 | 205 | 1781 | 1170 | 1170 | 1390 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-99 | 2600 | 1000 | 220 | 2041 | 1170 | 1170 | 1390 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-150 | 3900 | 1500 | 420 | 2025 | 1492 | 1408 | 1600 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-200 | 5200 | 2000 | 480 | 2375 | 1492 | 1408 | 1600 | 420 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF-30 | BF-30 | 780 | 300 | 100 | 1185 | 935 | 935 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-40 | BF-40 | 1040 | 400 | 110 | 1350 | 935 | 935 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-50 | BF-50 | 1300 | 500 | 115 | 1510 | 935 | 935 | 1110 | 300 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-75 | BF-75 | 1950 | 750 | 205 | 1781 | 1170 | 1170 | 1390 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-99 | BF-99 | 2600 | 1000 | 220 | 2041 | 1170 | 1170 | 1390 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-150 | BF-150 | 3900 | 1500 | 420 | 2025 | 1492 | 1408 | 1600 | 420 | 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BF-200 | BF-200 | 5200 | 2000 | 480 | 2375 | 1492 | 1408 | 1600 | 420 | 1 |
