Concrete buckets
Concrete bucket with rubber hose geared opening and operator platform

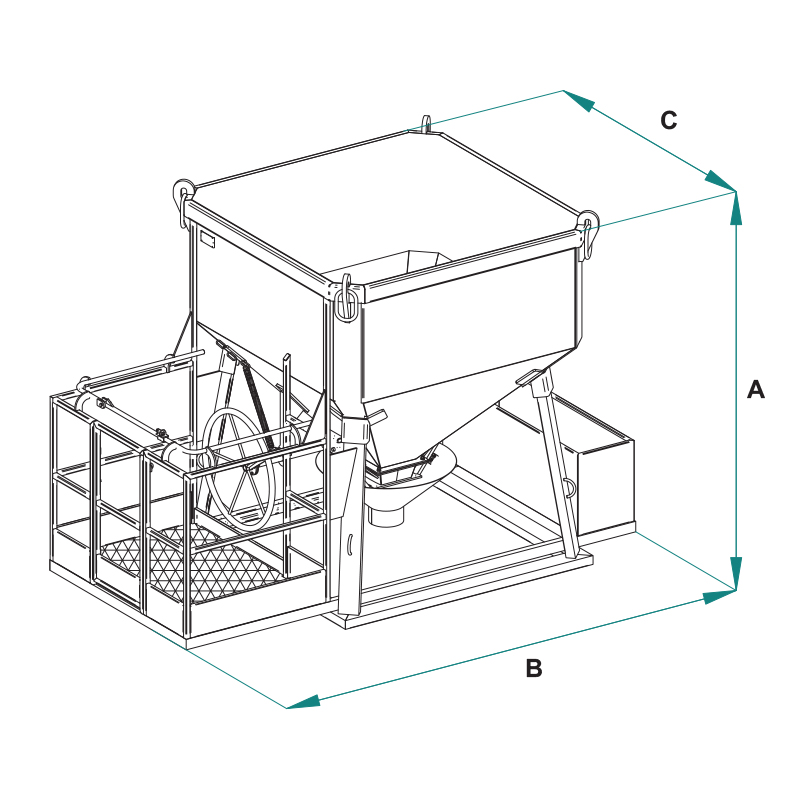

BCE-VPOctagonal concrete bucket with rubber hose, wheel opening, and operator platform
The BCE-VP model is designed with high standards to ensure reliable and versatile performance, meeting the specific needs of large-scale construction sites. Equipped with a central discharge featuring a rubber hose and valve opening operated by handwheel with automatic spring closure, this model is highly functional for pouring into formworks. The platform directly connected to the base of the bucket ensures a smoother and safer working experience, allowing the operator to position closely to the pouring area. The bucket features lifting with a four-legs chain sling and mounts a 2-meter long, 200 mm diameter rubber hose, also available in different sizes and lengths upon request to adapt to your project's specific needs. The BCE-VP model is offered in various capacities, as indicated in
Application sectors:
Construction
Finish Type:
Painted
Versions available
| Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCE-80VP | 2080 | 800 | 580 | 1615 | 2640 | 1360 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-99VP | 2600 | 1000 | 660 | 1712 | 2640 | 1360 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-125VP | 3250 | 1250 | 685 | 1885 | 2640 | 1360 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-150VP | 3900 | 1500 | 710 | 1925 | 2795 | 1560 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-175VP | 4550 | 1750 | 2091 | 2795 | 1560 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BCE-200VP | 5200 | 2000 | 820 | 2135 | 2795 | 1560 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-250VP | 6500 | 2500 | 870 | 2008 | 3085 | 1780 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-300VP | 7800 | 3000 | 990 | 2183 | 3085 | 1780 | 1 |
| Cod. | Code | Image | Active variant image | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diameter (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | No. of legs | No. of people | Pubblica nel sito web | Products | Custom price lists | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCE-80VP | BCE-80VP | 2080 | 800 | 580 | 1615 | 2640 | 1360 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-99VP | BCE-99VP | 2600 | 1000 | 660 | 1712 | 2640 | 1360 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-125VP | BCE-125VP | 3250 | 1250 | 685 | 1885 | 2640 | 1360 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-150VP | BCE-150VP | 3900 | 1500 | 710 | 1925 | 2795 | 1560 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-175VP | BCE-175VP | 4550 | 1750 | 2091 | 2795 | 1560 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||
| BCE-200VP | BCE-200VP | 5200 | 2000 | 820 | 2135 | 2795 | 1560 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-250VP | BCE-250VP | 6500 | 2500 | 870 | 2008 | 3085 | 1780 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||
| BCE-300VP | BCE-300VP | 7800 | 3000 | 990 | 2183 | 3085 | 1780 | 1 |
