Boat skips
Chain-operated discharge boat skip

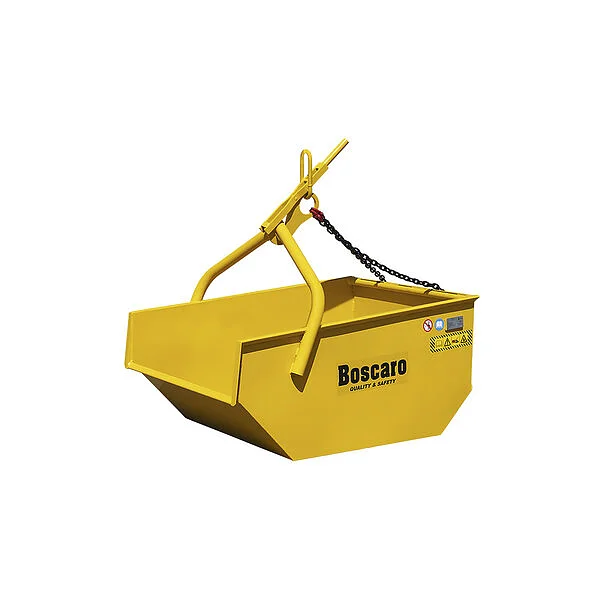

A-CSelf dumping bin with fixed arm and 2 legs chain sling
This self-dumping bin for cranes is designed with a 2-arm chain welded to the back and a fixed lifting arm. The rear chain ensures efficient material tipping, while the fixed arch guarantees stability during lifting.
Application sectors:
Construction
Finish Type:
Painted
Versions available

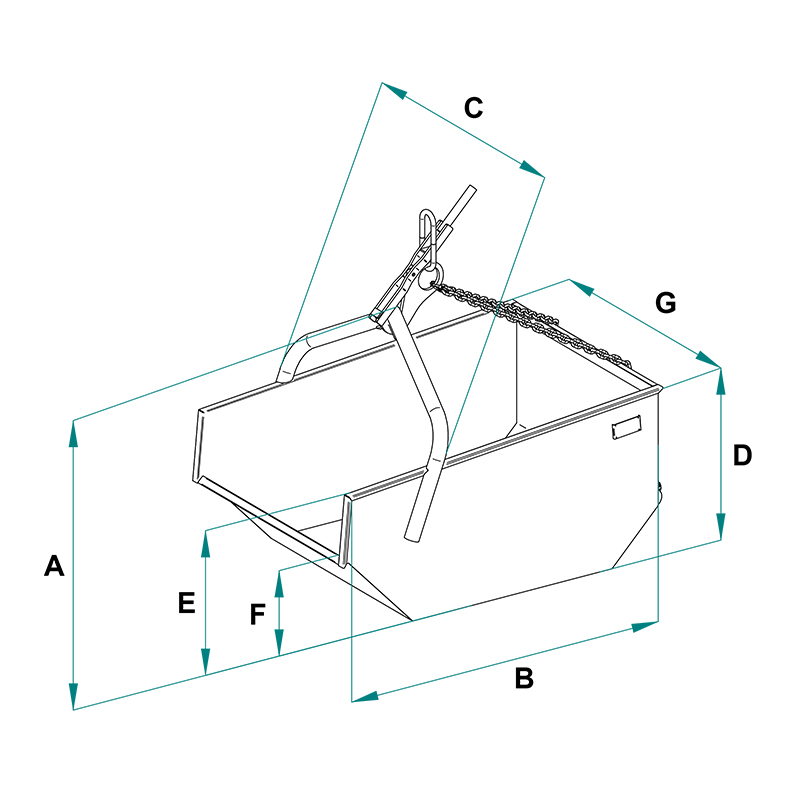

| Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-30C | 600 | 300 | 65 | 840 | 1200 | 950 | 540 | 450 | 260 | 780 | ||||||||||||||||||||||||||||||||||||||||
| A-50C | 1000 | 500 | 80 | 980 | 1300 | 1050 | 600 | 490 | 270 | 980 | ||||||||||||||||||||||||||||||||||||||||
| A-75C | 1500 | 750 | 120 | 1100 | 1500 | 1170 | 740 | 620 | 340 | 1080 | ||||||||||||||||||||||||||||||||||||||||
| A-99C | 2000 | 1000 | 160 | 1350 | 1750 | 1350 | 905 | 660 | 385 | 1280 | ||||||||||||||||||||||||||||||||||||||||
| A-150C | 3000 | 1500 | 210 | 1450 | 1750 | 1400 | 830 | 830 | 650 | 1330 |
| Cod. | Products | Code | Image | Active variant image | Custom price lists | Capacity (kg) | Capacity (L) | Weight (kg) | Adjustment (mm) | Internal Pipe Ø (mm) | Max opening (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Dimension I (mm) | Dimension H (mm) | Dimension L (mm) | Dimension M (mm) | Length (mm) | Width (mm) | Height (mm) | Motor | Frequency (Hz) | Speed (giri/min) | Blade Ø (mm) | H Max Cut (mm) | Engine power (cv) | Disc diameter (mm) | Power supply (V) | Useful height (mm) | Total height (mm) | Base diameter (mm) | Diametre (mm) | No. of 200L drums | No. of 1000L tanks | Max load (daN) | Loading opening (mm) | Max liquid temperature (°C) | Max. pipe length (mm) | Max. length (mm) | Cutting width (mm) | H Cut (mm) | Minimal cut | H Wheels (mm) | Technical data notes | Image Name | Request Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-30C | A-30C | 600 | 300 | 65 | 840 | 1200 | 950 | 540 | 450 | 260 | 780 | ||||||||||||||||||||||||||||||||||||||||
| A-50C | A-50C | 1000 | 500 | 80 | 980 | 1300 | 1050 | 600 | 490 | 270 | 980 | ||||||||||||||||||||||||||||||||||||||||
| A-75C | A-75C | 1500 | 750 | 120 | 1100 | 1500 | 1170 | 740 | 620 | 340 | 1080 | ||||||||||||||||||||||||||||||||||||||||
| A-99C | A-99C | 2000 | 1000 | 160 | 1350 | 1750 | 1350 | 905 | 660 | 385 | 1280 | ||||||||||||||||||||||||||||||||||||||||
| A-150C | A-150C | 3000 | 1500 | 210 | 1450 | 1750 | 1400 | 830 | 830 | 650 | 1330 |
